Fingerswitch activation APC 2 + VIO D
This test is performed in different ways depending on whether the APC 2
is connected to a VIO D or a VIO S electrosurgical unit.
Testing and measuring equipment
Test on the APC socket (Activa-
tion CUT/COAG, ReMode)
Test setup

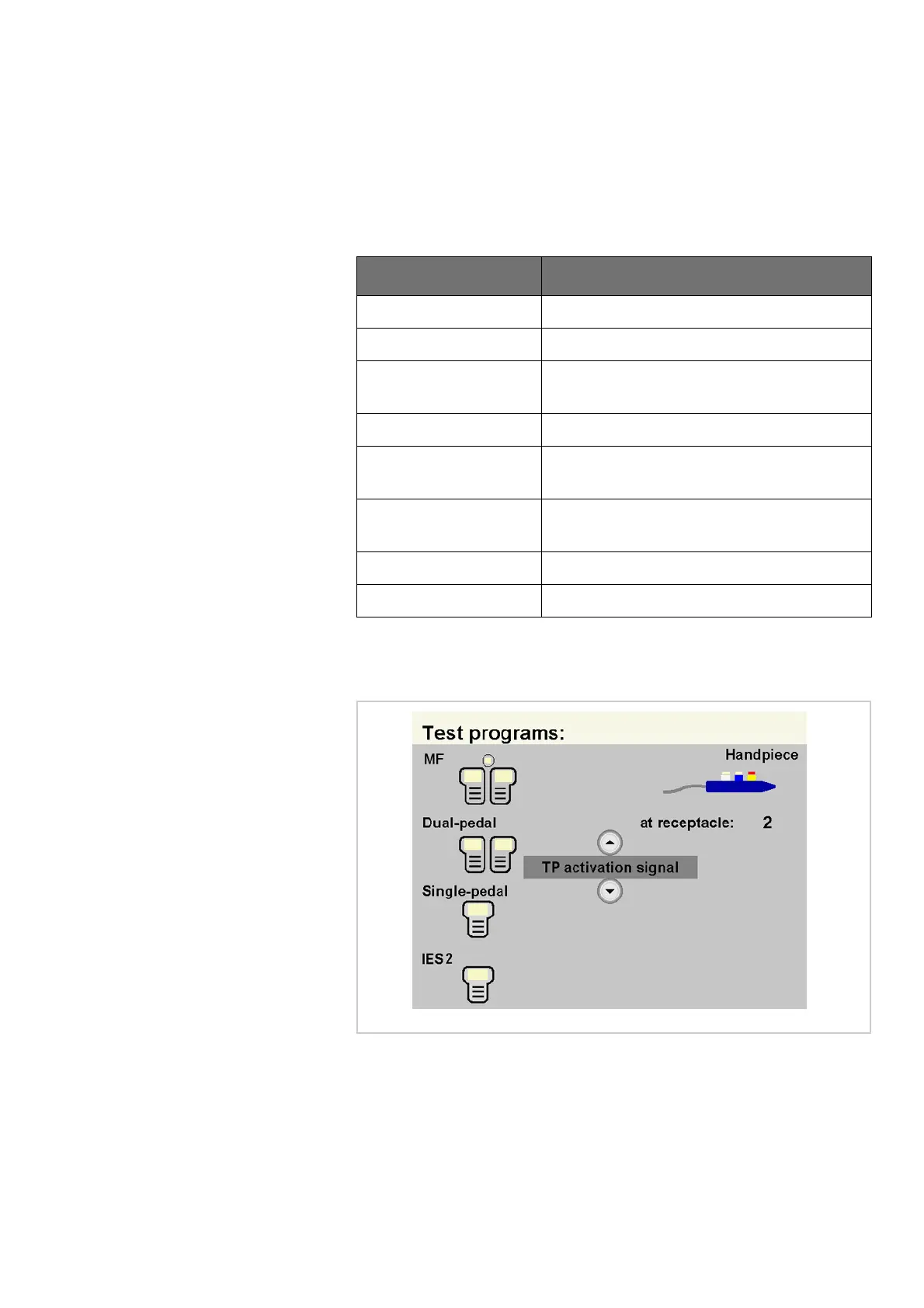

Fig. 10-2
• The test specimen is connected to the power supply via a VIO D HF
surgical unit.
• The test program "TP activation signal" is selected.
Erbe Art. No. Description
20132-200 VIO APC handle
20132-043 APC handle
– Metal panel with a viscose sponge soaked in
a 0.9
% saline solution (as return electrode)
20132-031 APC applicator
20132-221 FiAPC 2200 A probe (only if a FiAPC socket is
available)
20189-303 Two pedal footswitch with ReMode
(only if a FiAPC socket is available)
20134-XXX
1
1. Depending on the bottle connection.
Pressure regulator
– Argon gas bottle
