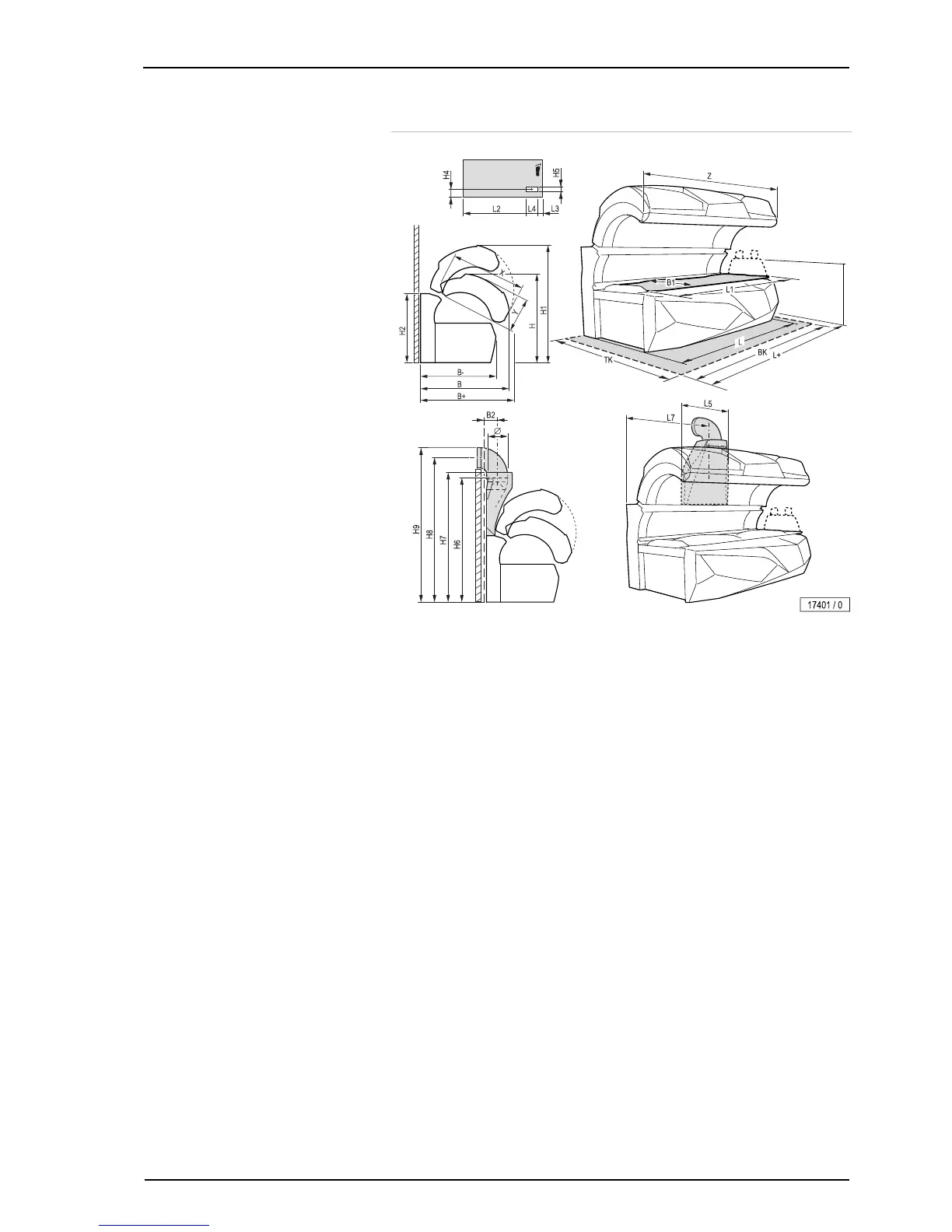

5.2 Dimensions
AFFINITY 700/
AFFINITY 700 AC PLUS
AFFINITY 900 AFFINITY 990
B + = 1378 mm 1479 mm 1479 mm
B = 1328 mm 1439 mm 1439 mm
B - = 1309 mm 1400 mm 1400 mm
B 1 = 800 mm 900 mm 900 mm
B 2 = 188 mm 188 mm 188 mm
L + = 2350 mm 2350 mm 2350 mm
L = 2260 mm 2260 mm 2260 mm
L 1 = 2000 mm 2000 mm 2000 mm
L 2 = 1730 mm 1730 mm 1730 mm
L 3 = 238 mm 238 mm 238 mm
L 4 = 265 mm 265 mm 265 mm
L 5 = 867 mm 867 mm 867 mm
L 6 (L7) = 1116 mm 1116 mm 1116 mm
H = 1410 mm 1465 mm 1465 mm
H 1 = 1745 mm 1832 mm 1832 mm
H 2 = 1078 mm 1078 mm 1078 mm
H 4 = 400 mm 400 mm 400 mm
