5.4 Replacing and inserting wire
● Disconnect the pressure locking device by folding it forward, slide the
pressure roller up.
● If necessary, roll back the wire and remove the wire bobbin.
● Straighten out 10-20 cm of the new wire. File away burrs and sharp edges
from the end of the wire before inserting it into the wire straightener & feed
unit.
● Make sure that the wire goes properly into the feed roller's track and into
the outlet nozzle & wire straightener’s grooves.
● Secure the pressure locking device & tighten the wire straightener slightly.

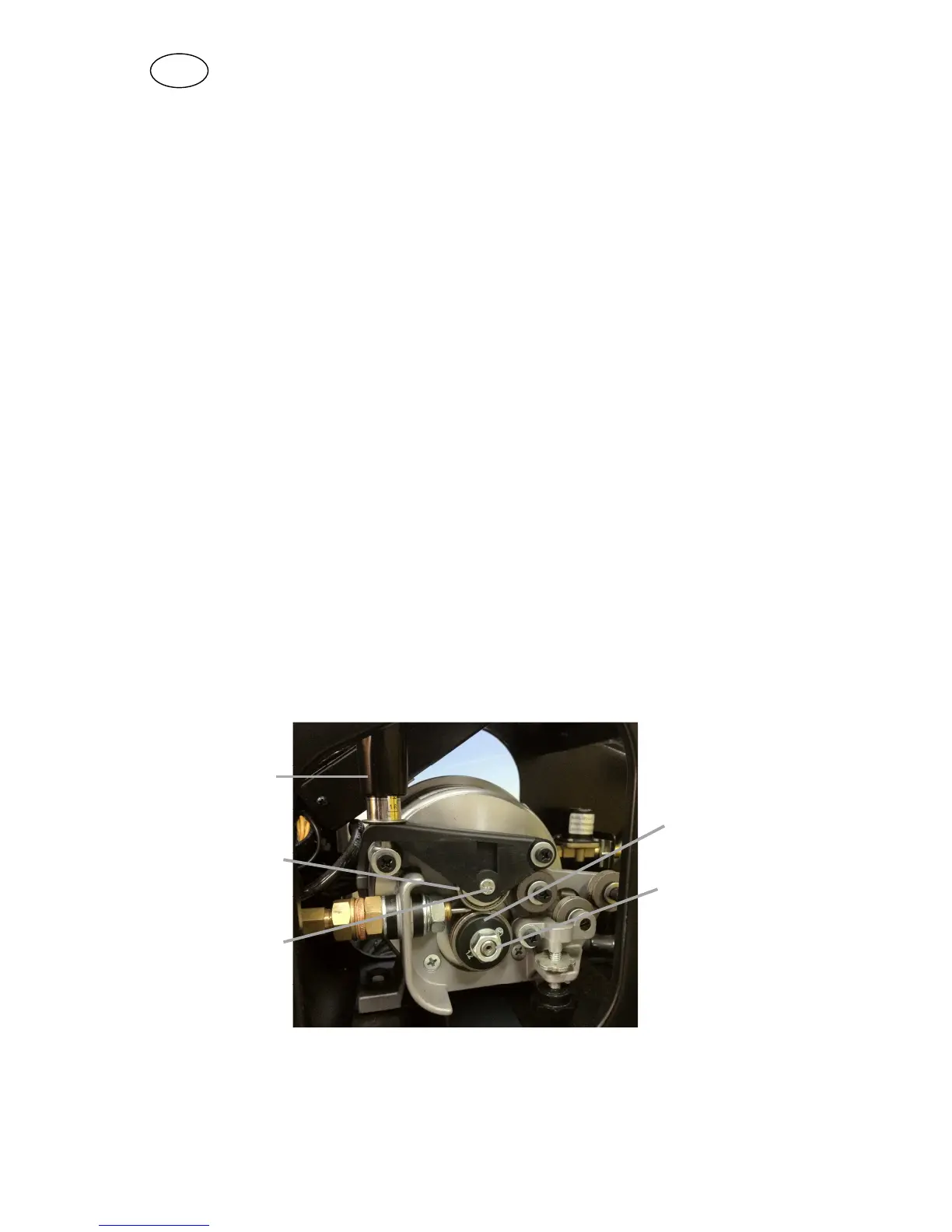

5.5 Changing rollers
● Disconnect the pressure locking device (1) by folding it forward.
● Disconnect the pressure roller (2) by turning the axle (3) counter-clockwise
using a screwdriver and pulling out the axle.
The pressure roller is disconnected.
● Disconnect the feed roller (4) by unscrewing the nut (5) and pulling out the
rollers. (Take note of the woodruff key that is used to turn the feed roller)
● During installation, repeat the above in reverse order.
Choice of track in the feed roller
Turn the feed roller with the dimensioning mark for the required track towards you.
