5 OPERATION
0463 815 101 - 25 - © ESAB AB 2021

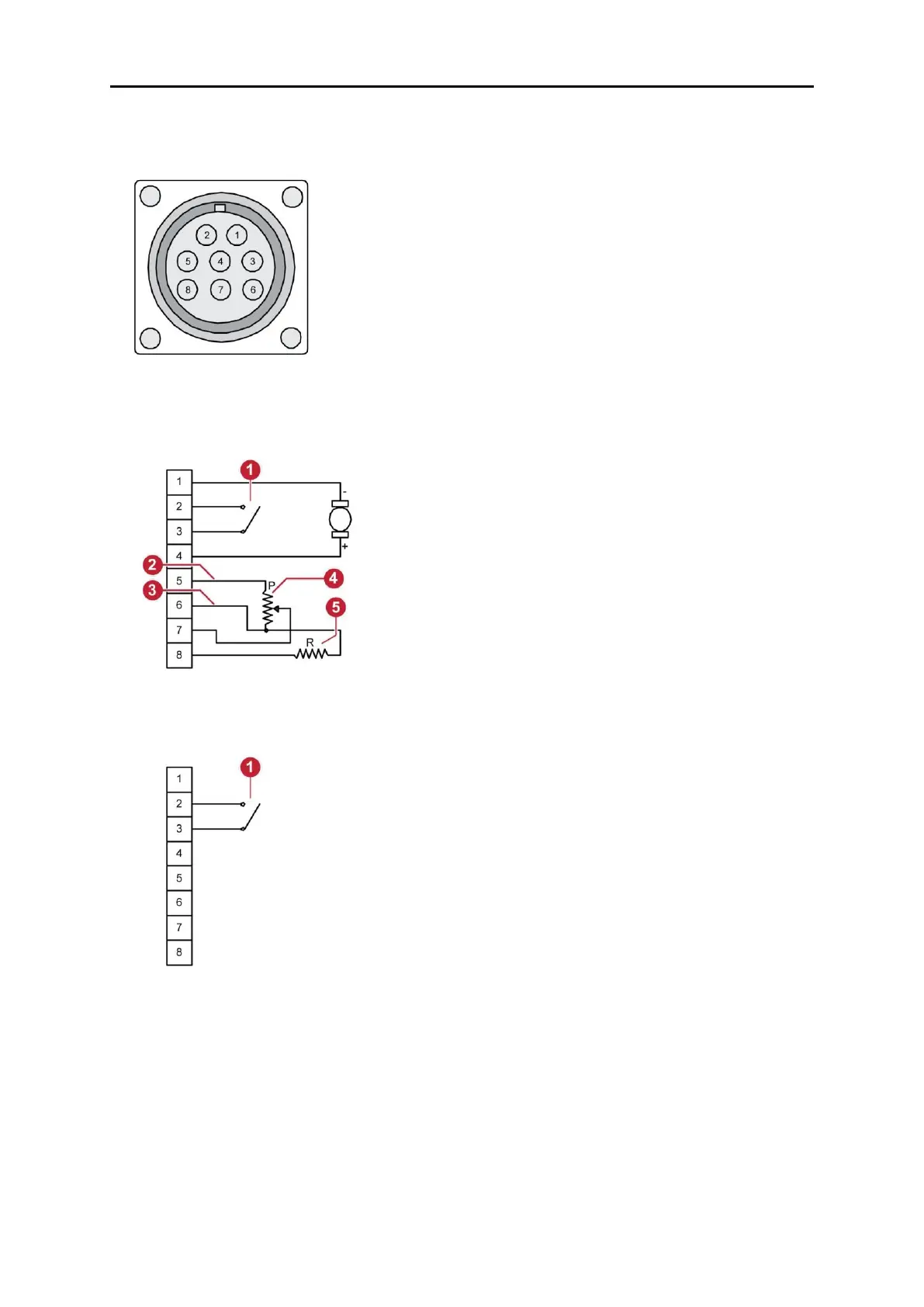

9. Remote control socket
The 8 pin remote control socket is used to connect remote control devices to the welding
power source. To make connections, align keyway, insert plug, and rotate threaded collar
fully clockwise.
1 Trigger switch
2 Max (CW)
3 Min (CCW)
4 Pot V-A-WFS
5 Peripheral sense
MIG Gun (F180TH103035) / TIG Torch (W4013802)
1 Trigger switch
1 Spool gun motor negative
2 Spool gun trigger
3 Spool gun trigger
4 Spool gun motor positive, +24 V
Spool gun
5 Pot positive, Max CW
6 Pot negative, Min CCW
7 Pot wiper
8 Peripheral resistor, 10 K
