– 46 –
325e
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 40. Read through before you start using the equipment!
WARNING – TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10
o
. In that case appropriate securing has to be provided !

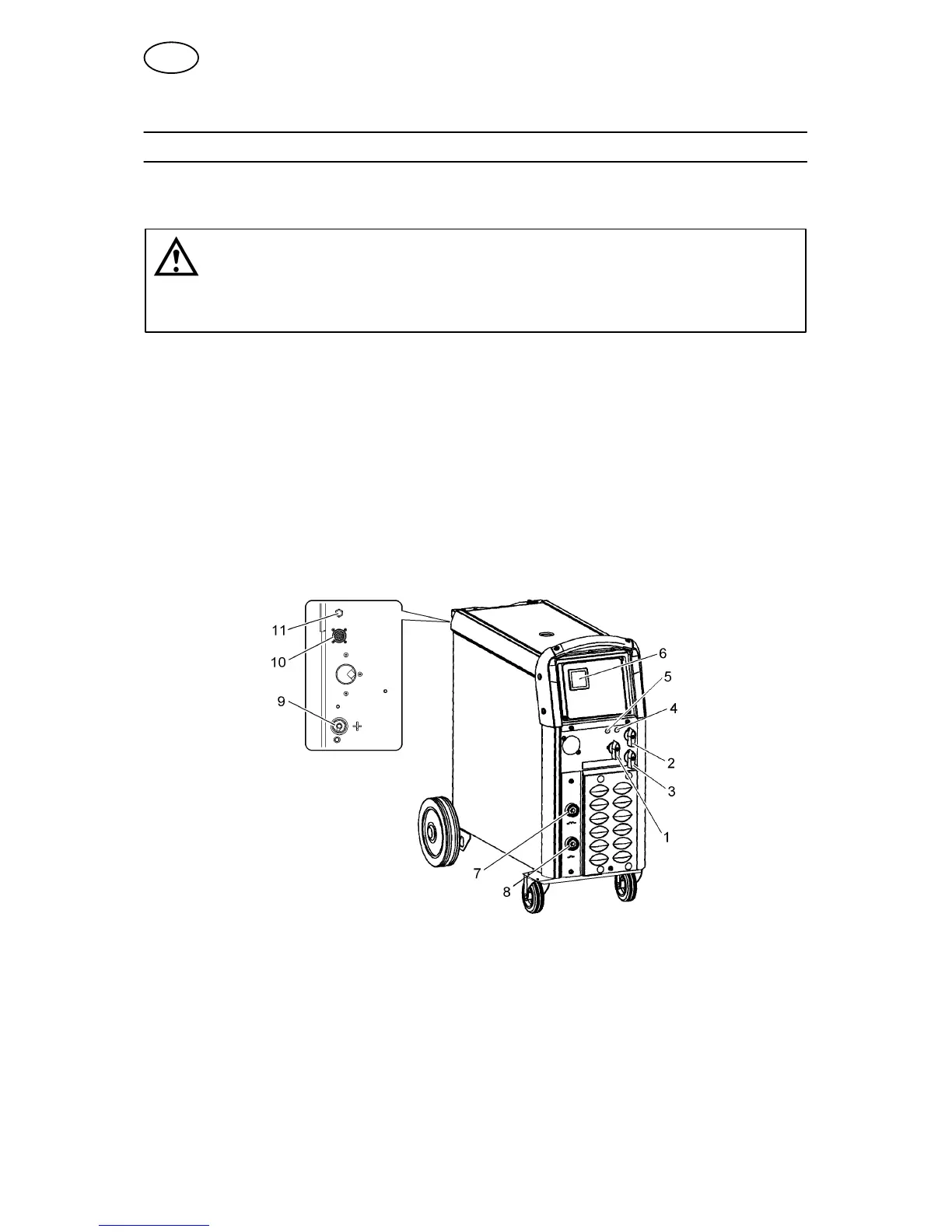

6.1 Connection and control devices
1 Mains supply switch 7 Connection for return cable (–), high induc-
tance
2 Switch, precise control 8 Connection for return cable (–), low induc-
tance
3 Switch, coarse control 9 Connection for welding current cable (+)
4 Indicating lamp, power supply ON 10 Connection for control cable for wire feeder
5 Orange indicating lamp, overheating 11 MCB
6 Space for digital meters (optional), see
page 141
6.2 Function explanation
6.2.1 Overheating protection
A thermal overload cutout protects against overheating. The cutout resets automatically
when the unit has cooled.
6.2.2 Inductance connection
Higher inductance produces a more flowing weld and fewer spatters. Lower inductance
produces a harsher sound and a stable, concentrated arc.
