– 45 –
325e

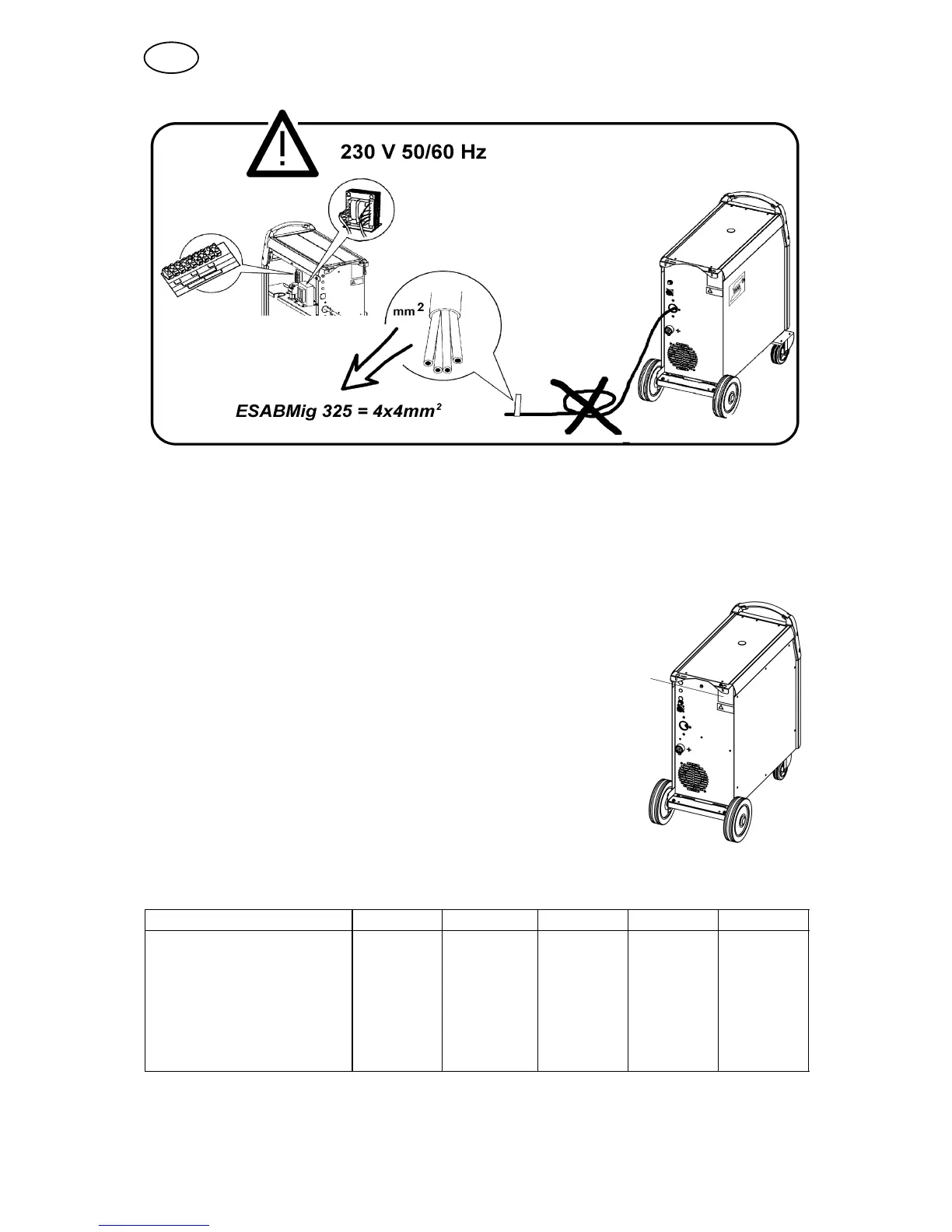

5.5 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
ESABMig 325 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz
Voltage V 230 400/415 500 230 440/460
Current A
at100% duty cycle 16 9 7 16 8
at 60% duty cycle 23 14 10 23 12
at 30% duty cycle 35 20 16 34 18
Cable area mm
2
4 x 4 4 x 2,5 4 x 2,5 4 x 4 4 x 2,5
Fuse, slow A 20 16 16 20 16
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
GB
