ESAB PCM-875 - PCM-875 Interconnection Diagram

SECTION 2 INSTALLATION
12
WORK
SAFETY
GROUND
PT-27
Allow at least 10 ft. (3m)
between work and power source
TORCH
SWITCH
RECEPTACLE
ACCESS DOOR FOR
TORCH CONNECTION
Prefiltered AIR SUPPLY
(Customer Supplied)
(90 to 150 psig max)
CUSTOMER FUSED LINE
DISCONNECT SWITCH(See
Table 2.1 and WARNING in
regards to chassis ground in
Section 2.5.)
TORCH
POWER
CABLE
CONNECTION
TORCH
PILOT
ARC
CONNECTION
INPUT POWER CABLE
(See Table 2.1)

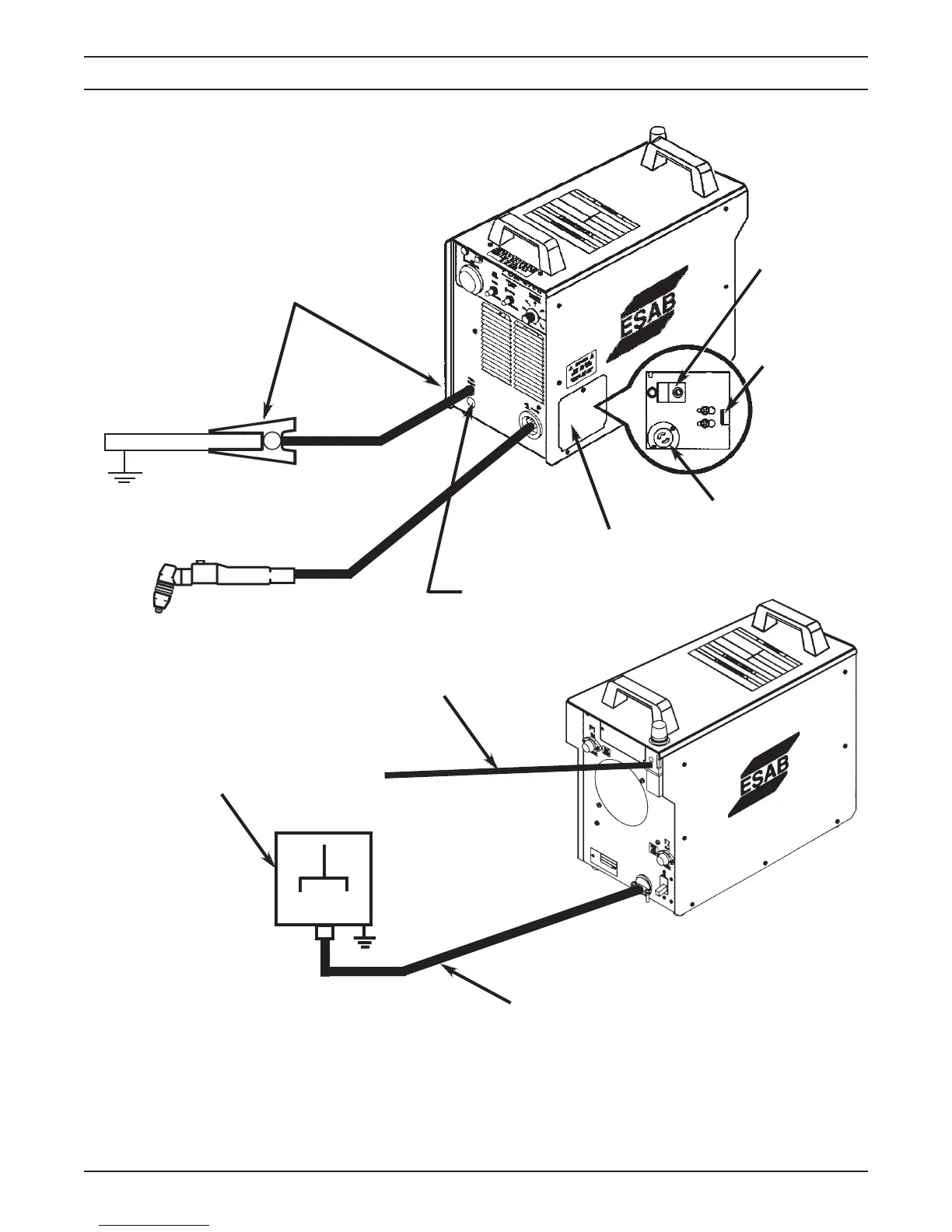

Figure 2-1. PCM-875 Interconnection Diagram
NOTE: The 208/230 V models are equipped with a plug for
single-phase connection only. The plug is mounted to a
4-conductor cable. If 3-phase connection is desired,
remove and discard the plug and refer to Sect. 2.5.
ACCESS FOR CNC
INTERFACE CONNEC-
TIONS.
(See Detail “A”)
