ESAB PCM-875 - Section 6 Replacement Parts

SECTION 6 REPLACEMENT PARTS
39
Item Qty. Part Circuit
No. Req. No. Description Symbol
21 1 952150 BRIDGE 60ADC 100NS 600 V (includes PAD - 951192) D1
22 1 952002 CORE SATURABLE L3
23 1 952208 STANDOFF INS. TB3
24 1 36731 BUSBAR NEG
25 2 952237 CAPACITOR 1800 µf 450VDC C1, 2
26 2 994674 GROMMET STRIP
27 2 38052 PCB ASS'Y 1GBT DRIVER BOARD PCB2, 3
28 1 36822 HOSE AY B/A-2X 1/4NPT RUB 2 FT
29 1 36730 BUSBAR POS
30 1 951028 CAPACITOR 1µf 630VDC (Not shown - see wiring) C3
31 1 950487 TERM BLOCK 2 POS TB5
32 1 952235 MODULE INPUT BRIDGE/SCR (includes PAD - 952280) IBR
33 1 2062282 CAPACITOR .22µf 1KV (See wiring) C19
34 3 951321 METAL OXIDE VARISTOR 275 V (See wiring) MOV1, 2, 3
35 2 951205 IGBT 600 V 100 A (includes PAD - 951190) Q1, 2
36 2 17750010 RESISTOR 50 W 10 OHM (PAD - 951194) R7, 10
37 1 32958 CURRENT TRANSFORMER ASS'Y T4
38 1 952255 CAPACITOR 40 µf 400 VDC C4
39 1 950711 THERMAL SWITCH 194°F TS1
40 4 17721020 RESISTOR 24 W 20 OHMS (PAD 951193) R3, 4, 5, 6
41 1 951202 FLOW SWITCH .25 GPM FS
42 2 951940 CAPACITOR 1µf 630W VDC C15, 16
43 1 952558 HEATSINK
44 1 950249 SOL. VALVE 1/4NPT 165 PSI 24 VAC SOL1
45 1 951471 DIODE ZENER 60 V 75 MA (See Wiring) ZD1

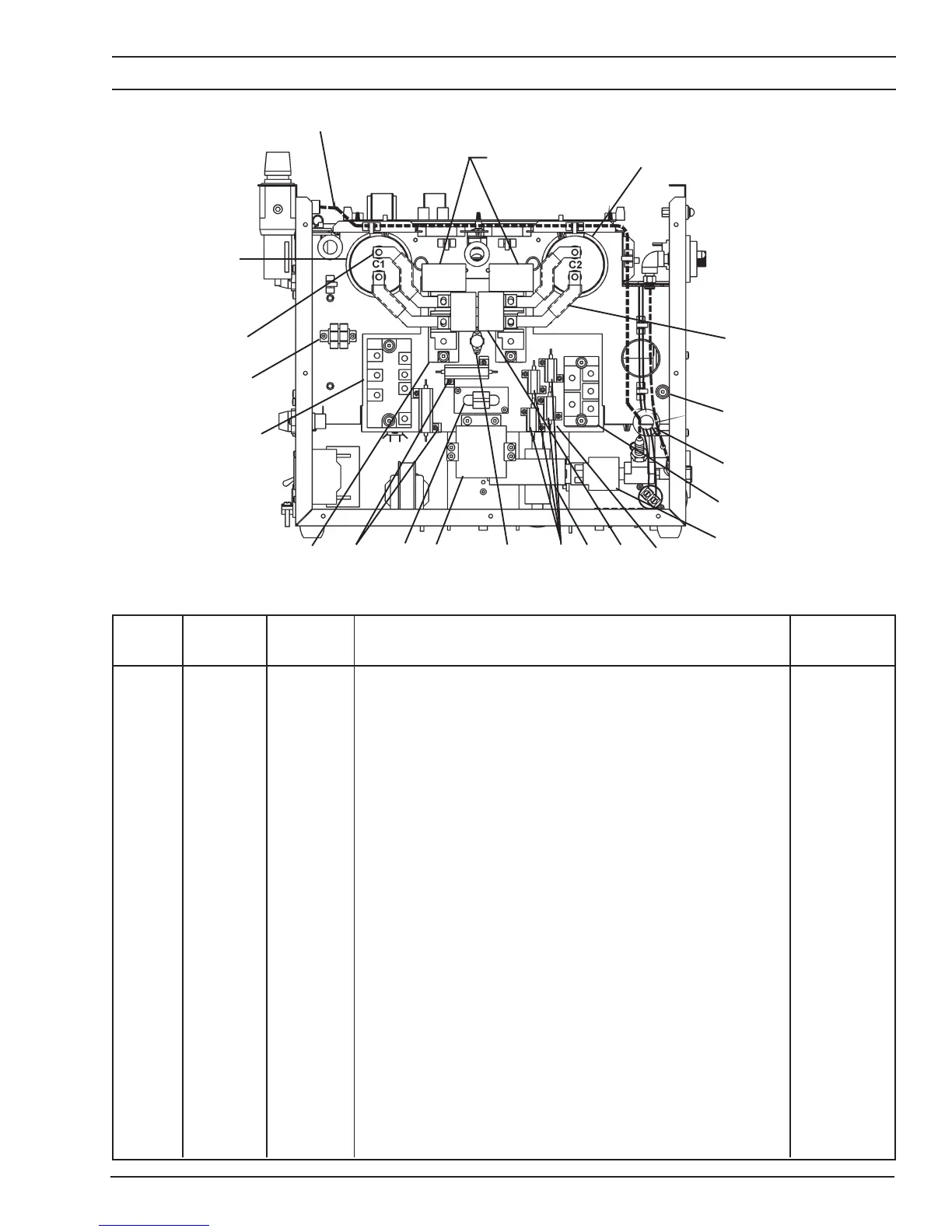

Fig. 6-2. PCM-875 Power Source, Left Side View (208/230)
28
27
25, 26
24
23
22
21
44, 45
43
41
42
3836
35
32, 33, 34
31
29, 30
25, 26
39
40
37
