ESAB PCM-875 - Page 39

SECTION 6 REPLACEMENT PARTS
38

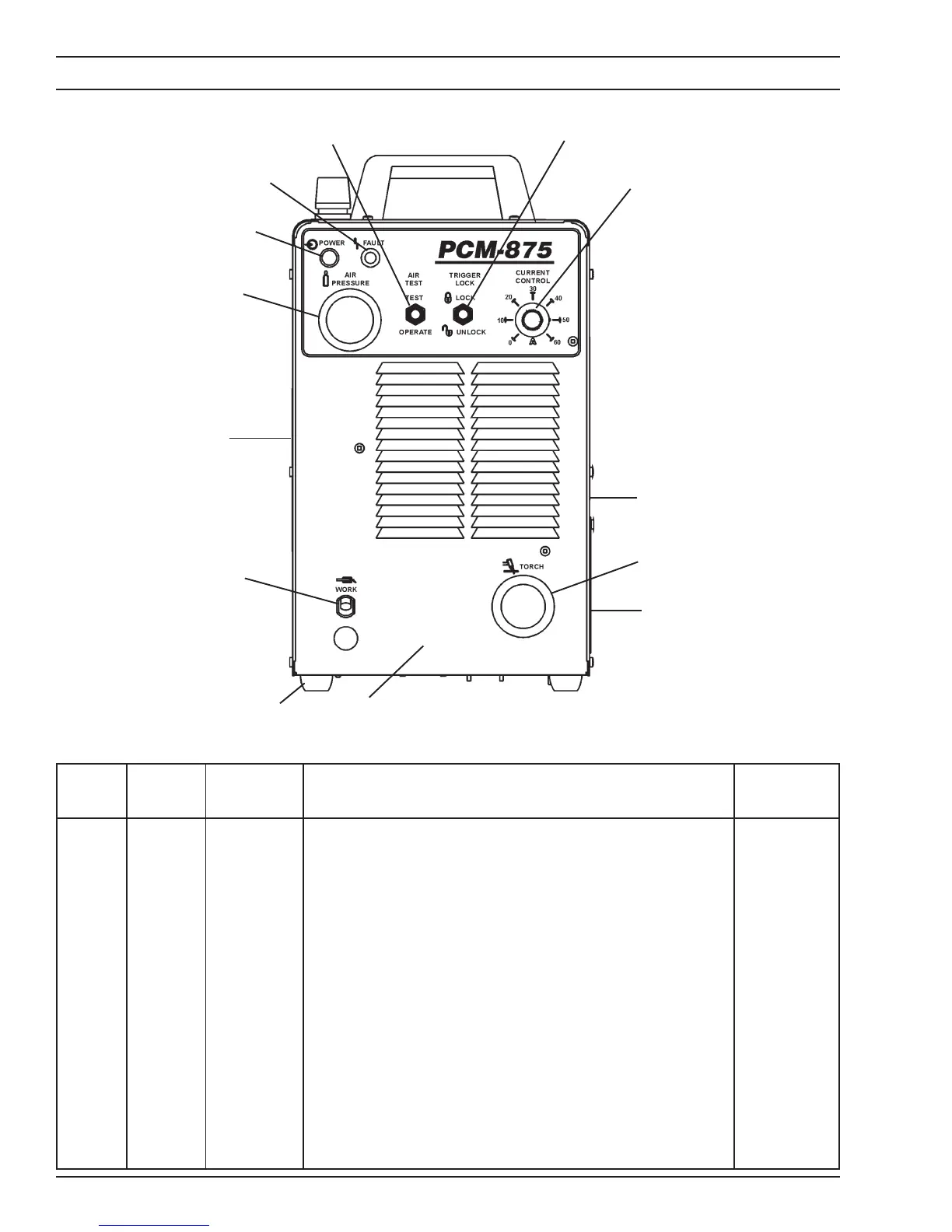

Fig. 6-1. PCM-875 Power Source, Front View
Item Qty. Part Circuit
No. Req. No. Description Symbol
1 1 137630611 KNOB
2 1 2062018 POT. 10K 2W (NOMEX INSUL. - 676876) R2
3 1 673213 SWITCH TOGGLE SPST 2 POS 15 A 125 V S2
4 2 951474 SWITCH SEAL BLACK
5 1 634518 SWITCH TOGGLE DPDT 2 POS 15 A 125 V S1
6 1 951754 LAMP LED YEL 12 V PL2
7 1 951526 LAMP NEON WHITE PL1
8 2 993426 GROMMET RUBBER 1.50 ID x 1.76 OD
9 1 21711 GAUGE 1.50 160 PSI WHITE
10 1 23602576 STRAIN RELIEF HEYCO #1214
11 1 680560 WORK CABLE 25 FT. (Not Shown)
12 4 182W12 FOOT RUBBER
13 1 32237GY CHASSIS PCM-875
14 1 36330YL DOOR ACCESS YEL (ESAB)
15 1 954008 LABEL WARNING HI VOLTAGE
16 2 13734588 LABEL ESAB
