5 OPERATION
0463 691 001
- 21 -
© ESAB AB 2019

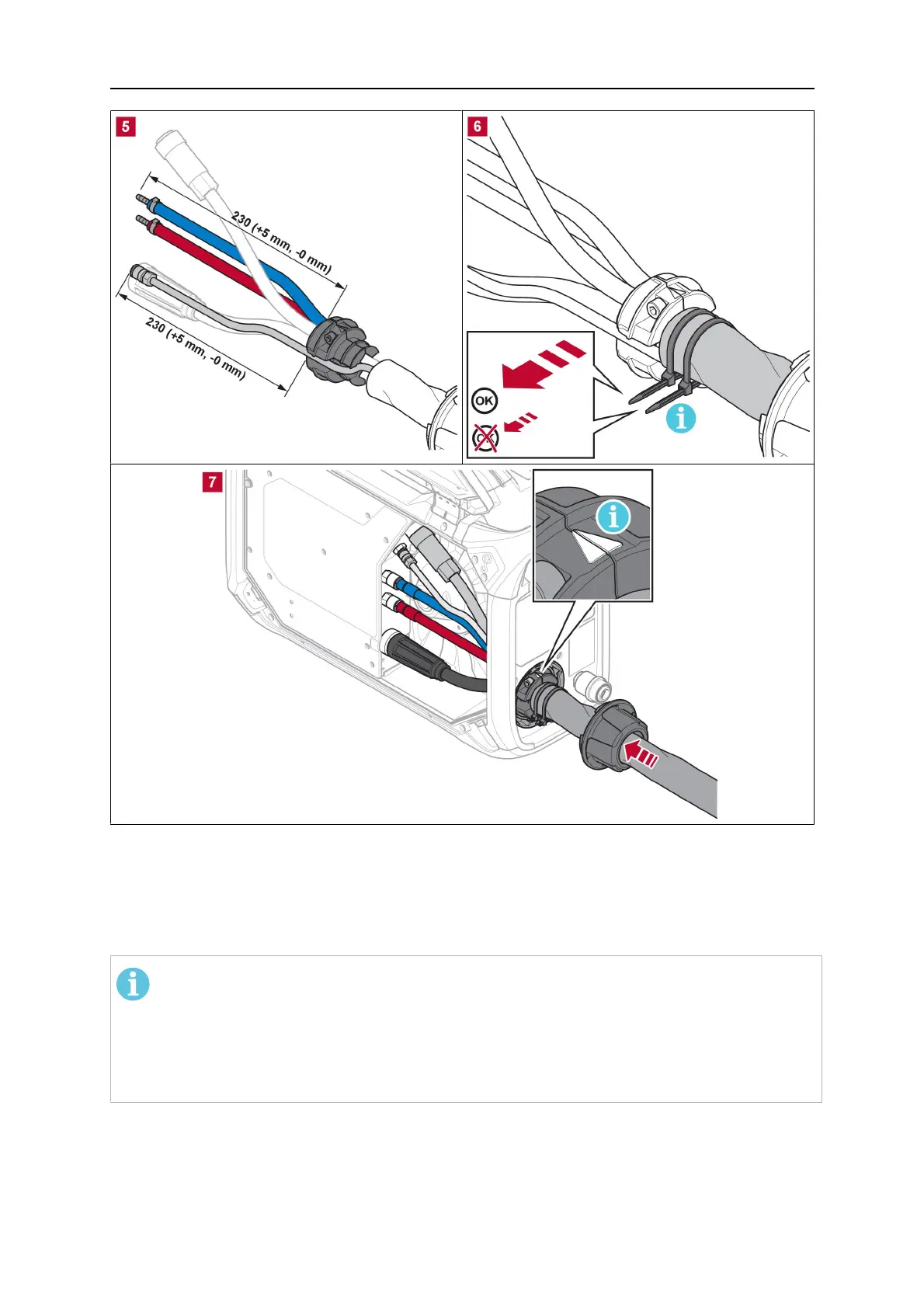

The diagram above illustrates the retrofitting of the interconnection strain relief kit (order no.
0446 050 880) where the welding current and control cables, in addition to the cooling liquid
and shielding gas hoses (if applicable) are routed through the strain relief device.
Using a pre-assembled interconnection cable kit, which includes the strain relief, is also an
option (see the "ACCESSORIES" appendix).
NOTE!
• The interconnection strain relief should be clamped onto clean cables.
• Locate the welding current cable in the larger (2) of the two holes in the
strain relief clamp.
• Ensure that the cable ties wrapped around the insulating sleeve (9) are
securely tightened.
