5 OPERATION
0463 691 001
- 27 -
© ESAB AB 2019

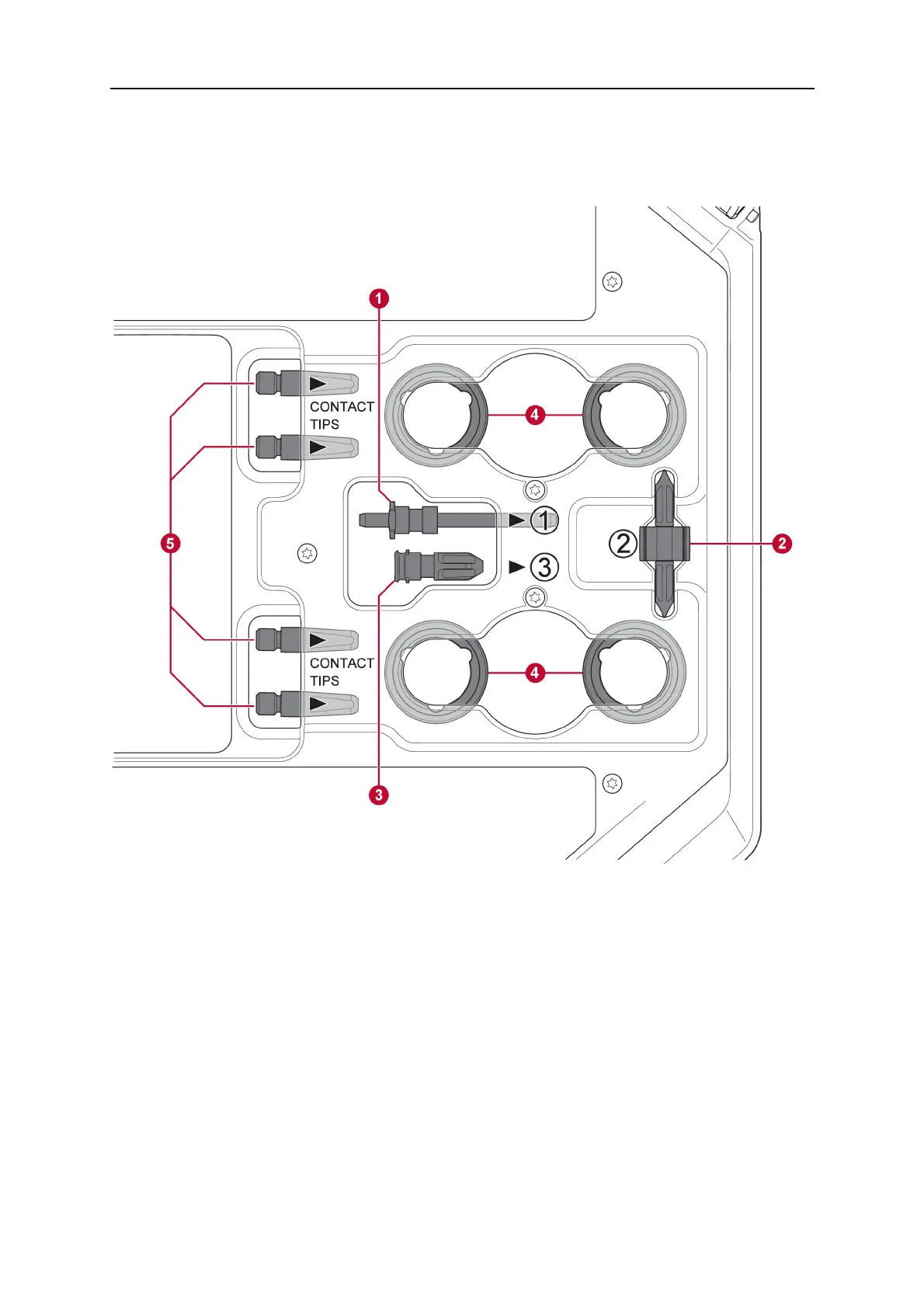

5.13 Wear parts storage compartment
A wear parts storage compartment is located on the inside of the left door of the wire feeder,
providing easy access to an extra set of rollers and wire guides.
1. Inlet wire guide 4. Feed rollers (×4 pcs.)
2. Middle wire guide 5. Contact tips for the welding torch (×4 pcs.)
3. Outlet wire guide
5.14 Attaching the wheel kit
5.14.1 Attaching the wheels to the wheel kit frame
Before attaching the wire feed unit to the wheel kit, fasten the wheels to the frame using the
M12 screws, washers and nuts, using a tightening torque of 40±4Nm (354±35.4in.lb). The
fixed wheels at the rear end should be positioned parallel to the frame.
