ESAB Robust Feed PRO - CONTROL PANEL; External Control Panel Overview

6 CONTROL PANEL
0463 691 001
- 31 -
© ESAB AB 2019
6 CONTROL PANEL
6.1 Pro

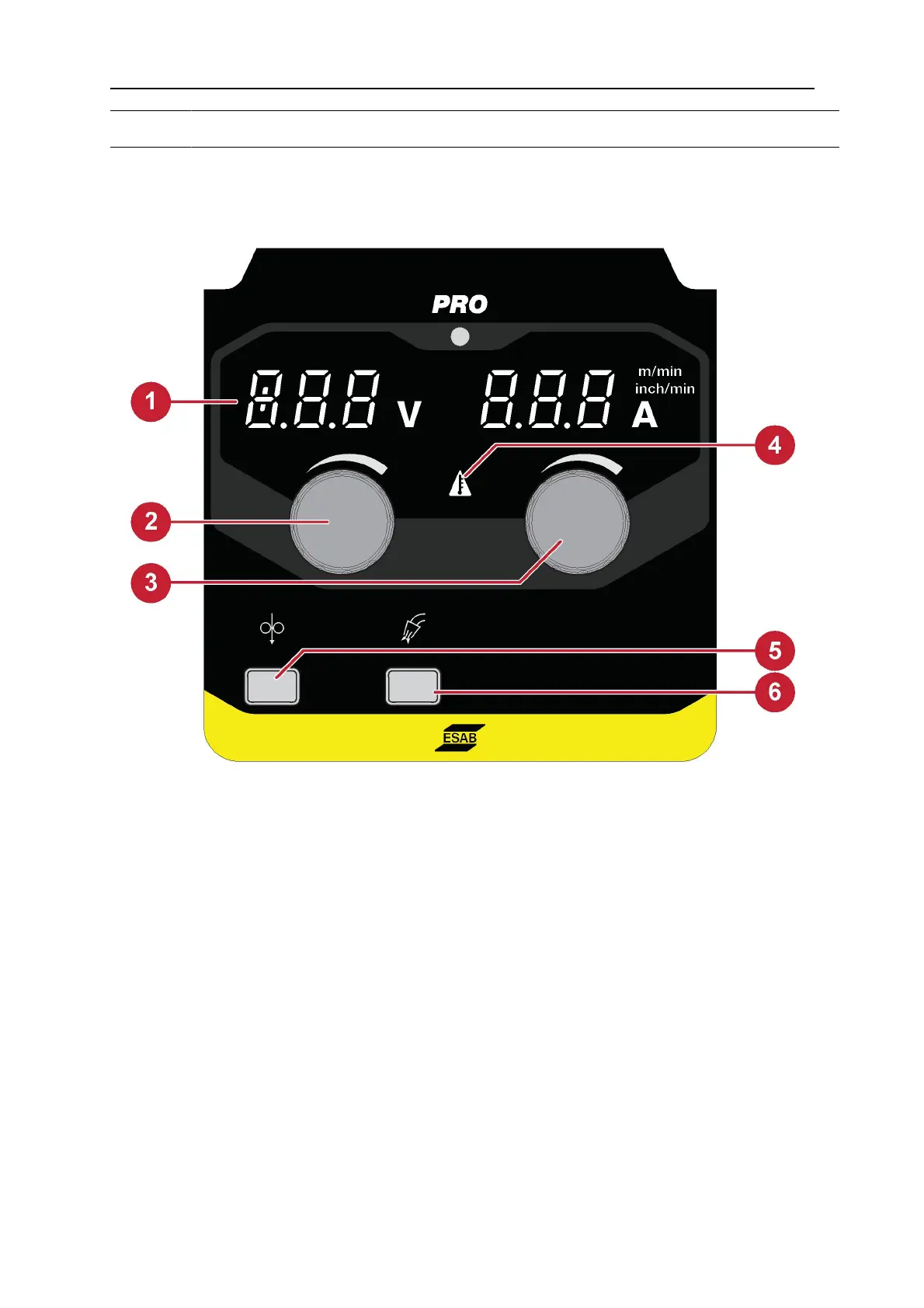

6.1.1 External control panel
1. Display, shows set or measured value 4. Overtemperature indicator, illuminated
when the temperature of the wire feeder is
approaching a critical level or has already
reached the critical level
2. Knob for setting the voltage (V) 5. Push button for wire inching
3. Knob for setting the wire feed speed
(m/minorin./min)
6. Push button for gas purge
