USER SECTION
CHAPTER 3 – INSTALLING YOUR CABINET

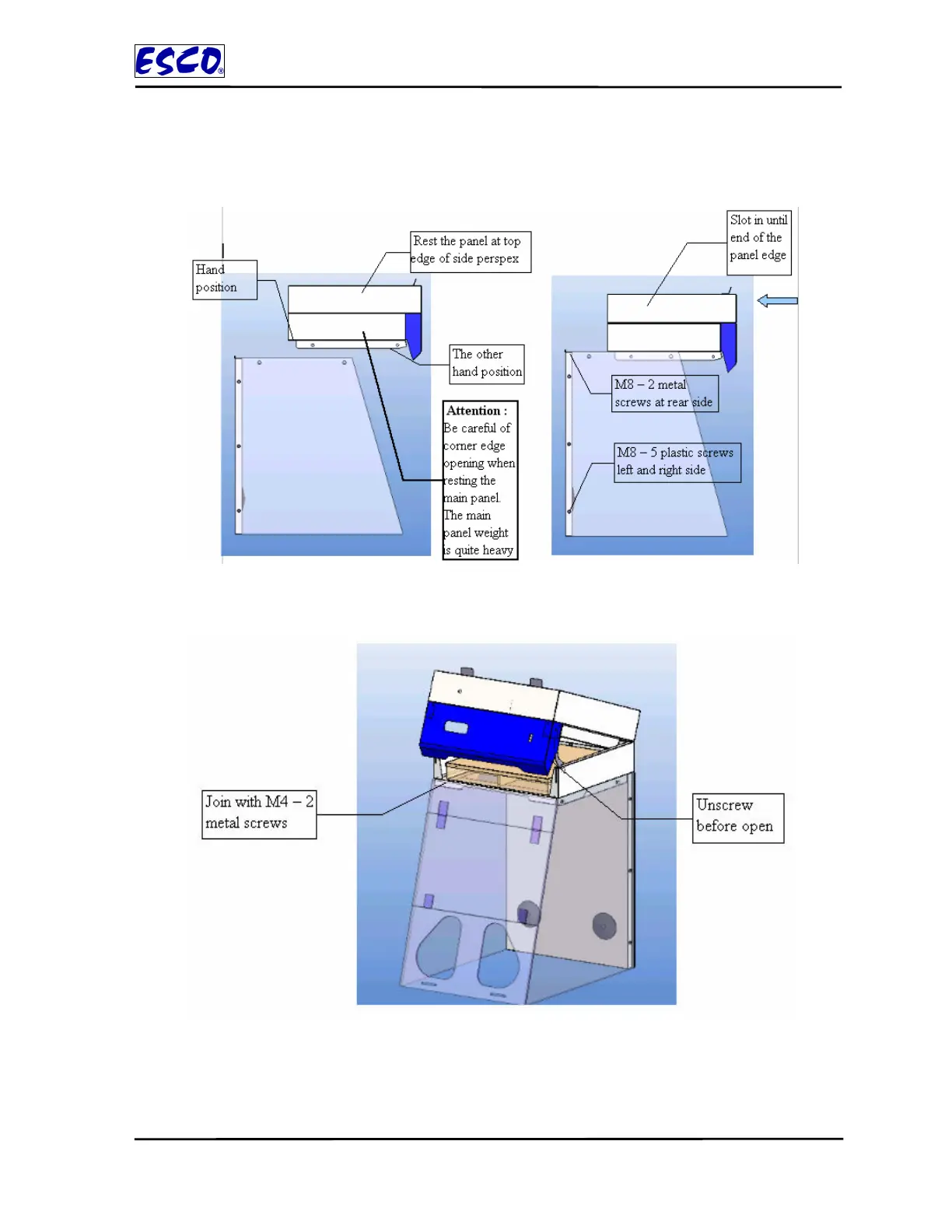

2. Assemble the main top panel joined to back panel and side wall using:
- M8 – 5 plastic screws to side wall left and right.
- M8 – 2 metal screws and spring washer to back panel.
3. Assemble the front glass / acrylic using M4 – 2 metal screws. Before that, unscrew the
top module at side of the blue panel
21
