USER SECTION
CHAPTER 3 – INSTALLING YOUR CABINET
CHAPTER 3
INSTALLING YOUR CABINET
3.1 Installing SPB-2AX
3.1.1 List of Parts
The following parts are included in your packaging:
No. Parts Quantity
1. Plastic Screws 12 pieces
2. Hexagonal Bolt M8 x 20 3 pieces
3. Stainless Steel Flat Washer for M8 3 pieces
4. Stainless Steel Spring Washer for M8 3 pieces
5. Pan Head Screw M4 x 12 3 pieces
6. Stainless Steel Flat Washer for M4 3 pieces
7. Wrench/Spanner No.13 1 piece
8. Phillips Head Screwdriver 1 piece

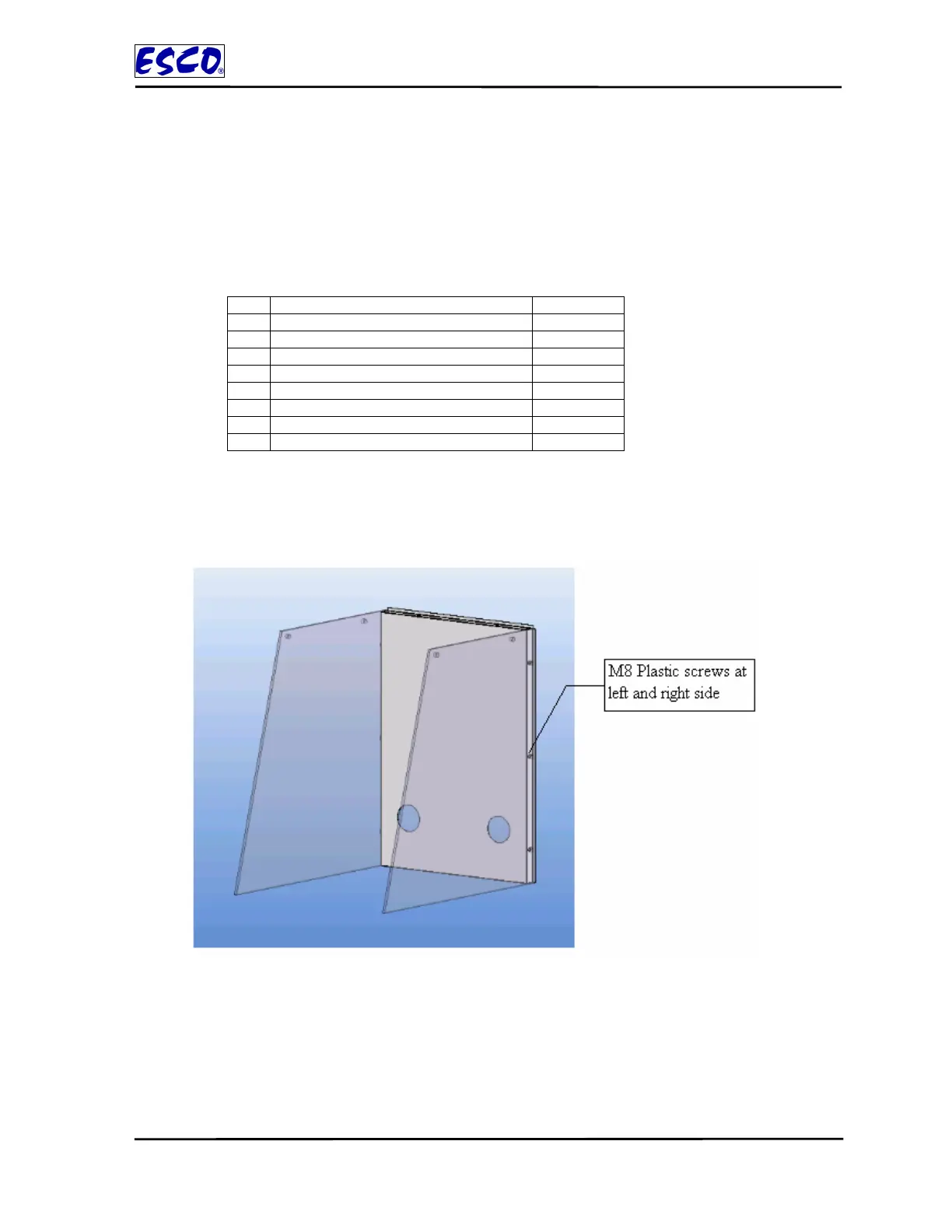

3.1.2 Assembly Guide
1. Join both left and right Side Wall (Acrylic) using M8 – 6 White colored plastic screws
for left and right side
To Next Page
