CHAPTER 3 – INSTALLING YOUR CABINET
3.5 CASE STUDY: CHOOSING THE BEST INSTALLATION LOCATION

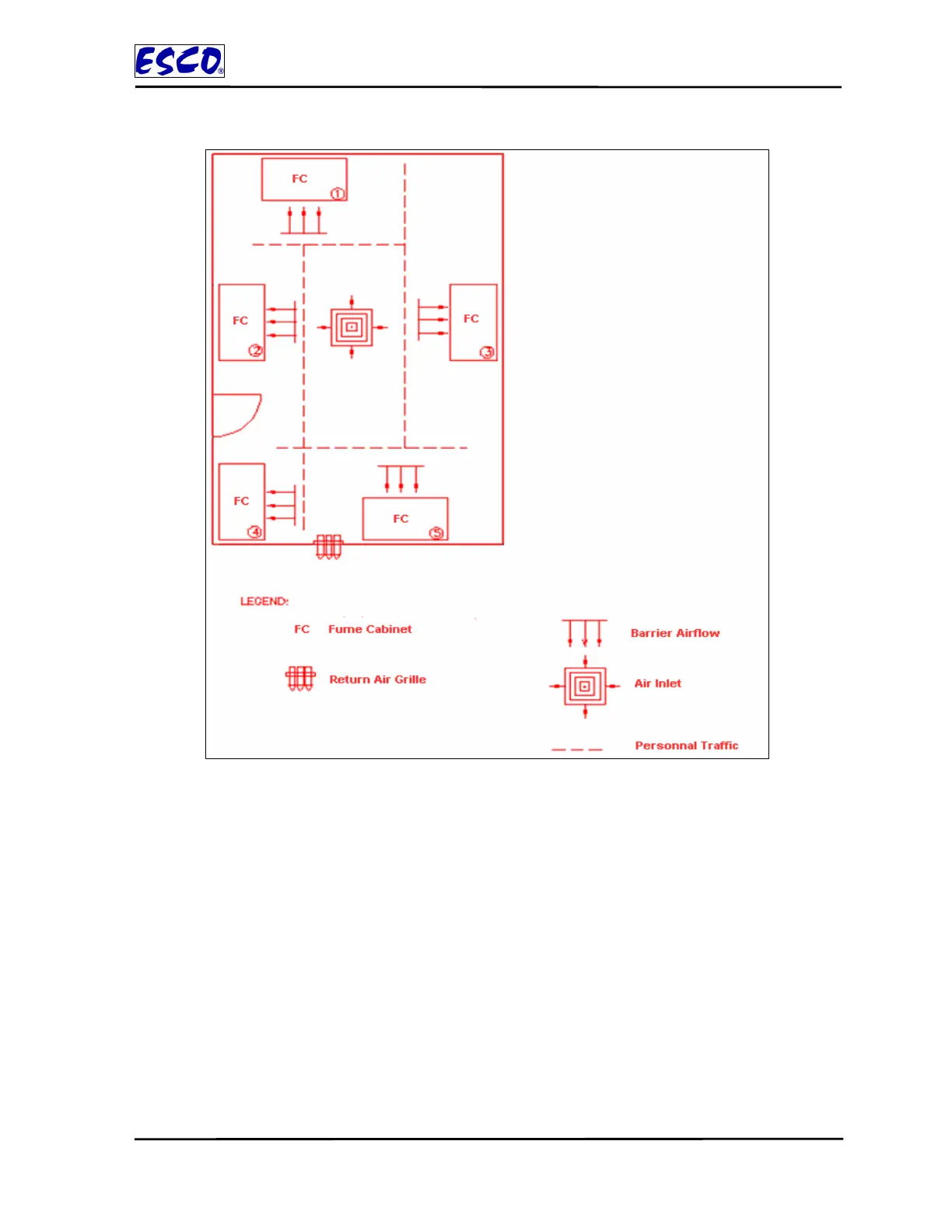

Examples of the influence on cabinet airflow from room design and ventilation
1. Cabinet 1 is quite appropriately located with respect to avoidance of excessive air movements
from surrounding areas
2. Cabinet 2 is too close to the doorway and its airflow could be influenced by the air inlet too
3. The airflow of cabinet 3 could also be influenced by the air inlet
4. Cabinet 4 is too close to the doorway.
5. Cabinet 5 is suitably located provided that the adjacent return air grille does not influence cabinet
airflow.
Figure above illustrates various possible influences that can be induced by a room’s design and
ventilation system on the cabinet’s airflow. Please note that Figure above does not depict any typical
installation. In fact it is NOT recommended that so many cabinets be placed in a small room, or in close
proximity to each other.
