USER SECTION
CHAPTER 3 – INSTALLING YOUR CABINET

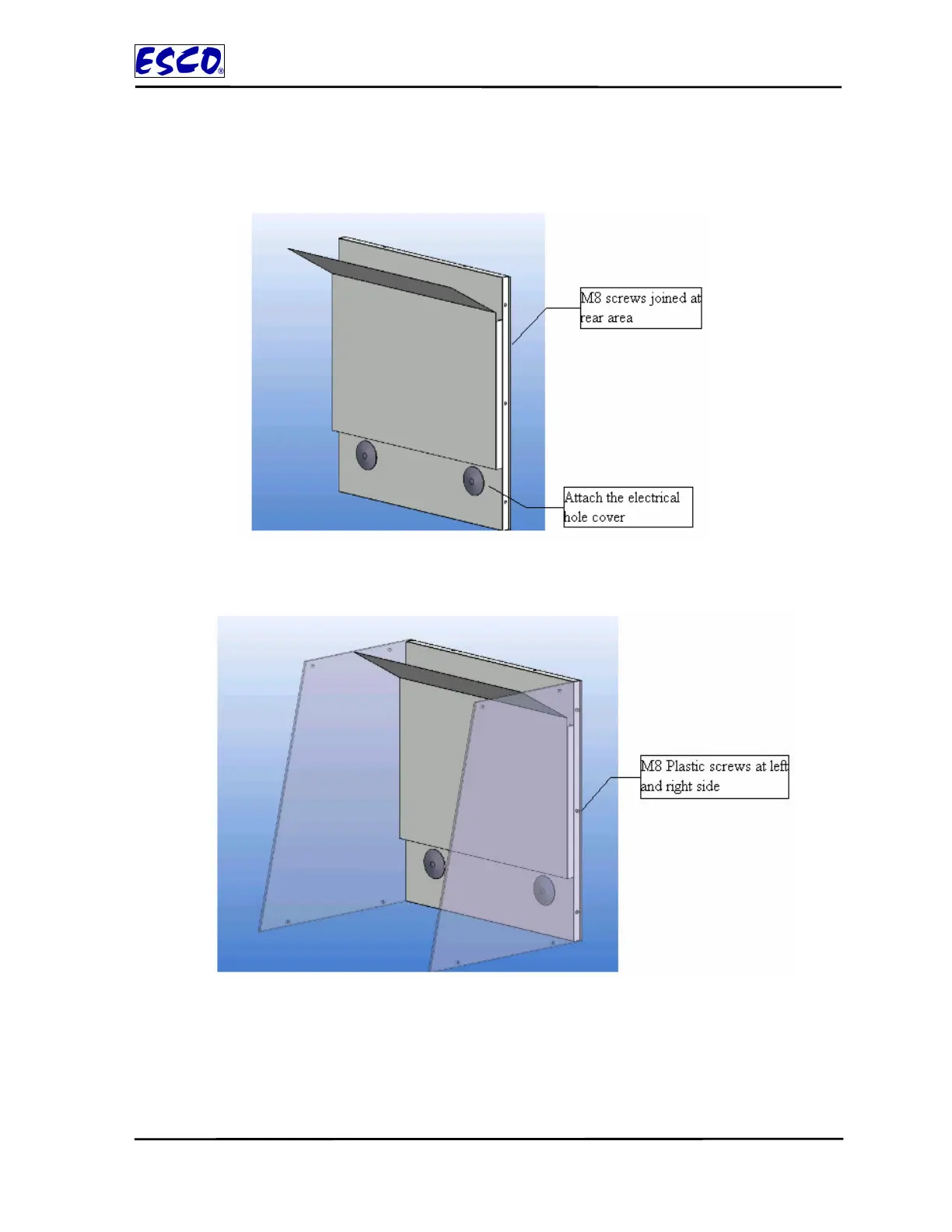

3.2.2 Assembly Guide
1. Join the Baffle Board onto the Back Panel using 4 screws (M8-type)
2. Join both left and right Side Wall (Acrylic) using M8 – 6 White colored plastic screws for left
and right side
23
