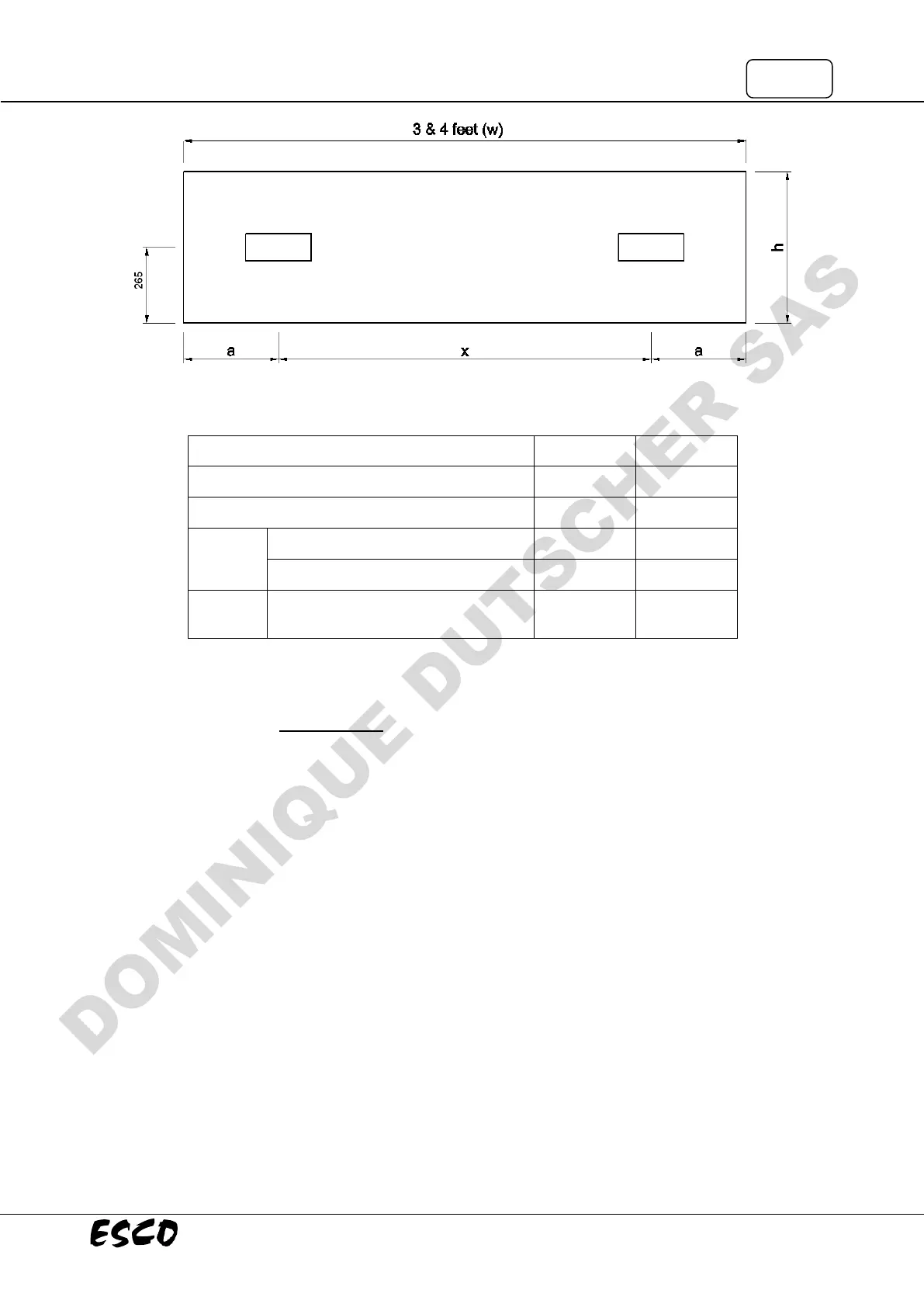

Cabinet Model
3 feet
4 feet
Width = w (mm) (in)
930 (36.6)
1235 (48.6)
Depth = h (mm) (in)
530 (20.9)
530 (20.9)
Left to
Right
Distance from walls = a (mm) (in)
300 (11.8)
300 (11.8)
Distance apart = x (mm) (in)
330 (12.9)
635 (25)
Front to
Back
Distance from walls = b (mm) (in)
265 (10.4)
265 (10.4)
Average light reading: lux (ft.-candles)
Acceptance: Average light reading should be at least 800 lux (75 ft-candles)
Results: Pass / Fail
Acceptance criteria / testing procedures have been adopted in accordance with the requirements of the: IEST-
RP-CC002.3 Section 6.10 and AS 1807.15 “Illuminance (Lightning Intensity)”
