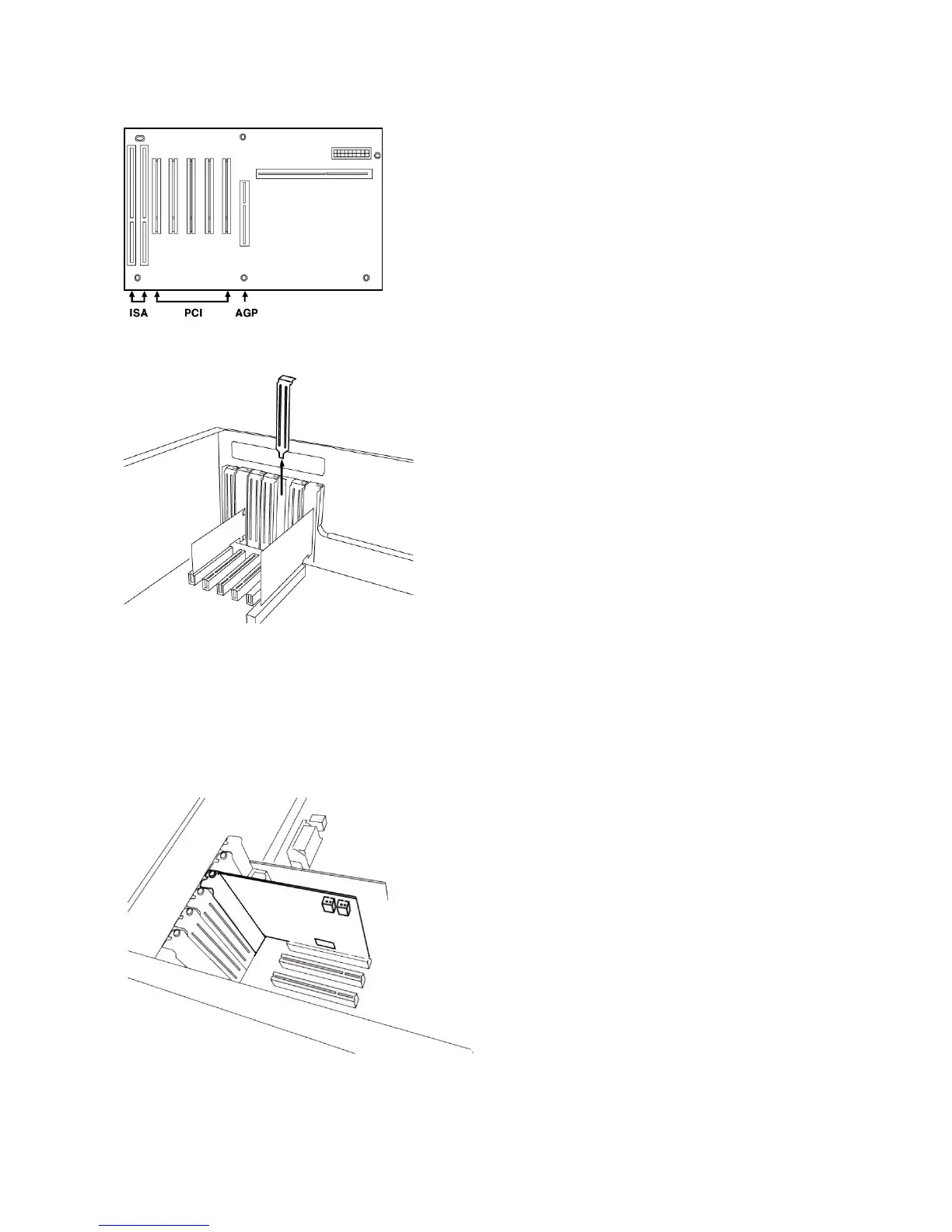

Figure 3. Typical PC Motherboard Slot Configuration
Figure 4. Removing the PCI Slot faceplate
If the PCI slot is covered by a faceplate, you can remove it by removing the screw holding it in
place or by prying it off with a screwdriver.
Insert the Juli@ card into the PCI slot, firmly pushing the card into the slot until it is seated
securely. Replace the screw, and tighten it.
Figure 5. Juli@ Installed in a PCI slot
4. Close the computer case.
