ESI Juli@
* TIP. How to swap the Connectors?
The following example shows you how to change from RCA I/O to TRS I/O connectors. Usually
you change the setup of the card once before you install it and before you start to use it (both I/O
connector types cannot be used simultaneously).

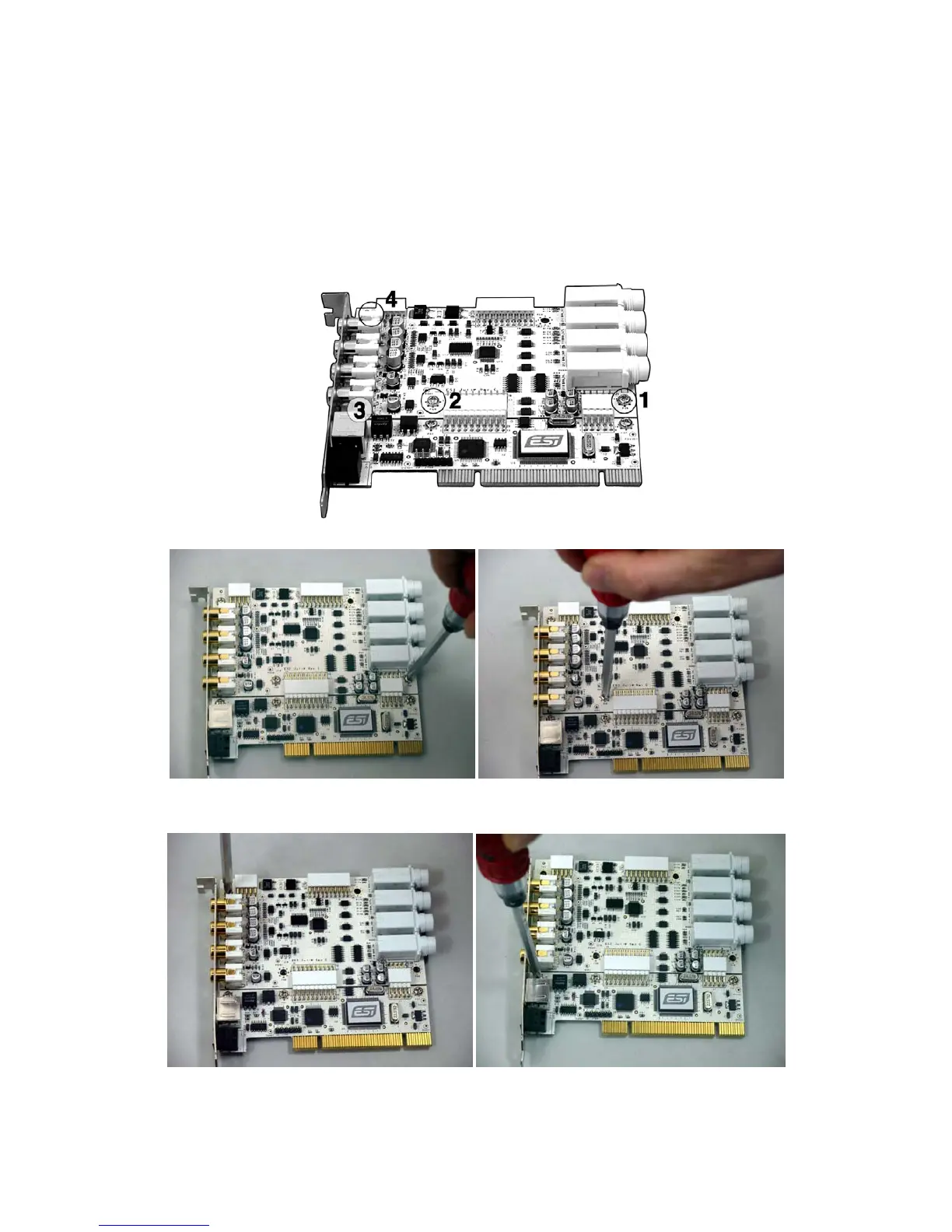

1. First, follow the order of the pictures below to remove the 4 screws carefully.
(Pic 1) (Pic 2)
(Pic 3) (Pic 4)
8
