ESI Juli@
2. Description of Juli@

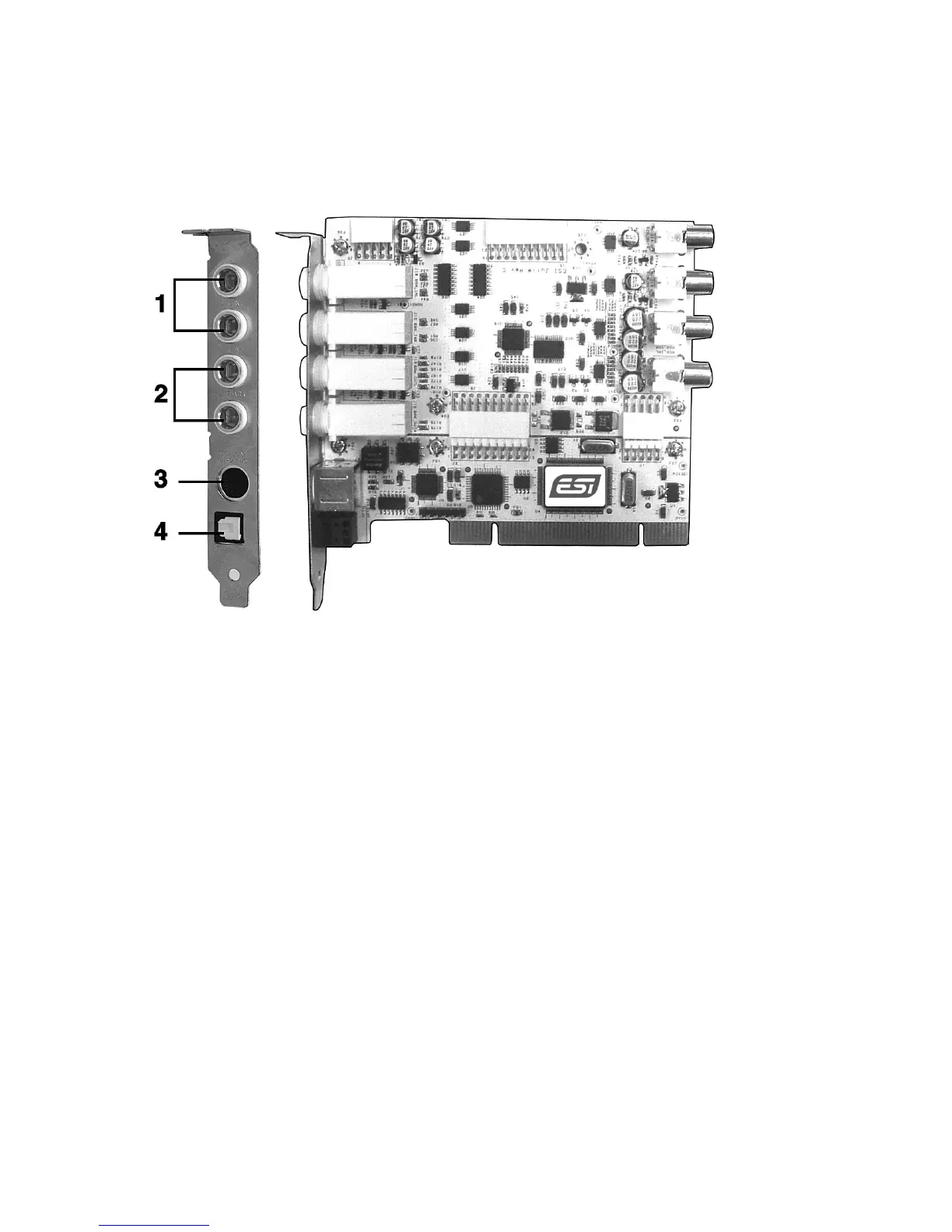

Here is a short description of Juli@’s connectors.
1. 2. Analog Inputs 1/2 (top) and Analog Outputs 1/2 (bottom)
These are analog Line inputs and outputs. Depending on the your requirements, you can select
between balanced (+4dBu nominal TRS) and unbalanced (-10dBV nominal RCA) connectors (both
cannot be used simultaneously).
3. Breakout cable connection
This port allows you to connect Juli@’s breakout cable.
4. S/PDIF Optical Output
This port allows you to transfer Juli@’s audio data digitally without loss, directly to devices like a
DAT, MD, CD-recorder with digital input. The optical output sends out signals from output channel
3/4 (‘Juli@ 3/4’) from your audio applications. The maximum sample rate for the optical output is
96kHz.
6
