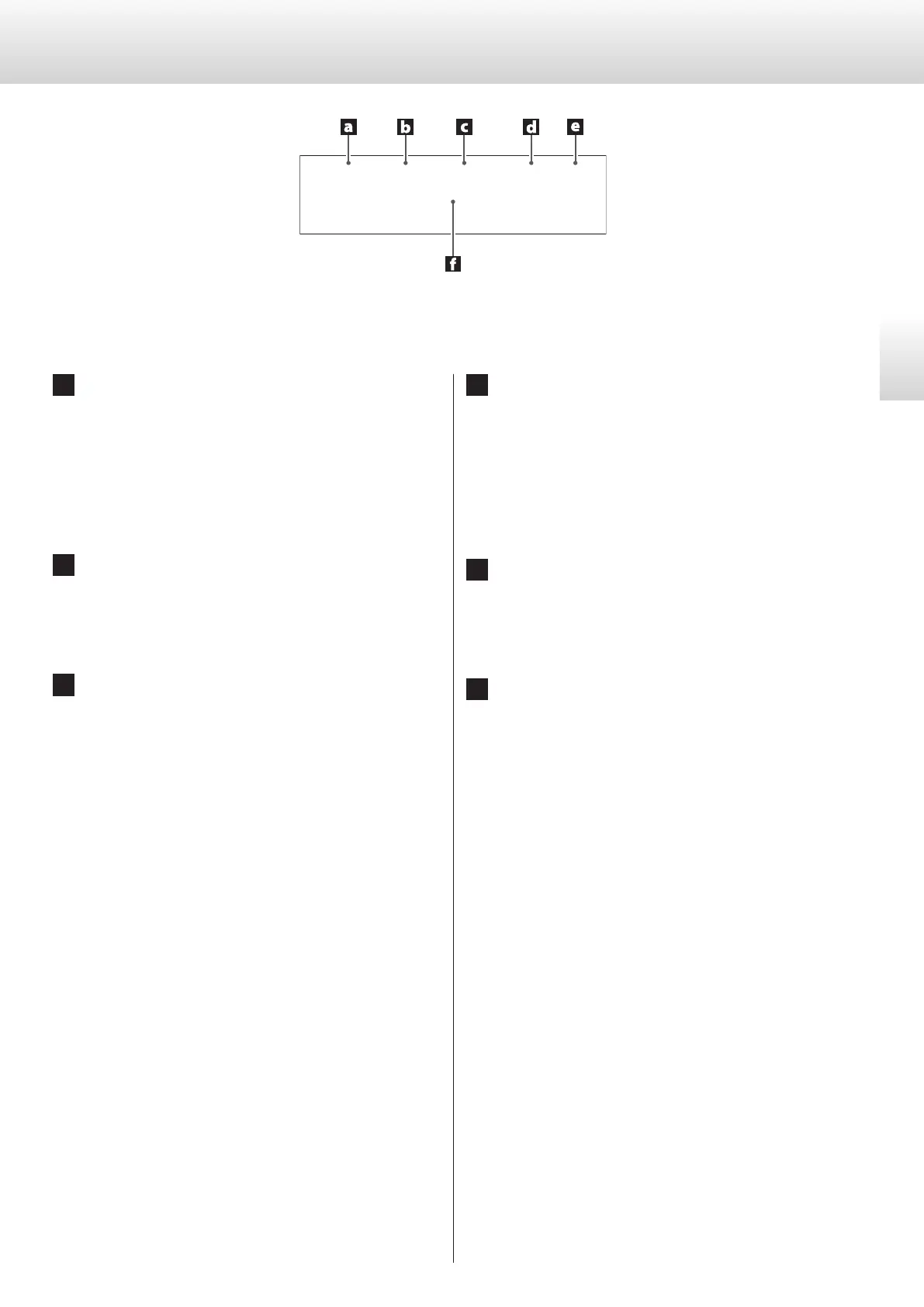

Display parts and functions
a Disc type
This shows the type of disc that is currently loaded.
SACD: Super Audio CD
CD: Audio CD
o When a hybrid Super Audio CD is loaded, the playback area
type is shown (page17).
b Playback/repeat mode
This shows the playback/repeat playback mode (pages19 and
20).
c Information
During Super Audio CD playback or DSD signal input
This shows the DSD filter setting (page27).
During music CD playback or PCM signal input
No indicator:
The upconversion function is not in use.
DSD DIRECT:
If DSDF (DSD filter) is set to OFF, this appears when a DSD
signal is input.
UPCONV:
The upconverter circuit will upconvert the signal before digi-
tal to analog conversion.
o The upconversion multiple is shown to the right of UPCONV
(page25).
UPCONV DSD:
The upconverter circuit will convert the PCM signal to a DSD
signal before digital to analog conversion.
During MQA-CD playback or MQA file input
This shows MQA information.
d Clock mode
This shows the external clock setting (page25).
No indicator:
When CLK is set to OFF
CLK10M:
Shown when CLK is set to SYNC
e Analog output setting
This shows the analog output setting (page26).
Nothing appears when set to OFF.
f Message area
The playback time and various messages appear here.
