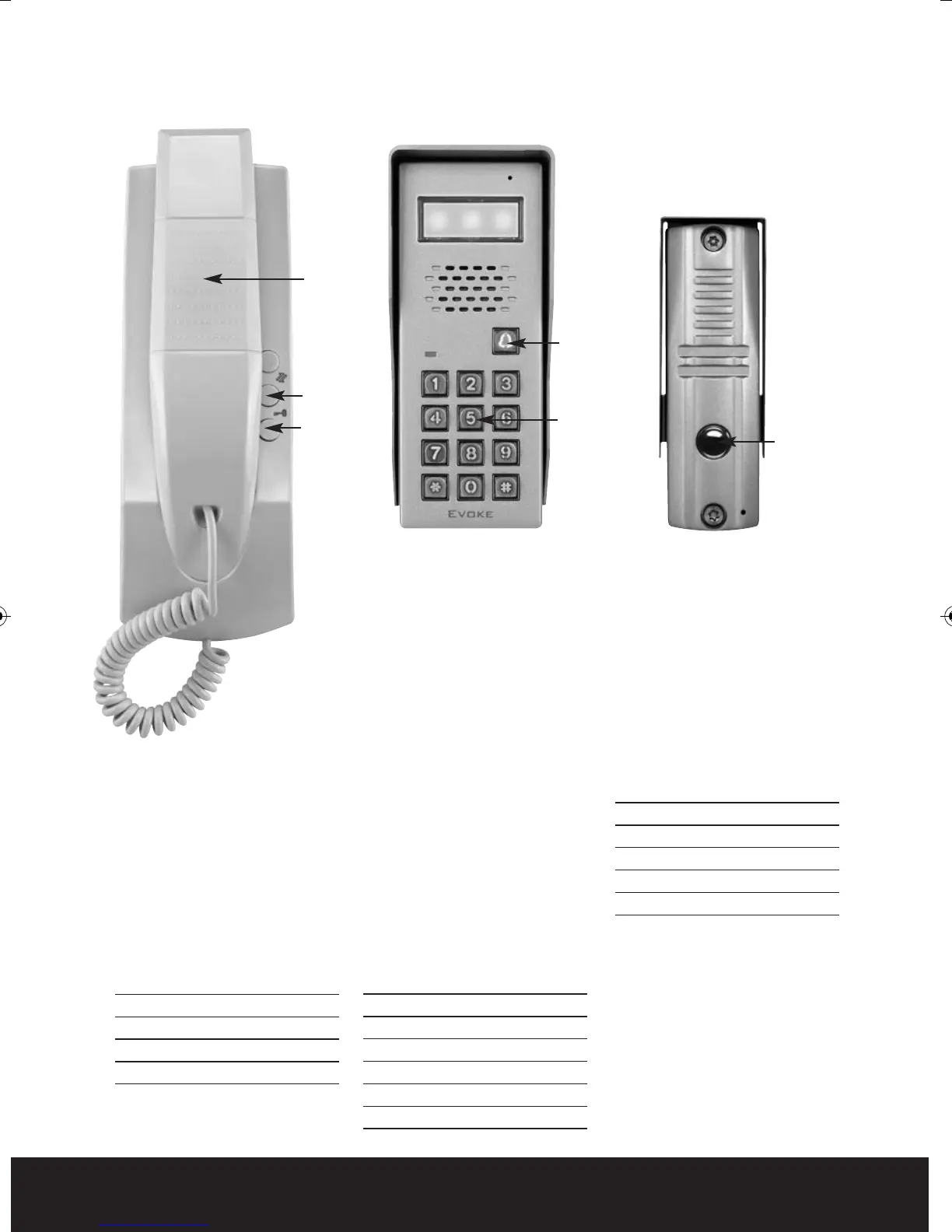

Evoke Call Point
 Clear 2-way audio
 Single call button
 Weather shield
 Metal finish
 IP55
 High-gain microphone
 2 core required to indoor
handset
Technical Specification
Input range DC12V
Output power <=0.6W
Working current <=50mA
IP rating 55
Dimension 128 x 43 x 40mm
Evoke KP Call Point
(Requires 12 VDC PSU - EVBPS)
 Keypad door access
 Up to 30 programmable
pin codes
 Up to 10 latching pin codes
 Voltage free change-over
contacts
 Quick grip cable termination
 Push-to-exit input
 Blue backlit keypad
 Weather shield
 Metal fi nish
 IP55
 High-gain microphone
 Clear 2-way audio
 4 core required to indoor
handset
Technical Specification
Input range DC12V
Output power <=1.56W
Working current <=130mA
Speaker output 0.5W
IP rating 55
Dimension 190 x 78 x 60mm
Evoke/KP Handset
 Clear 2-way audio
 Easy lock-release facility
 2 handsets require 1 PSU
 Distinctive ring tone
 Call transfer facility
 Operating voltage 14 VDC
(transformer supplied)
 Internal use only
Technical Specification
Input range DC12V
Output power <=0.6W
Working current <=50mA
Dimension 225 x 83 x 60mm
Handset
Extension
call
transferring
Unlock
Product Descriptions and Technical Specifications
