ESP FHDV 4 R - DVR Description; Rear Panel

3
REAR PANEL
2
1
5
4
7
8 9
3
6
1 2

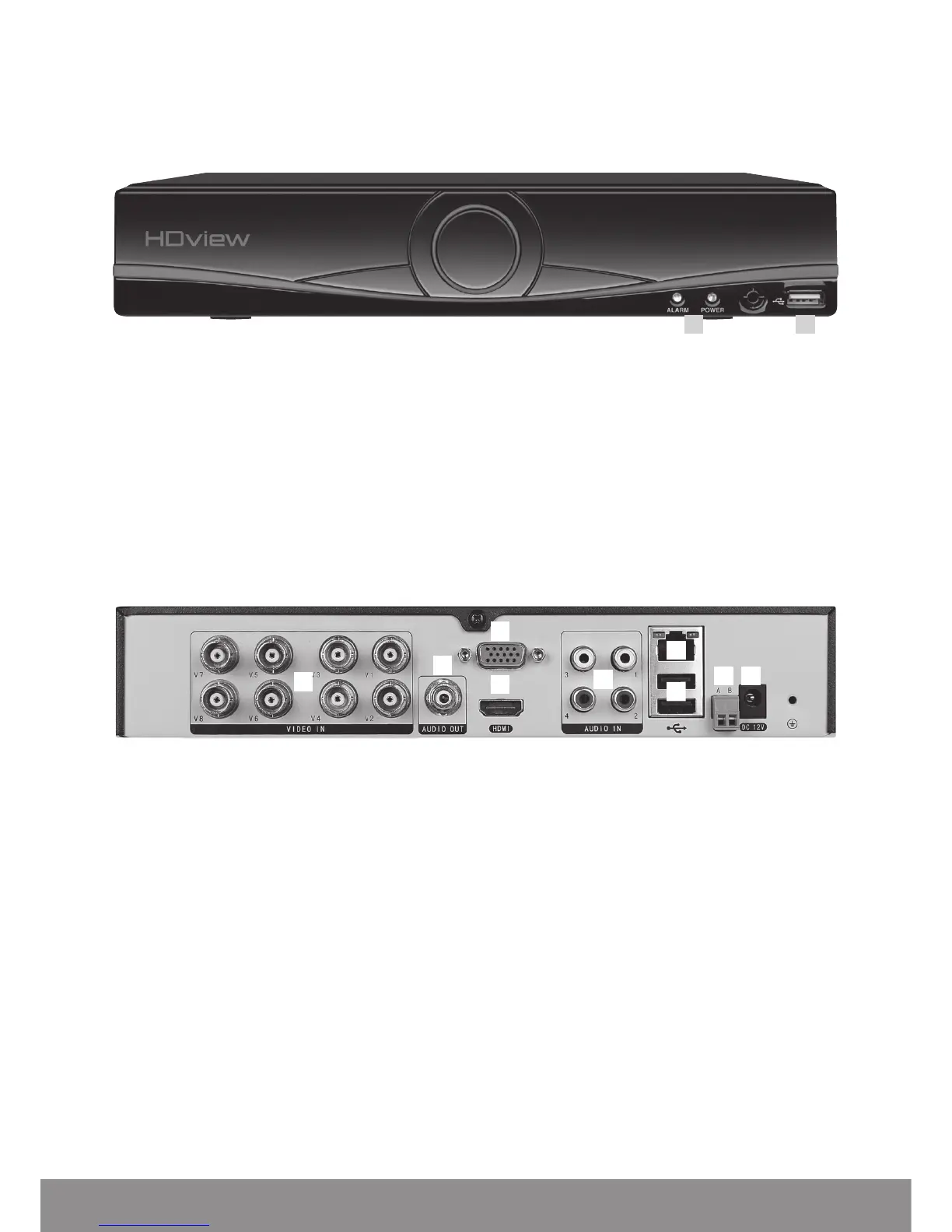

DVR DESCRIPTION
FRONT PANEL
1. System indicator lights
2. USB for mouse or USB stick
1. VIDEO IN 1-4/8 for video input from camera
2. AUDIO OUT Audio output
3. VGA Output for monitor
4. HDMI Output for monitor
5. AUDIO IN Audio input
6. LAN Socket connection for ethernet cable
7. USB 1 + 2 For mouse control, USB backup and Wifi dongle
8. RS485 + - Signal Control
9. DC12V Power input
