10 MAG816 - Installation and Operation Manual

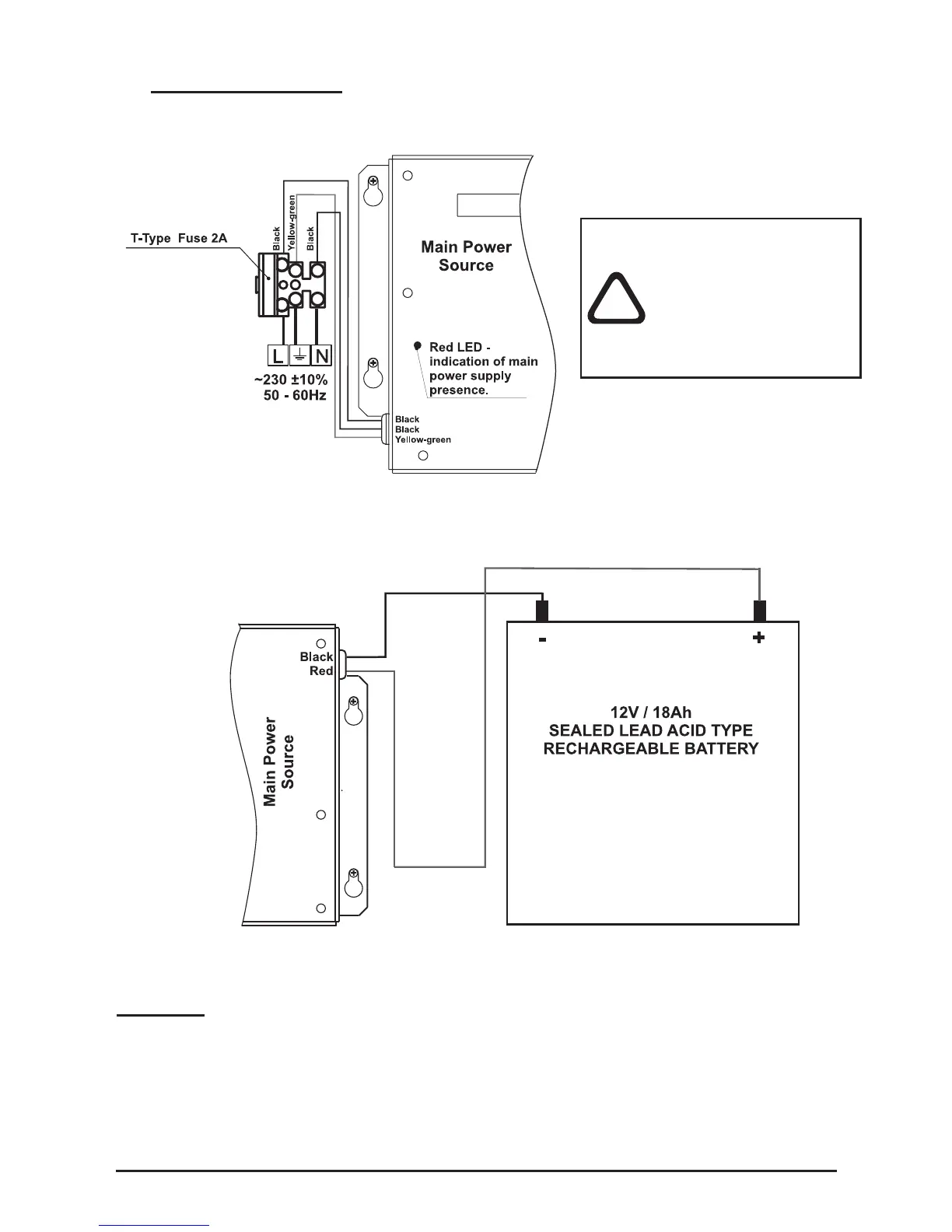

3.5 Main Power Source
Connecting of the Main Power Source
Figure 11.
Connecting to the Battery
Figure 12.
Attention: It is possible that the battery might not be charged at the panel initial start-up.
In this case the BATT LOW/LOST at the control module and the GENERAL FAULT at
the front panel will light on until the battery will be charged up to the required level.
The yellow-green
earthing cable of the
main power source
must be connected
to the middle point of
the terminal!
!
