ESP MAG816 - Configuration of the Basic Modules

8 MAG816 - Installation and Operation Manual

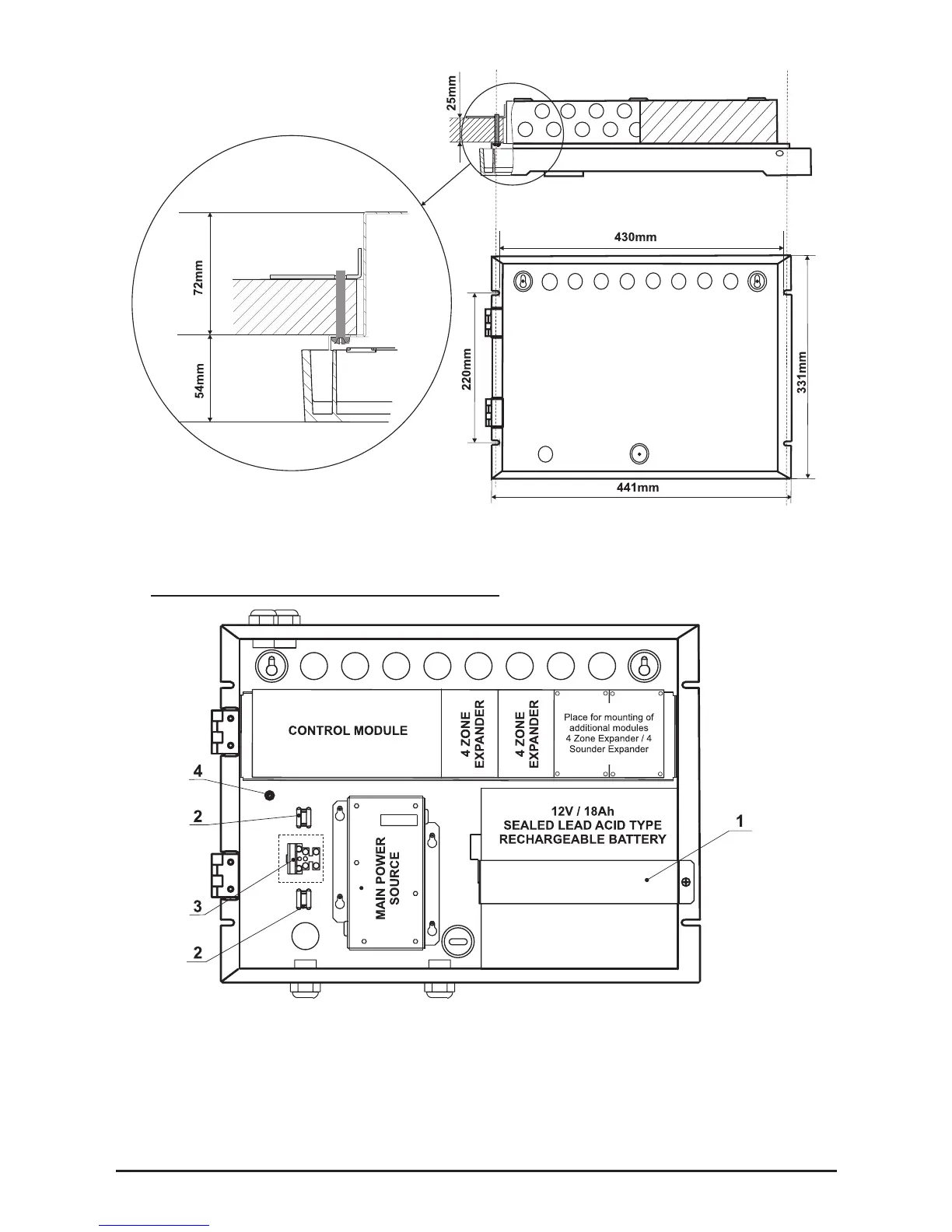

Figure 8. Flush mounting holes.
Main view of the xed to the wall hangers and the bolts supporting the metal box.
3.3 Conguration of the Basic Modules
Figure 9.
• 1 - Metal clamp for supporting the battery.
• 2 - Clamp for supporting the main power supply cable.
• 3 - Terminal for connecting between the mains power supply and the power
source. T-type fuse 2A (Position 3, page 31).
• 4 - Earthing point.
