2. Device
2.1 General Descritpion of Device
This device aims to take the measurements of SPH, CYL, AXIS, prism refractive power and
optical axis coordinate of unprocessed lens, processed framed lens and contact lens, and to
put dots on them to find its axis.
As an external feature, the angle of the LCD can be changed.
Refer to “3. Instructions for Use” about the operating precautions of this device.

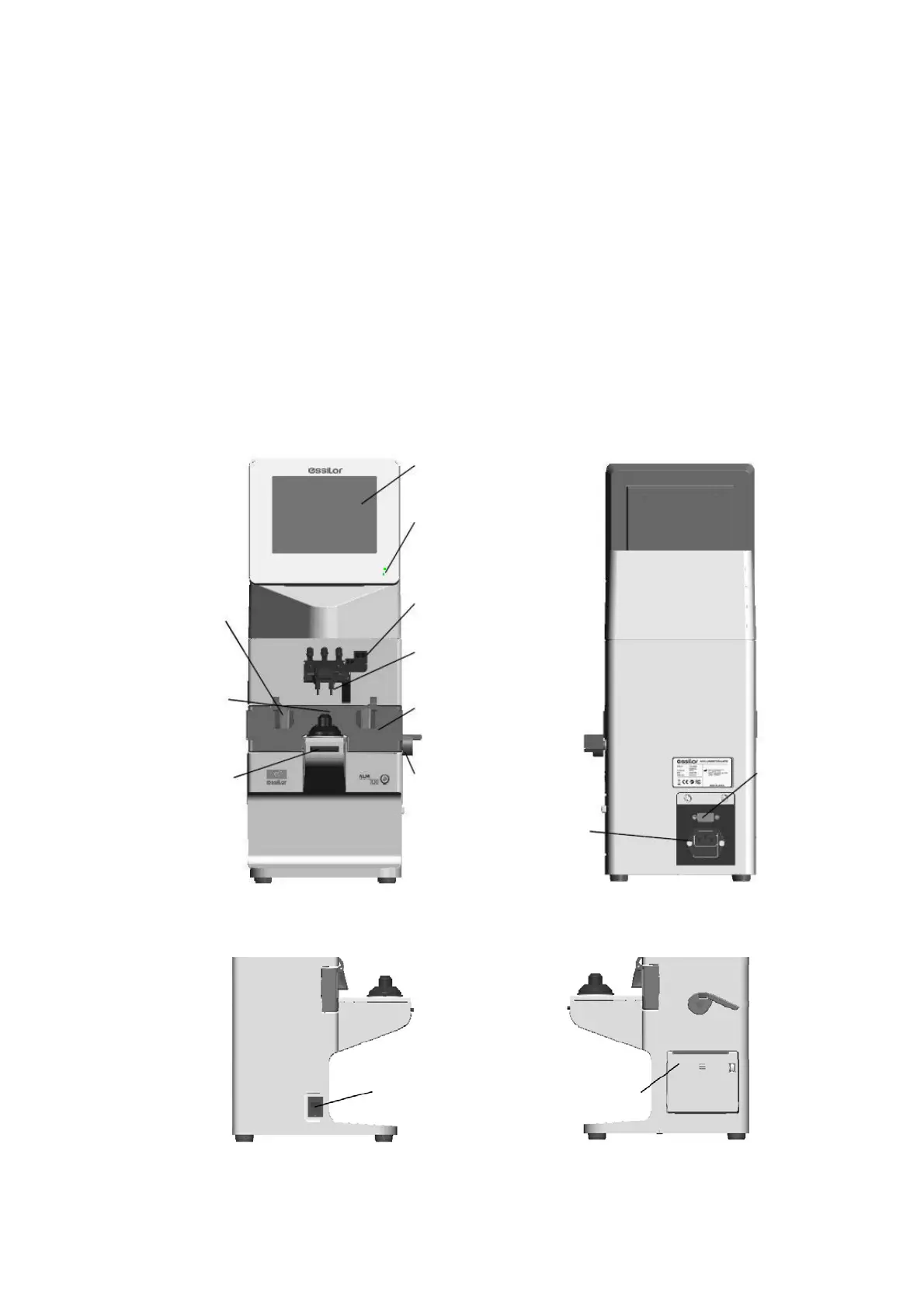

2.2 Parts Identification
Nose pad
Pilot lamp
Marking lever
Lens holder
Communication
connector
Power inlet
(with fuse holder)
LCD (with
touch panel)
Lens stand
Lens plate lever
Lens plate
Memory/Add
switch
Power switch
Printer
To Next Page
