50
USB Port
Only VN630W
owns 2 USB ports
System Connector on ISO
System Connector on open cables
or
8
13
10
9
11
7
AM/FM Antenna
Fuse (10 A)
External BT-Microphone
Var. System Connections
Audio Outputs with Remote Turn On
Audio / Video Outputs
Audio / Video / AV Inputs
Camera Connections
14
12
GPS Antenna
5
6
A8
B8
A7
B7
A4
B4
A3
B3
A6
B6
A5
B5
A2
B2
A1
B1

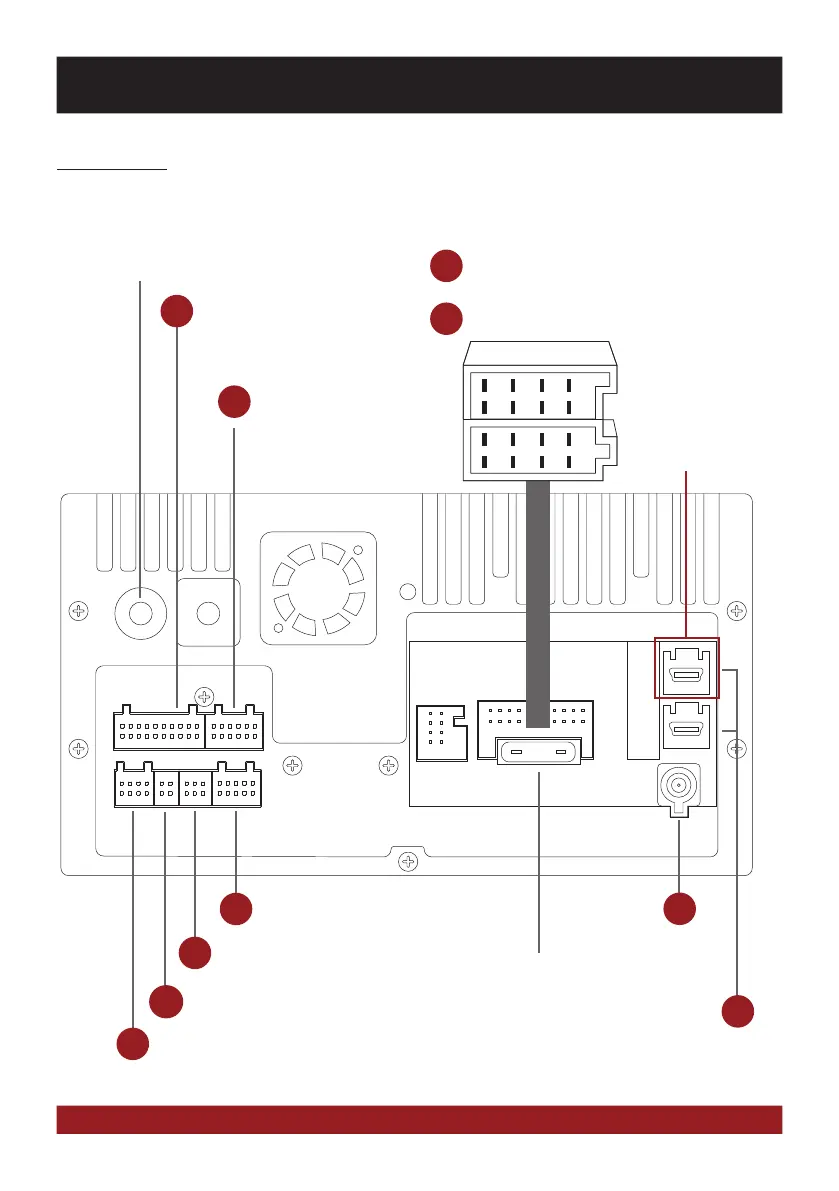

INTERCONNECTION
Important note: Usually this devices requires a double-DIN installation slot and standard ISO power/speaker
terminals. Check before connecting the correct assignment of constant plus (ISO chamber A4), ignition plus
(ISO chamber A7) and ground (ISO chamber A8), even with on existing ISO connections! Use appropriate
vehicle-specific adapters from the accessories trade if necessary.
QUICK CHARGE
USB-PORT
