ETC ColorSource - Introduction

6 Electronic Theatre Controls, Inc.

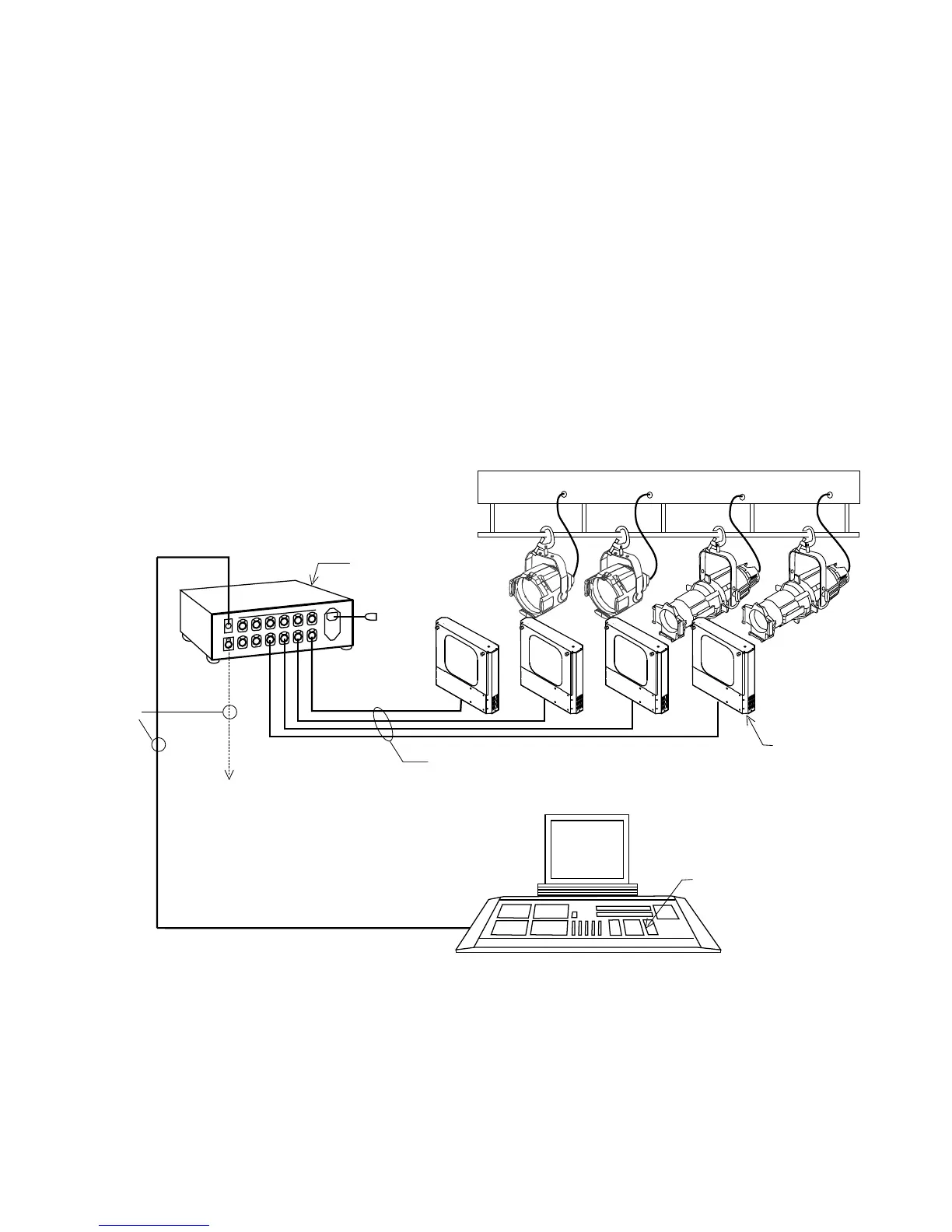

The ColorSource system
The ColorSource system consists of one or more ColorSource
Color Changers and a ColorSource Power Supply which can power
and control up to 12 scrolling Color Changers. The DMX512
control signal from the lighting board is connected to the power
supply and can continue on to more ColorSource power supplies
or other DMX512 controlled devices. The power supply sends
both power and control signal on a single cable, eliminating the
need for a separate power cable for each color changer.
COLORSOURCE OUTPUT
DMX IN
DMX OUT
1 2 3 4 5 6
7 8 9 10 11
12
AC POWER
To additional
ColorSource
Power Supplies
Control console
Power
ColorSource
Power Supply
ColorSource
Color Changer
DMX512
Power/signal cable (100 feet maximum)
Up to 12 per Power Supply
