Color frame holder
The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames
and accessories from falling out. See Figure 2.
Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.
Step 2: Insert the color frame.
Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.
WARNING:
Make sure all color frame accessories are locked in position with the
retaining clip before hanging the Source Four.
Note:
The performance of saturated colors may be less than desirable in any theatrical
lighting fixture, especially when equipped with a 750w lamp. For best results,
always use high-quality color media rated for high-temperature use.
ETC’s optional Gel Extender, part # PSF1029, will provide maximum color media
life. The use of any gel extender accessory may limit the coverage of any wide-
angle lens or beam setting.
A variety of heat shield products is also available from many color media
manufacturers. Follow the manufacturer’s instructions for the use of these
products.

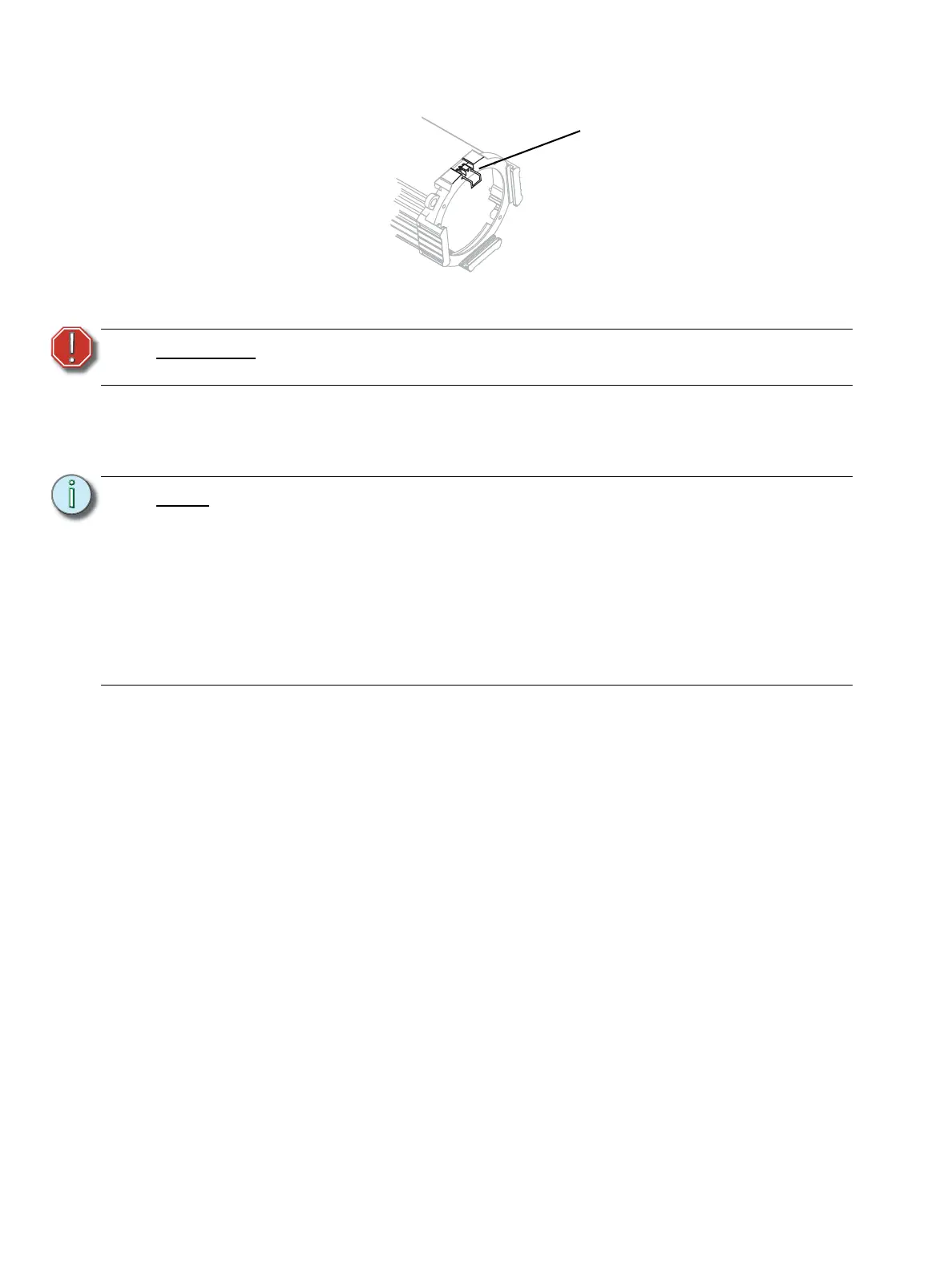

Figure 2
Retaining clip in the
locked position
