45

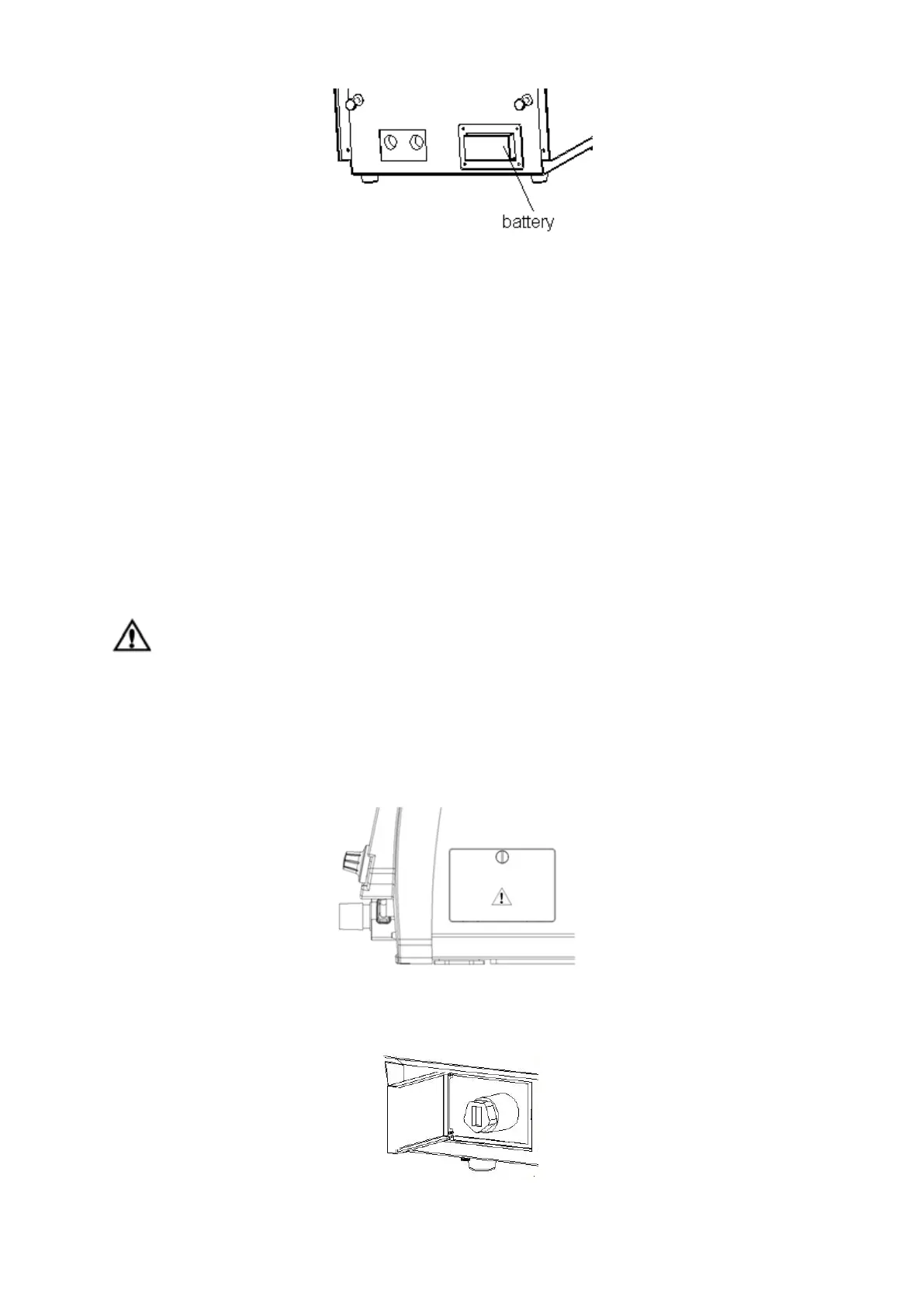

Figure 7-13 replace battery package
Replacing steps:
1 Using a cross screwdriver, lift open the battery box cover.
2 Remove the battery package from battery box and unplug the connector from cable.
3 Replace with battery package indicated by Eternity and plug the connector reliable.
4 Using the same cross screw driver, screw in tightly.
7.7 Maintaining Oxygen sensor
The oxygen measurement is based on the principle of a galvanic cell. The monitored gas diffuses
through a membrane into the electrolyte in the sensor. The electrolyte contains aworking electrode
and a reference electrode. The oxygen is reduced electrochemically and the resultant current is
proportional to the O2 partial pressure in the gas.
7.7.1 Replace O
2
sensor
WARNING: Comply with the relevant rules about biohazard when to disposesensor.
Replacement steps:
1 Using a cross screwdriver, open the oxygen sensor box cover.
2 Disconnect the cable and unscrew oxygen sensor from inspiratory module.
3 Replace it with a new one, and connect the cable to O
2
sensor.
4 Using the samescrewdriver,install the oxygen sensor box cover.
+.
Figure 7-14 replace oxygen sensor
Figure 7-15 unscrew oxygen sensor box cover
