42
6.Touch Screen Cali
For touch screen verification

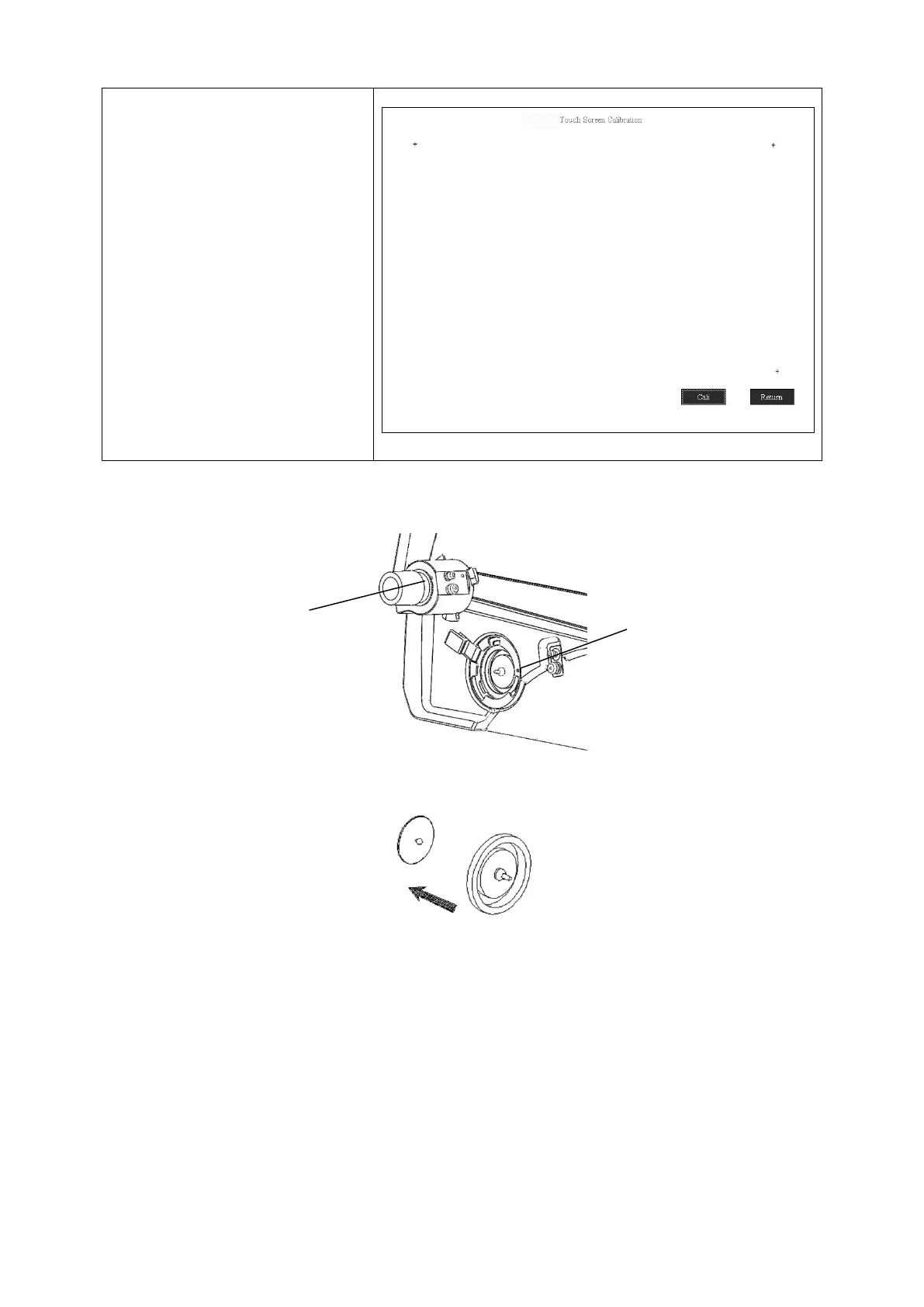

Figure 7-8 Touch Screen Cali interface
7.3 Assembling the expiratory module
Figure 7-9 assembling for expiratory valve body
Figure 7-10 assembling for diaphragm
Assembling steps:
1. Insert the support plate into diaphragm.
2. Diaphragm placed in the installation of the exhalation valve seat internal.
3. Pressing down the locking device on the exhalation valve seat. Alignmenton the exhalation
valve to exhalation valve seat mounting location, rotate it clockwise take off expiratory module.
then the locking device returns to locked status automatically.
