Legend 548 Assembly and User Manual - 11
30068-02A

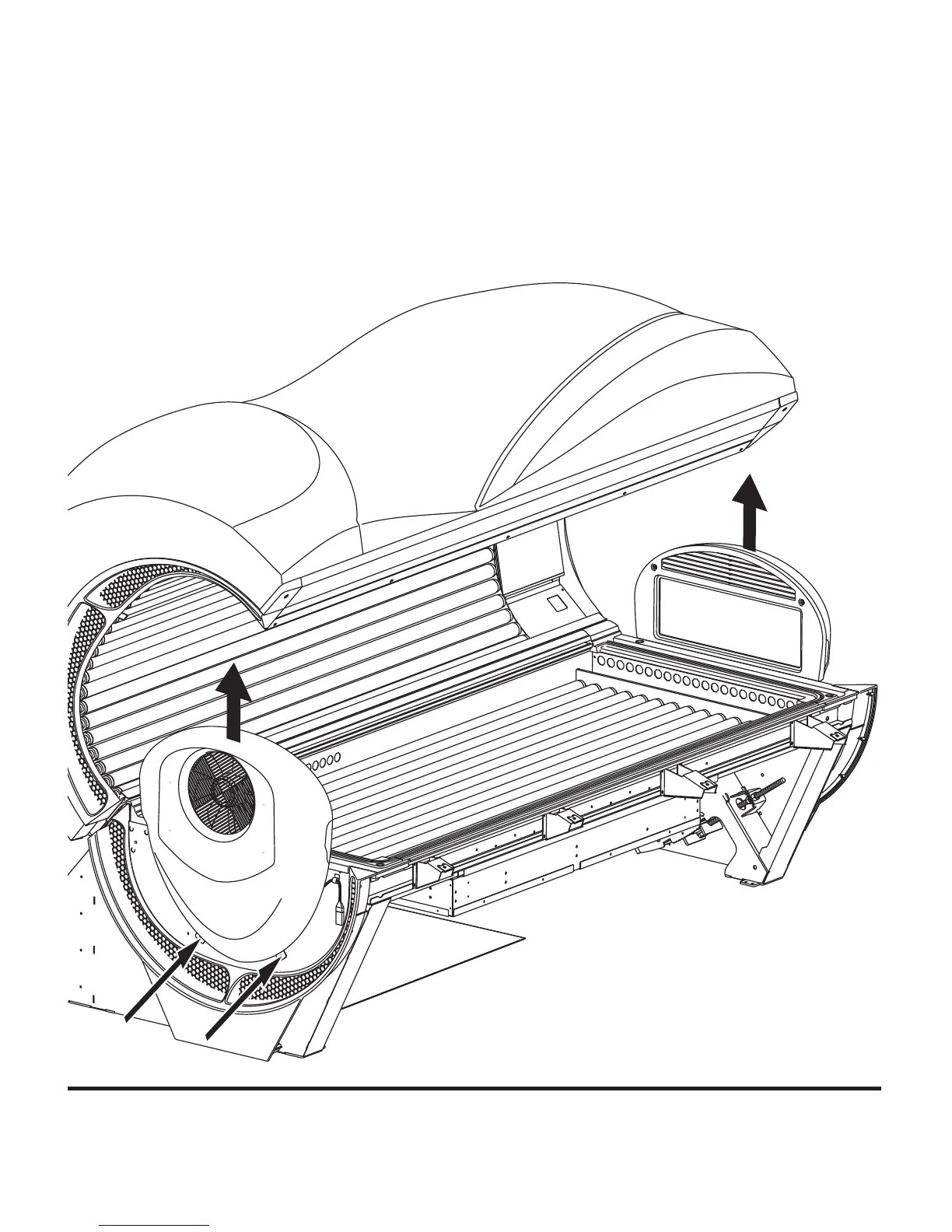

The body fan is held in place with (2) #10-
24x1/2” screws at the bottom. Remove
these screws, then lift the body fan assembly
straight up and off the bed. Be careful of the
power cable.
The shoulder tanner comes off in the same
manner.
