10 - Legend 548 Assembly and User Manual
30068-02A
Find the harnesses under the bench and dis-
connect them all. Don’t worry about mixing
them up. They are all keyed to only connect
to their proper mate.

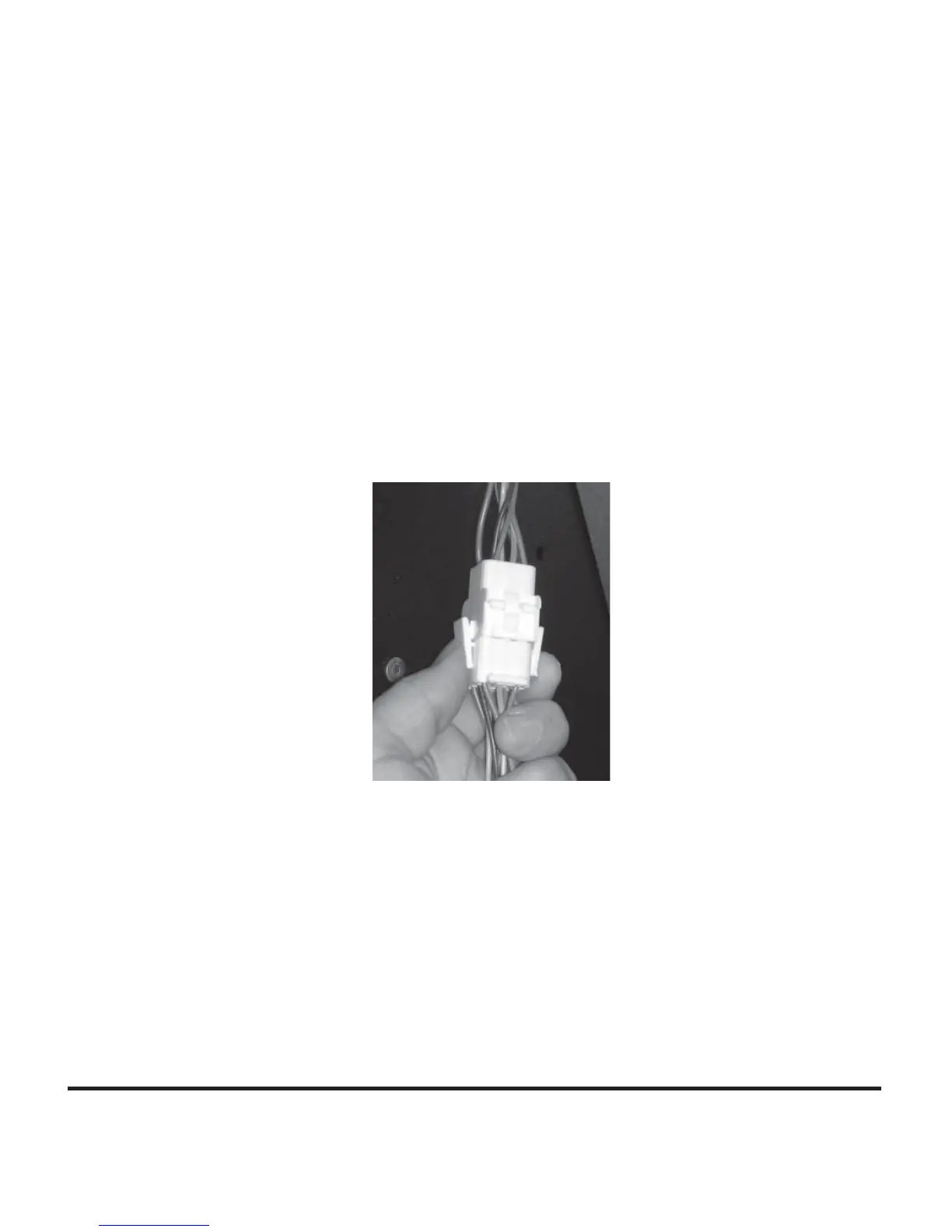

Most harnesses connect with locking re-
ceptacles, like the one shown below. Sim-
ply squeeze the “wings” on either side and
pull the connectors apart. Do not pull on the
wires.
A few of the connectors have a wire tie
around them. This wire tie is removable and
does not need to be cut.
Note: You may fi nd it helpful to label the
cables for ease and speed of reassembly. A
simple number on the connector with a felt
tip pen works great.
