Legend 548 Assembly and User Manual - 17
30068-02A

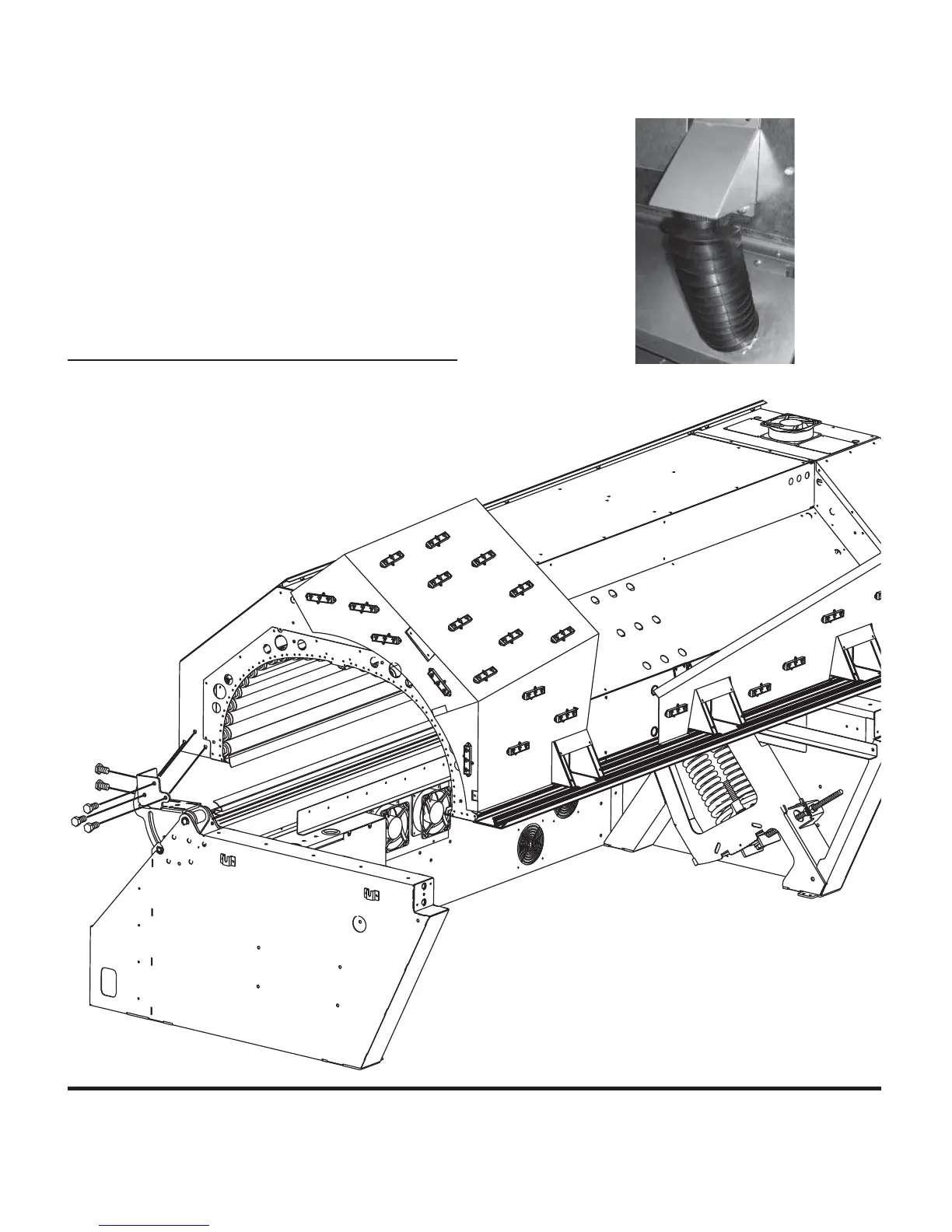

BELLOWS
On the back of the canopy, toward the foot
end, is a rubber bellows protecting the wir-
ing from the bench to the canopy. Discon-
nect one end of the bellows by loosening
the clamp holding it in place.
Pull the cables from the canopy out of the
bench. You may fi nd it helpful to tape or tie
the cables up so they do not get in the way
when moving the canopy.
Make sure the shipping pins are installed.
Remove the (5) 3/8-20x1” hex bolts on each
end of the canopy that attach it to the lift
system. Make sure something or someone is
holding the front of the canopy so it does
not fall.
Remove the canopy.
