CHECKING OR REPLACING FUSES

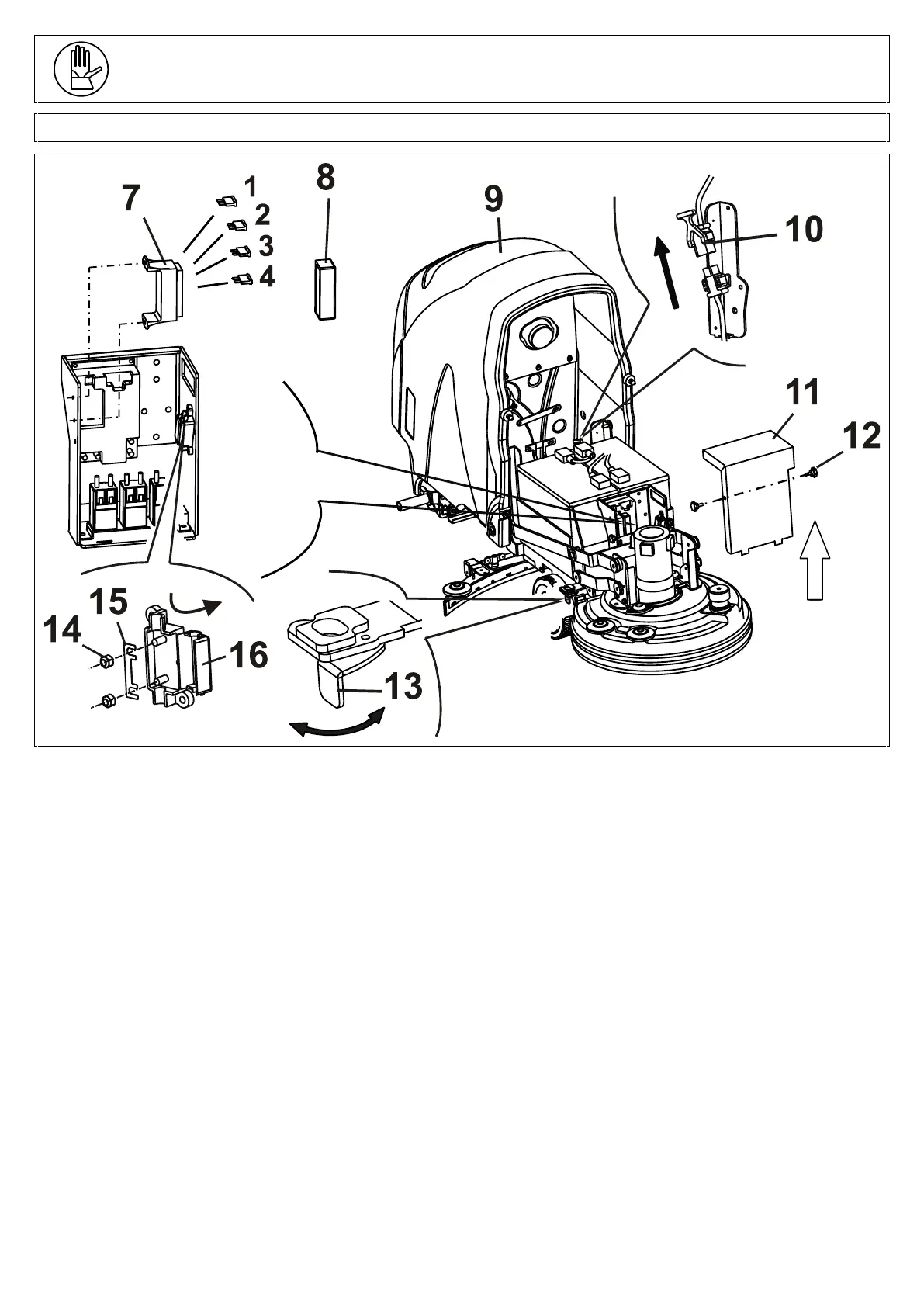

CHECKING OR REPLACING FUSES IN THE FRONT SWITCHBOARD
To check or replace the fuses on the switchboard proceed as follows:
 Drain both tanks into the special drainage areas;
 Bring the machine into a stop position in a flat surface area and put on the brake;
 Unplug the battery plug (see position 10);
 Unfasten the tank (see position 9) by pushing it inwards using the small levers (see position 13) located at both ends of the
machine;
 REACH THE DRIVER’S POSITION AND LIFT THE TANK BY THE GRIPS (POS. 15) PAYING ATTENTION TO
HANDLE IT WITH CARE WHILE PUTTING IT DOWN ON THE GROUND;
 Unscrew the 2 screw knobs (see position 12), pull upwards and remove the switchboard cover (see position 11);
 Remove the lid (see position 8) from the fuse holder (see position 7);
 There are 5 fuses located in the fuse holder and they have the following functions and features:
POSITION 1: 5A fuse for electrical equipment protection;
POSITION 2: 30A fuse for drive system protection;
POSITION 3: 5A fuse for electronic drive board protection;
POSITION 4: 30A fuse for suction motor protection;
 Fuse holder pos. 16, 30A fuse for E51-M510, 40A fuse for E61-M610: BRUSH MOTORS PROTECTION;
 Once the fuses are checked or replaced, put everything back together and bring the machine back to its operating condition.
