SETTING UP THE MACHINE

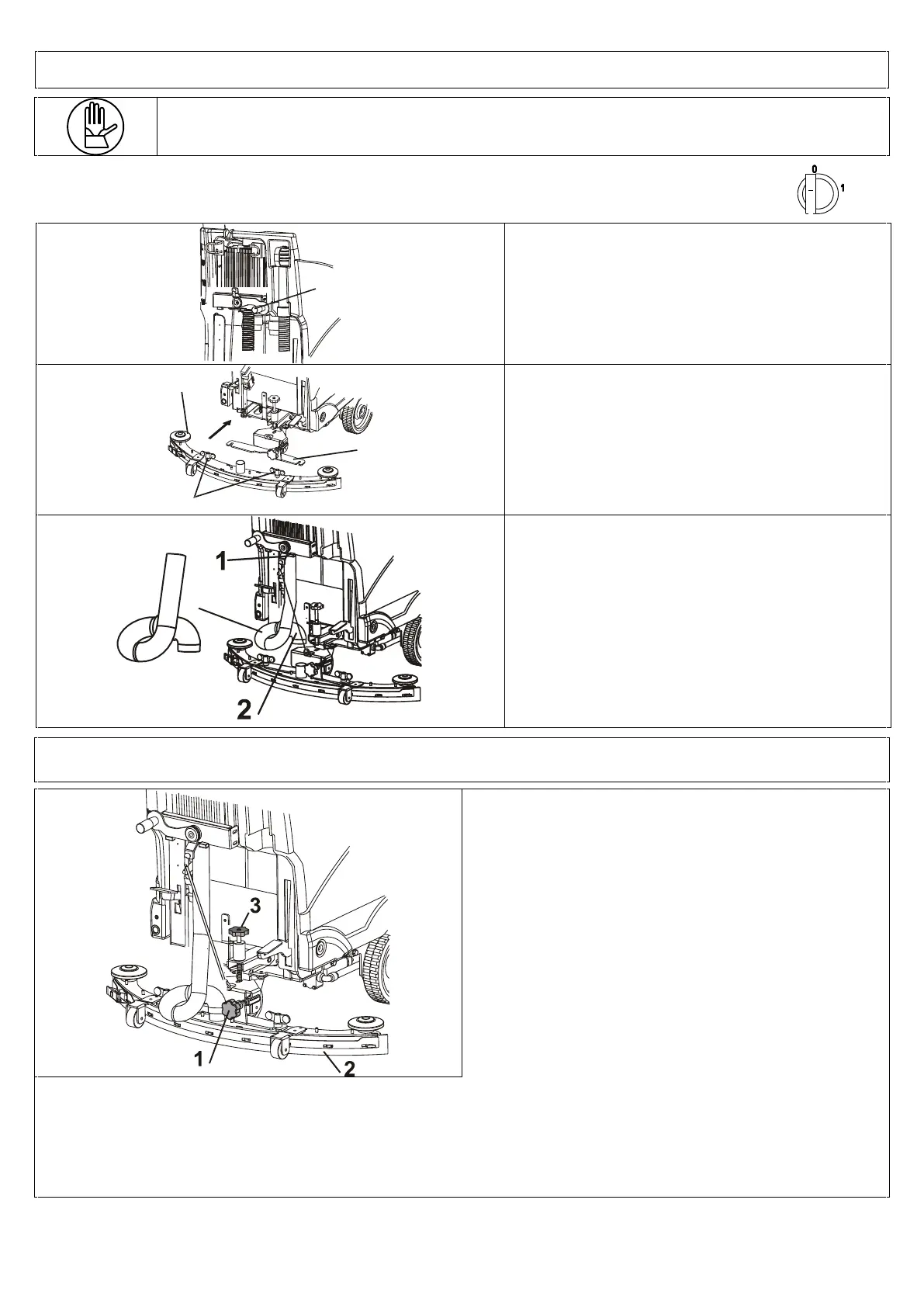

Follow the instructions below to mount the squeegee to the machine:
park the machine on a flat surface, put on the brake (if available) and remove the key (if available);
Position the squeegee lever into position 1 (raised
position).
Fit in the squeegee (position A) into the squeegee
support (position C).
Once the squeegee is fitted completely, secure the
knobs (position B).
Connect the squeegee hose from the straight side
(position 1) into the special seat located on the
bottom of the tank and press down hard until it fits
into place completely.
Mount the other end of the hose, from the roll-up
side (position 2) into the squeegee.
The hose’s curve will be used as an anti-drip
device
There are 2 types of adjustments that can be carried out on the
squeegee:
Inclination adjustment with knob (position 1).
It adjusts the inclination of the squeegee in order to have a
constant pressure over the entire length of the blade (position
2).
Turn the knob counter-clockwise if there is too much pressure
on the outer points and little pressure on the central area.
Turn the knob clockwise if there is little pressure on the outer
points and too much pressure on the central area.
To make the adjustment lower the squeegee, turn on the
suction fan and drive forward slowly. Examine the pressure
distribution on the blade and if necessary correct the
inclination as described above.
Pressure adjustment using the knob in position 3.
This allows for optimal pressure on the blade (position 2) which can be adjusted for each type of floor and for each type of blade.
For rough floors or uneven floors, increase the pressure by turning the knob (position 3) clockwise.
For smooth floors, lower the pressure by turning the knob counter-clockwise.
