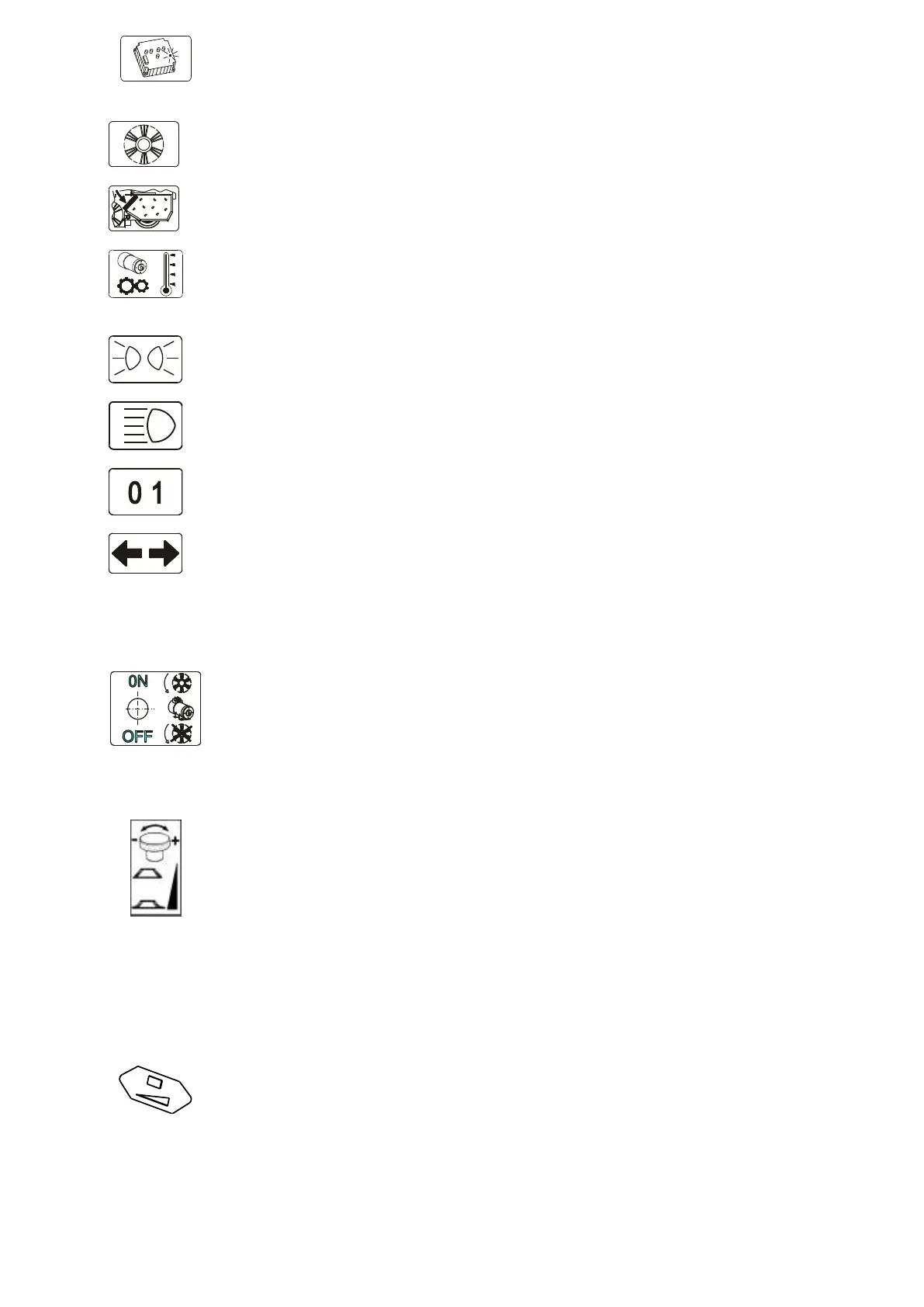

GREEN LED OPERATION AND MALFUNCTION INDICATOR TRACTION
MOTOR ELECTRONIC CONTROL
With the key inserted and everything working properly the led remains on. If it blinks, it
shows there is a failure or malfunction.
GREEN LED CENTRAL BRUSH OPERATION
The led remains on when the brush is in operation.
RED LED RUBBISH CONTAINER CLOSURE
The led remains on when the dirt container is closed.
RED LED ADVANCEMENT MOTOR TEMPERATURE
When the temperature of the motor structure exceeds 75-85 °C the led comes on, the
motor cuts out and the alarm beeper starts to sound.
TRANSPARENT LED DIPPED BEAM HEADLIGHTS
Led on when the headlights are on
ORANGE LED FULL BEAM HEADLIGHTS
Led on when the headlights are on
GREEN LED LINE VOLTAGE ON
The led remains on when the key is inserted
GREEN LED INDICATOR LIGHT OPERATION (OPTIONAL)
The led flashes when the command is on
HEADLIGHT AND HORN SWITCH
When turned clockwise, the headlights come on
When pressed, the horn sounds
BRUSH MOTOR SWITCH
When the lever is at “ON”, the motor is on
When it is at “OFF”, it is off
SIDE BRUSH CONTROL LEVER
With the levers in a vertical position the brushes turn
With the levers down they are still.
SIDE BRUSH PRESSURE ADJUSTMENT WHEEL
The pressure of the brush on the floor increases when turned in a clockwise direction.
KEY-CONTROLLED SELECTOR SWITCH
When the key is turned in a clockwise direction, the led in position 10 comes on
BATTERY CHARGE INDICATOR
Green battery charge led
When the red led comes on the brush motor stops: recharge the battery
Important: unless otherwise indicated on the order, the indicator features a standard setting
for lead-acid batteries.
In case different batteries are fitted (GEL, AGM, etc.) the setting must be changed to avoid
damaging the batteries. (SEE PAGE 36)
INDICATOR LIGHT SWITCH (OPTIONAL)
When on, the led in pos. 11 blinks
