27

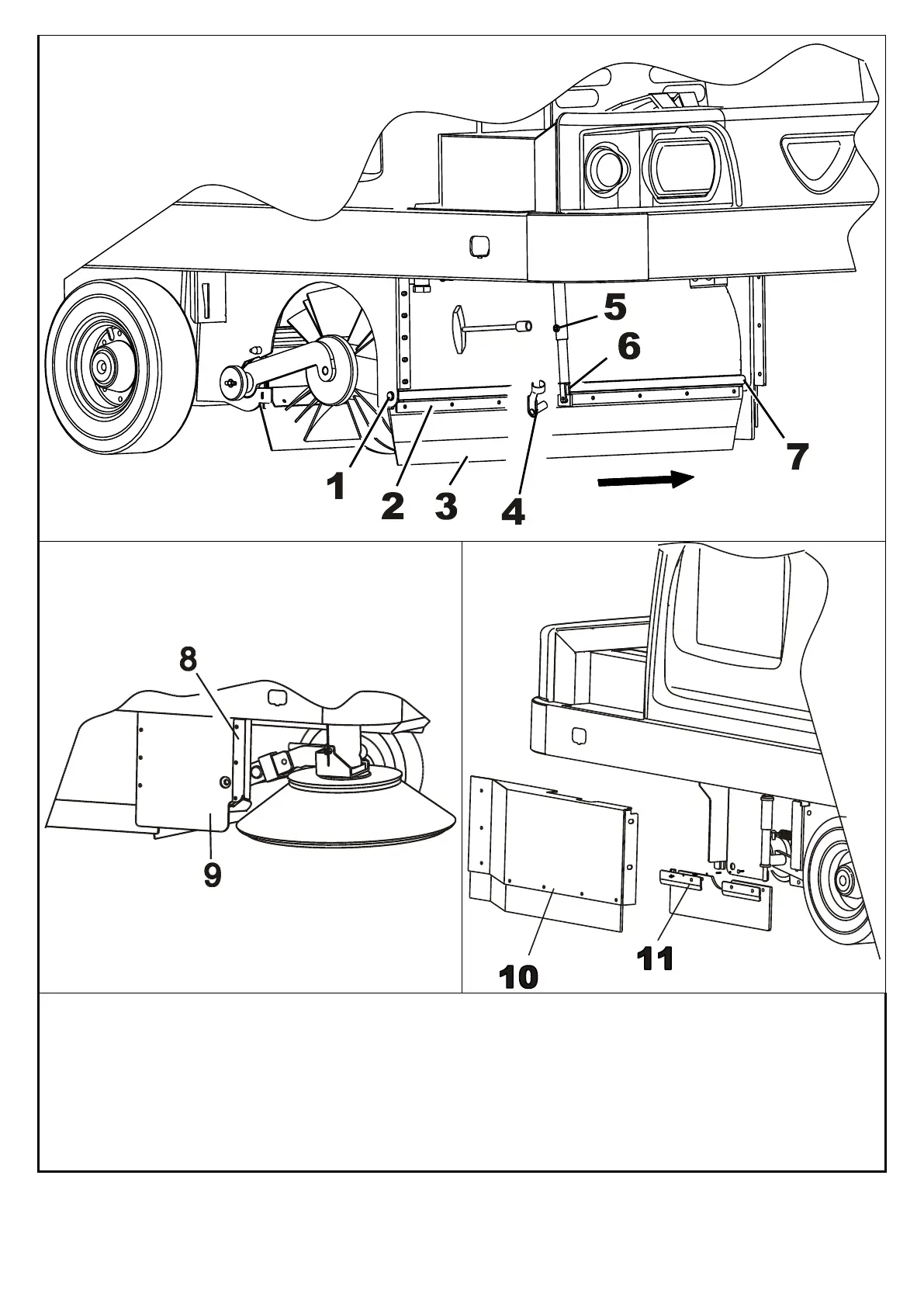

1. RIGHT-HAND SIDE FLAP SEAT
2. RUBBER BLOCK STEEL SHEET
3. FLAP SEALING
4. CLIPS
5. DEVICE BLOCKING SCREW
FLAP CONTROL
6. FLAP HOOK FORK
7. LEFT-HAND SIDE FLAP SEAT
8. RUBBER BLOCK STEEL SHEET
9. SIDE CLOSURE SEALING
10. LEFT SIDE DOOR
11. LEFT-HAND RUBBER BLOCK STEEL SHEET
