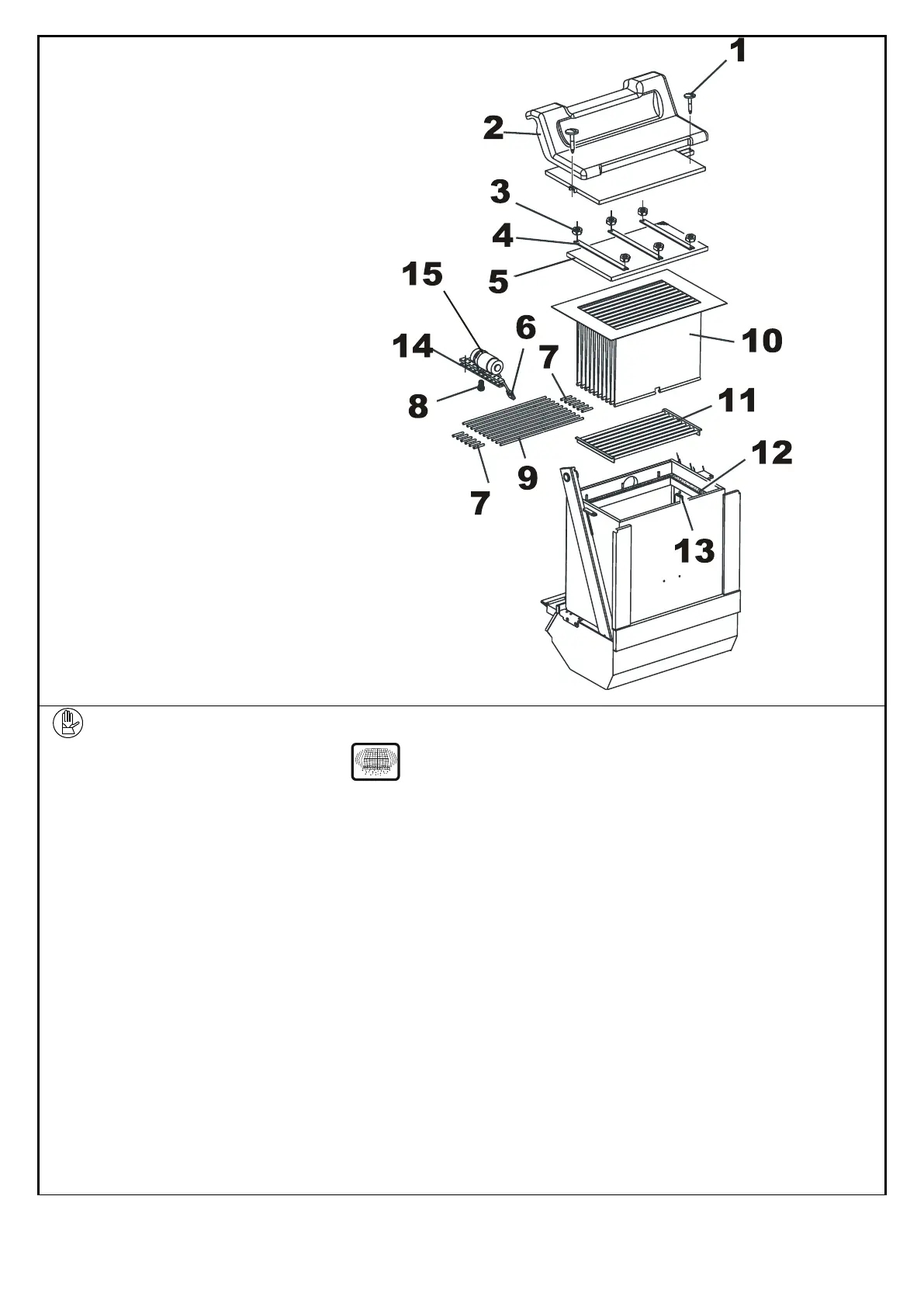

1. FILTER CAP FIXING SCREW
2. FILTER CAP
3. NUTS
4. LOCKING PLATES
5. FILTER HOLDING MESH
6. MOBILE CONNECTOR
7. SPACER BARS
8. MOTORISED SHAKER LOCKING
SCREW
9. FILTER STRETCHER BARS
10. BAG FILTER
11. FILTER SUPPORT
12. FILTER SEALING
13. FIXED CONNECTOR
14. PLATES LOCKING MOTORISED
SHAKER ON BARS
15. MOTORISED SHAKER
FILTER REPLACEMENT
Carefully shaker the filter
Remove the key and remove the battery connector
Remove the screws pos. 1
Remove the filter cap pos. 2
Remove the fixing nuts pos. 3
Remove the plates pos. 4 and the blocking mesh pos. 5
Raise the filter and disconnect the connector pos. 6
Position the filter on a table
Undo the locking screws of the motorized shaker pos. 8.
Remove the motorised shaker pos. 15
Remove the remaining screws and undo the two plates pos. 14
Remove the bars pos 9 and the spacer bars pos. 7 from the filter.
Remove the filter support pos. 11
Remove the filter pos. 10
Refit all the parts by following the above phases in reverse order.
Check that the sealing pos. 12 is in good condition and, if necessary, replace it.
Refit everything being careful to insert connector pos. 6 correctly
