1 INTRODUCTION MC608
1.3 PRELIMINARY NOTES
Main parts of the electromagnetic owmeter are:
» Sensor – installed in the tube with the use of anges and other joints;
» Converter – can be installed on the sensor (in compact version) or remotely (in remote version)
connected with two pipes.
Electromagnetic owmeters have many important advantages compared to their mechanical counterparts,
such as: exceptional long-term stability, maximum process reliability and zero maintenance. As a result,
these sensors can provide accurate and reliable long-term measurements.
See the following paragraphs for more detailed information on correct installation.
NOTES:
Electromagnetic owmeters are designed specically to operate under the following basic
conditions:
1. The liquid must be conductive
2. The tube must always be completely full
3. The input and output distances must be on recommended settings
4. The grounding instructions must be followed
1.4 PRODUCT IDENTIFICATION
Each MC608 Converter manufactured by EUROMAG INTERNATIONAL has a STANDARD identication
plate (Fig. 1) or OIML (Fig. 2), that displays the following information:
STANDARD PLATE:
» CE conformity mark.
» MODEL: converter model.
» IP: converter protection class.
» S/N: serial number which identies the device.
» TEMP: minimum/maximum temperature of the
working conditions.
» POWER S.: power supply or battery voltage
(MC608B).
» Hz: power supply frequency.
» COUPLING: serial number which identies the
sensor connected to the converter.
» OPTIONAL: other modules can be added.
»
: This symbol means that the product must be
disposed of according to the legal requirements.

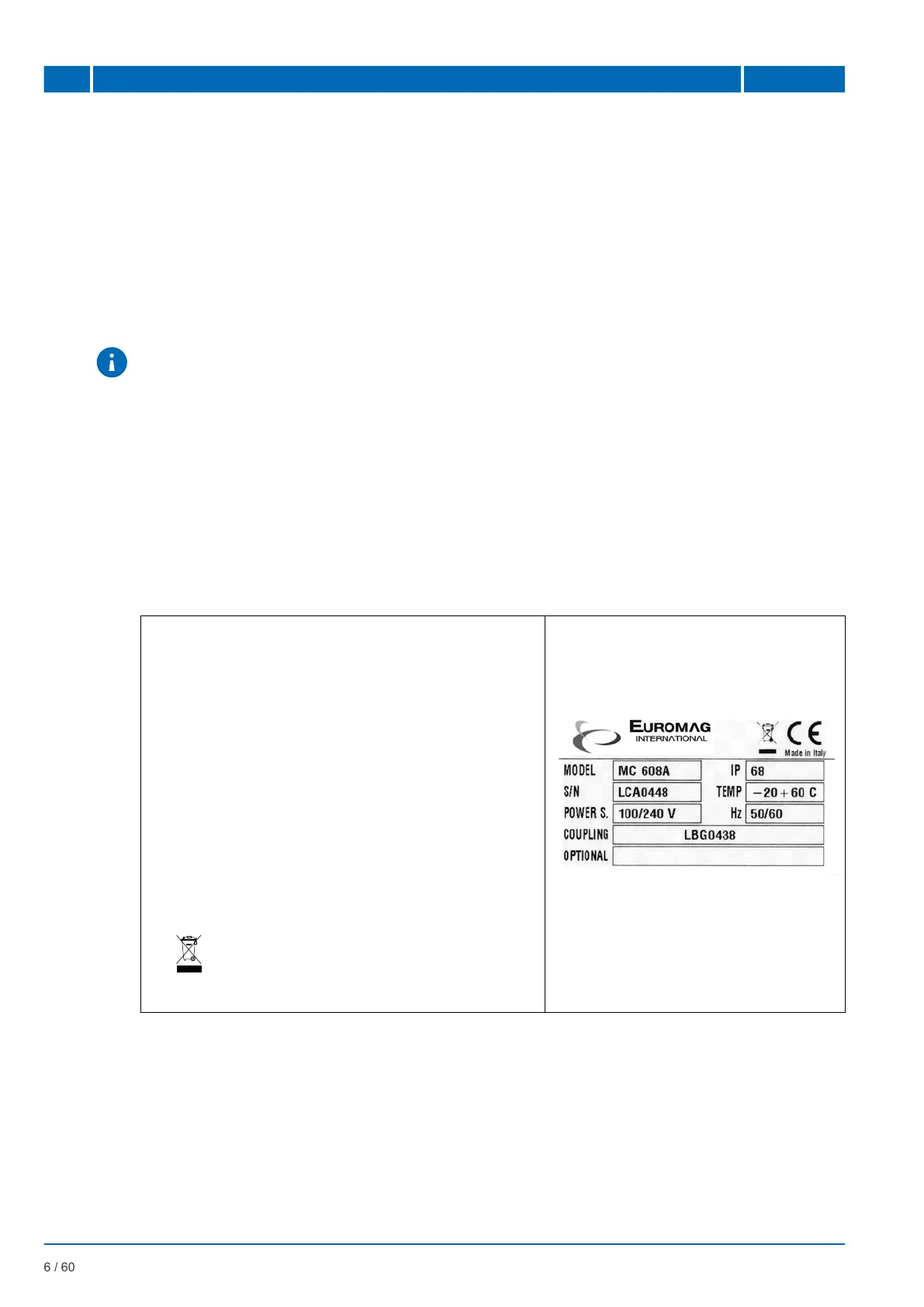

Fig. 1 STANDARD Identication Plate
