MT70InstallationandInstructionsofuse

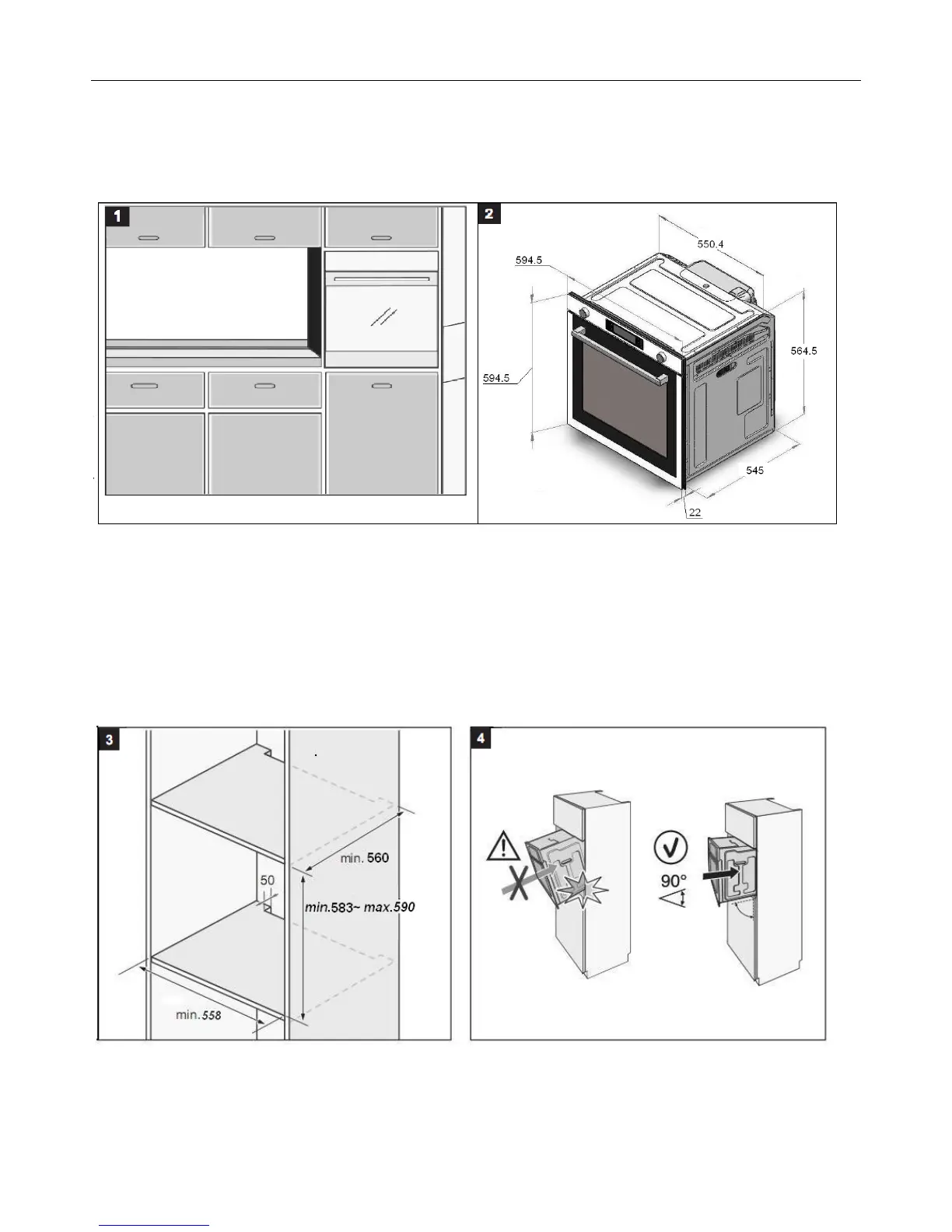

Tower Installation (Figure 1 below)
Figure 2 shows the product dimensions of this oven and the housing must be constructed to fit the oven.
The oven should be slid into place at the proper angle of alignment.
Minimum carcass dimensions are outlined in Figure 3 to house the oven. The front fascia of the oven rests
against the front edges of the carcass. Side panel front edge, drawers and cupboards will meet up with the
front face of the oven door for a flush mounting Figure 1. Note that the tower carcass must have rear cutout
which creates a vent to the rear of the tower ensuring proper for cooling both the oven components and
tower carcass.
Connecting to the mains power supply
Follow instruction as per previous page as this does not differ in a tower installation
The oven should be slid into place at the proper angle of alignment Figure 4. Secure the oven to the carcass
as described on the previous page under the section ‘Fastening oven securely’, as this does not differ in a
tower installation.
