MT70InstallationandInstructionsofuse
Connecting to the mains power supply
Electrical connections must be made as per the connection plate fixed to the back of the appliance by an
approved electrical fitter who must ensure that the appliance has been connected in accordance with
fitting instructions and local regulations.
Where the appliance is not connected to the mains electricity supply by a plug, an Omni polar cutout
device (with a contacts gap of at least 3 mm) must be fitted on the supply side of the connection to meet
safety requirements.

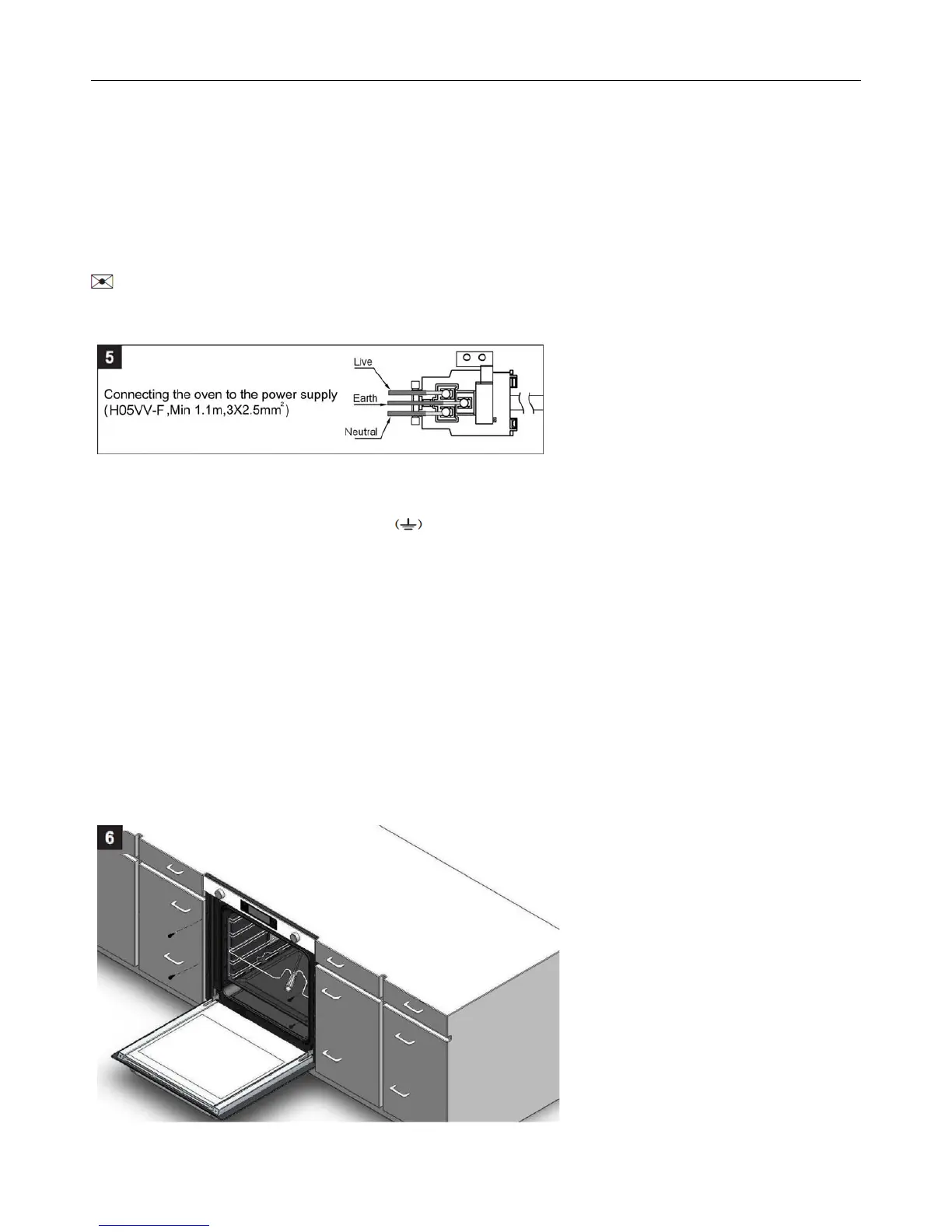

When power is connected, the electronics of the oven are initialized; The electric cable (H05VV-F, Min
1.1m, 3X2.5mm²) Figure 5 must be long enough for it to be connected to the built-in oven standing on
the floor in front of its unit.
Open the back cover of the oven at the bottom (using a flat-bladed screwdriver) and completely unscrew
the connection screw and the cable clamp before fitting conducting wires into the appropriate terminals.
The earth wire must be connected to the terminal of the oven.
If the oven is connected to the power supply by a plug, this must remain accessible once the oven has been
fitted.
We cannot accept any liability in the event of an accident resulting from non-existent or faulty earthing.
Fastening oven securely
Once oven is eased into position of the carcass, open door and screw in the 4 screws through the holes with
plastic grommets located either side of the enamel front frame, two either side. Figure 6. You can use a
cordless drill to start fastening the screws most of the way although it is advised to complete this process by
using a hand held screwdriver ensuring no damage occurs to the enamel front frame from over tightening
with a cordless drill. Ensure the screws are securely fastened to the carcass and that there is no oven
movement when door is opened and closed.
