Instruction Manual TN-100/ T-100
2
Sample Vial
Sample Well
Index Mark
Liquid Crystal Display
Keypad

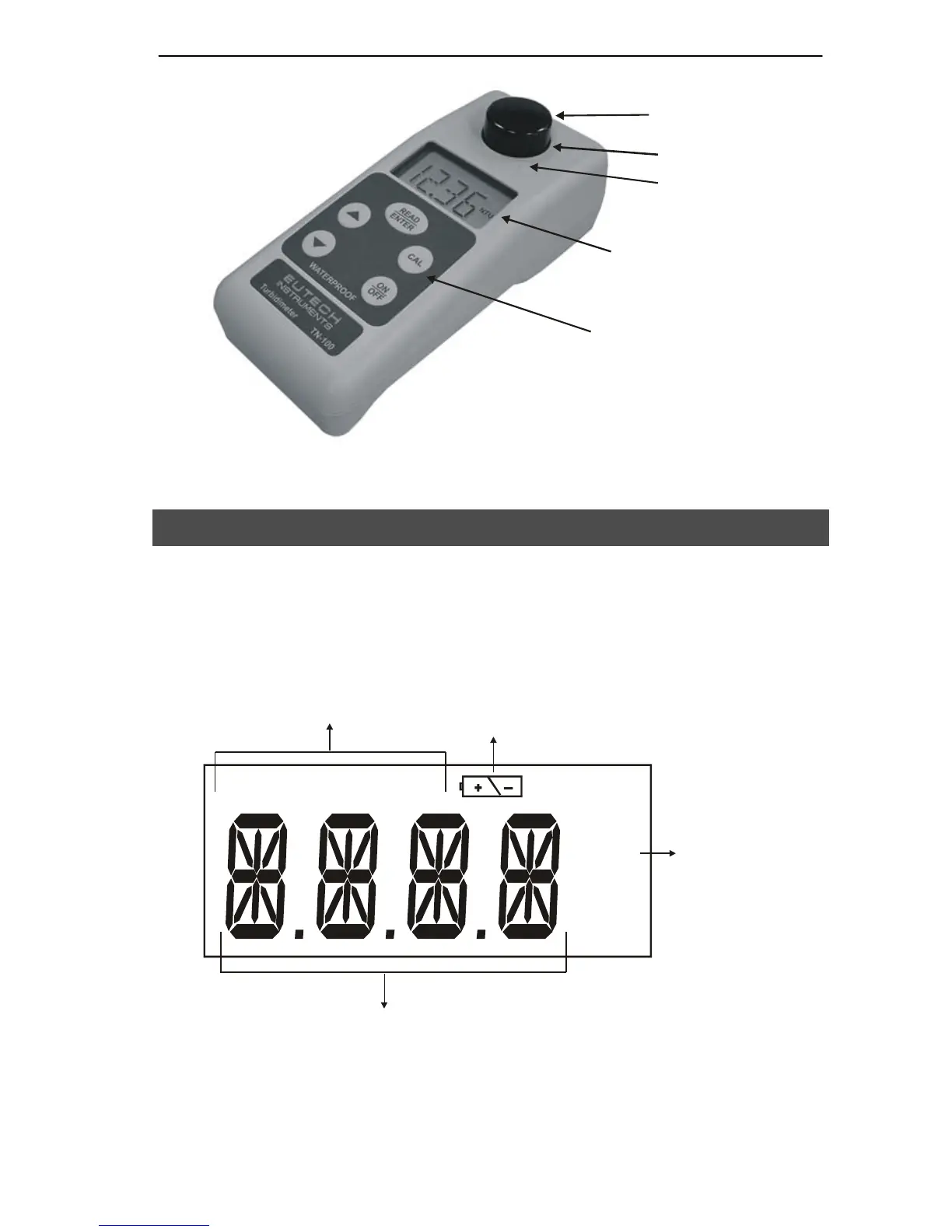

Figure 1: Parts of TN-100/T-100 Turbidimeter
1.2 Display
All the LCD segments and annunciators that can appear on the display are shown
in Figure 2. The display is used for reporting the turbidity reading and to provide
guidance for the operation of the instrument. In addition, the display has several
other annunciators that are used to communicate error messages and provide user
guidance.
CAL 13 CAL 24
mg/l
NTU
ppm
%pH
TAvg
14-segment Liquid Crystal Display
Battery Indicator
Calibration
Standards
Units of
Measurement
Figure 2: Customized LCD with all annunciators
