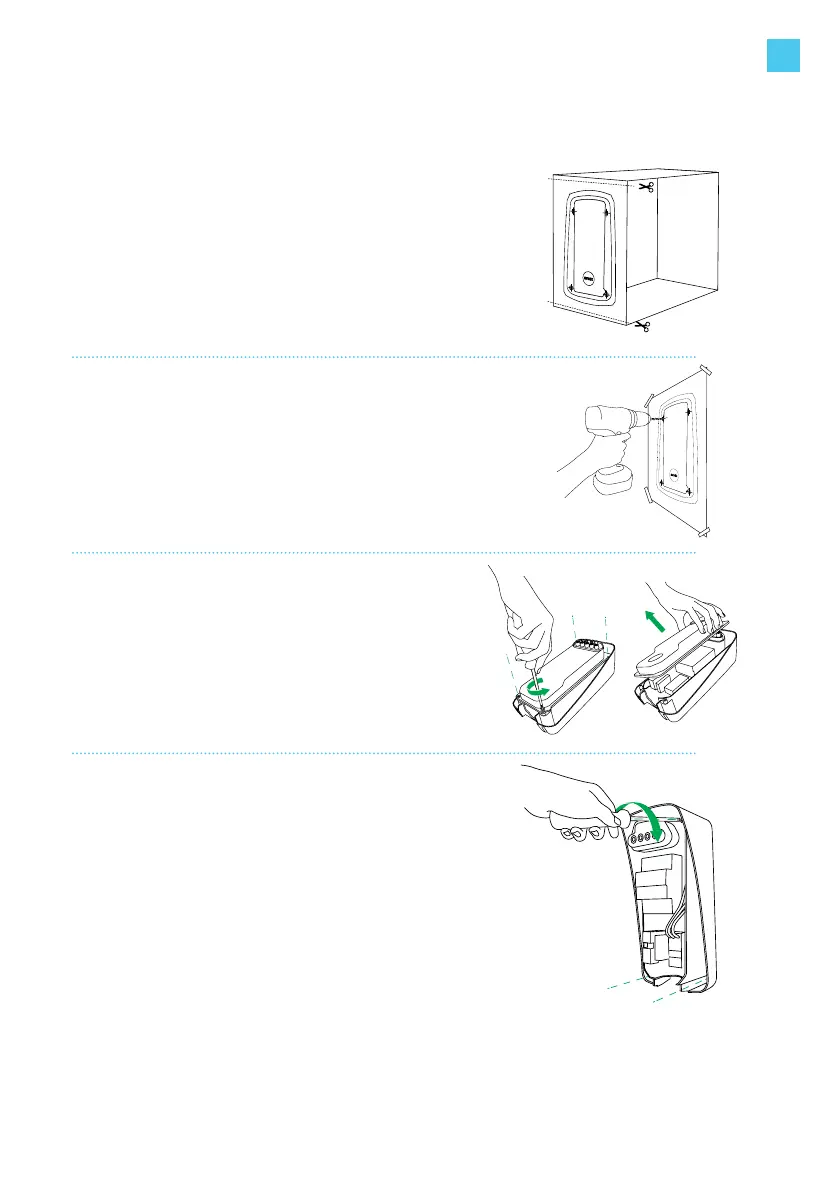

2. Install wall dock
2.1
Select a solid and at vertical surface for installing
the wall dock.
Ensure that the surface is even and solid enough to
resist a pull force of at least 100 kg.
2.2
Find the drilling template at the bottom of the box’s
sleeve. Cut the drilling template out from the sleeve.
2.3
Place the drilling template onto the wall and use a
level device (e.g. bubble level) to align the template.
Mark the 4 mounting points on the wall and remove
the template.
2.4
Drill holes with a drill round of 8 mm.
Use the provided 8x65 mm plugs.
2.5
Remove the transparent cover from the wall dock
by undoing the 4 corner screws (3x Torx T20 using
the supplied T20 bit and 1x slotted using a regular
at-head screwdriver).
2.6
Mount the wall dock onto the wall.
Use the provided 5x70 mm screws. Use the supplied
Torx T25 bit to fasten the screws.
