4.2. Connectors I/O expansions

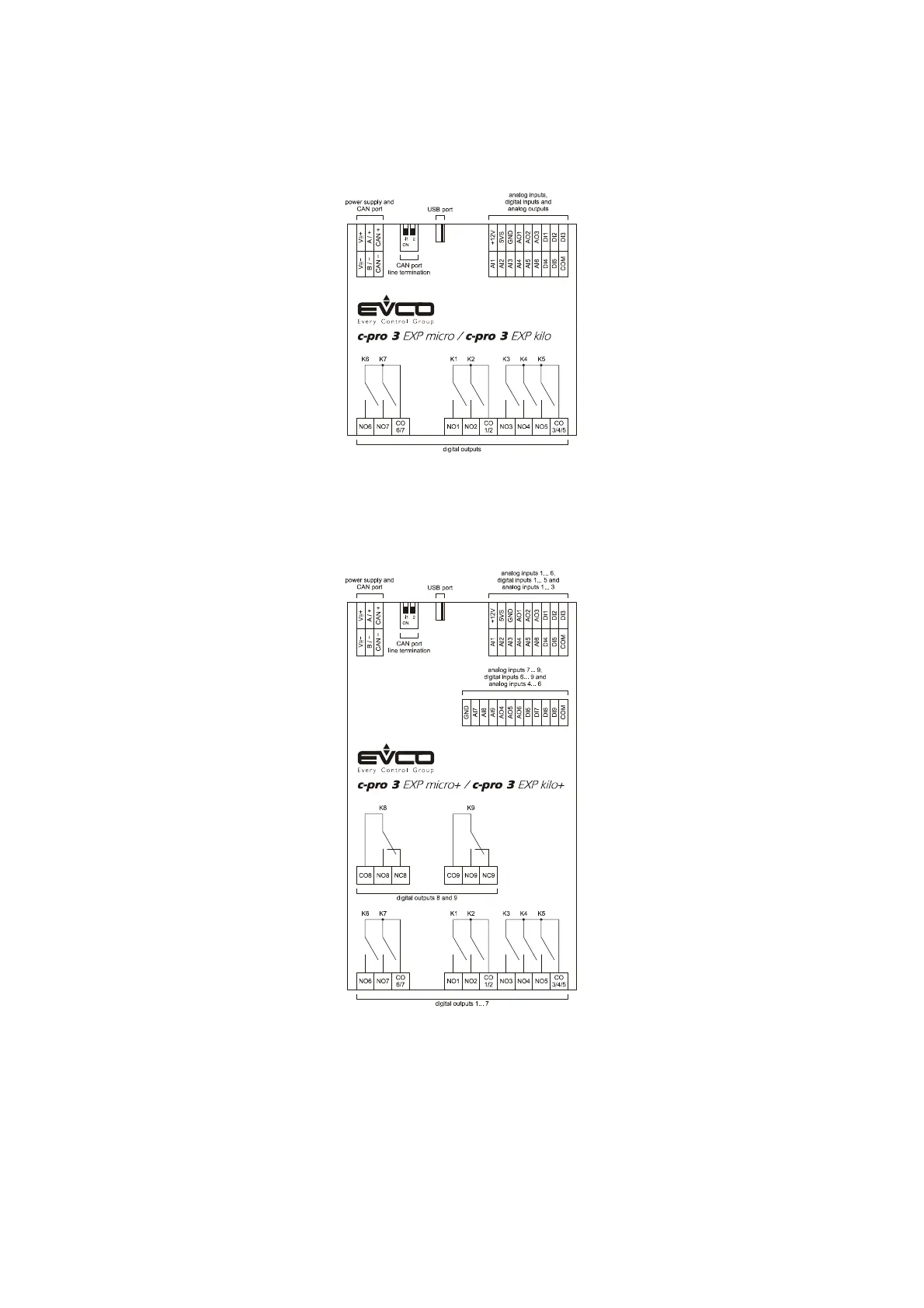

The following drawing shows the connectors of c-pro 3 EXP micro and of c-pro 3 EXP kilo.
The following drawing shows the connectors of c-pro 3 EXP micro+ and of c-pro 3 EXP kilo+.
Models with 9 electromechanical relays
