EVCO S.p.A.
c-pro 3
micro
and
c-pro 3
kilo
| Hardware manual ve
r. 1.0 | Code 114CP3UKE104
page 51 of 62

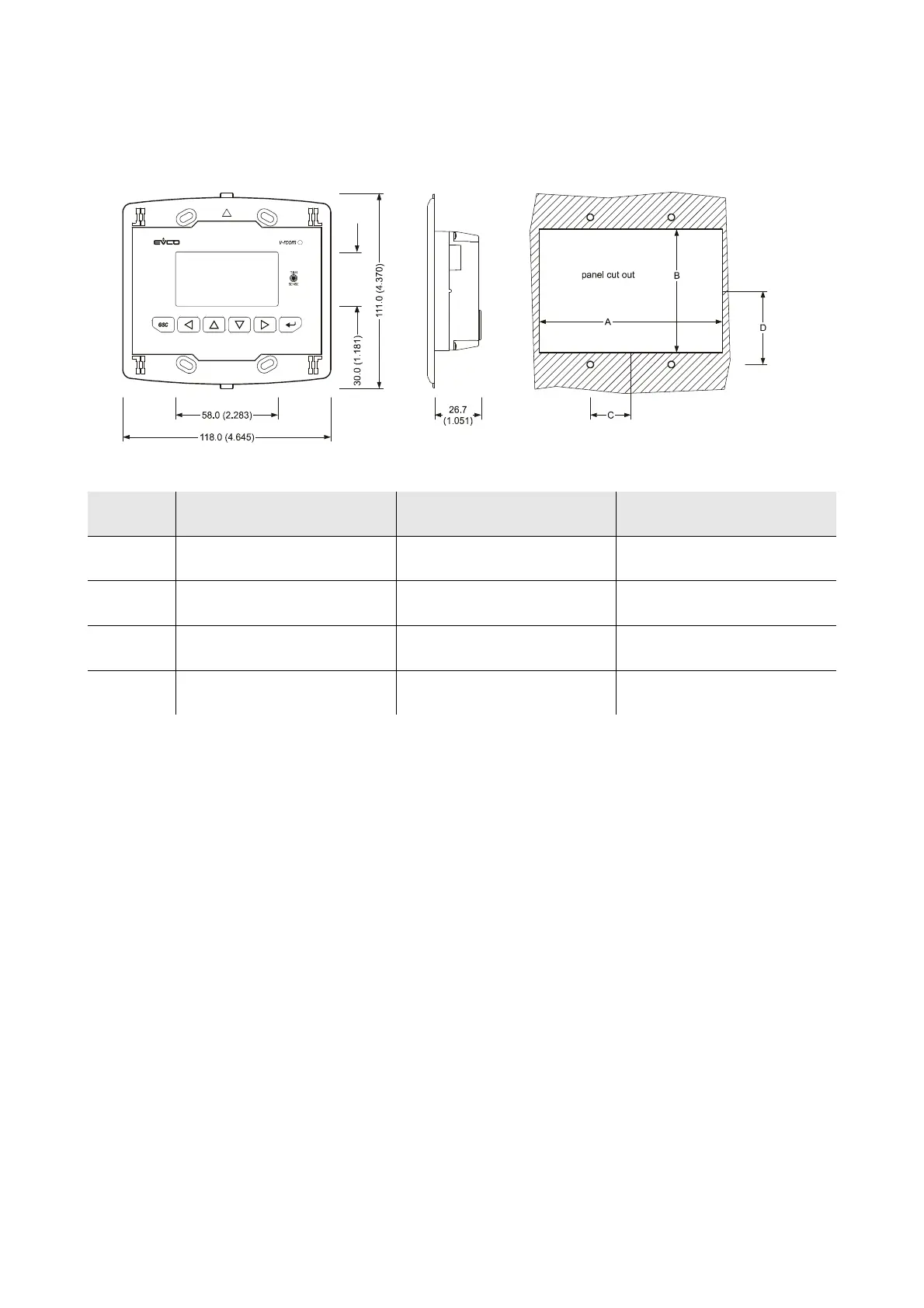

7.4.3.
Size
Size in mm (in).
Size
Minimum
Typical
Maximum
A
104.0 (4.094)
104.0 (4.094)
104.8 (4.125)
B
70.0 (2.755)
70.0 (2.755)
70.8 (2.787)
C
22
.0 (0.866)
23.0 (0.905)
24.0 (0.944)
D
40
.8 (1.606)
41.8 (1.645)
42.8 (1.685)
50
52
Table of Contents
Table of Contents
4
Introduction
5
Description
6
Description Programmable Controllers
6
Description I/O Expansions
8
Size and Installation
9
Size Programmable Controllers
9
Size I/O Expansions
9
Installation
10
Additional Information for Installation
10
Electrical Connection
11
Connectors Programmable Controllers
11
Connectors I/O Expansions
13
Meaning of Connectors
15
Example of Electrical Connection
23
Additional Information for Electrical Connection
24
User Interface
25
Keyboard
25
Signalling Leds
25
Leds at the Front of the Device
25
Configuration
27
Configuring a Programmable Controller
27
Configuring a Built-In Programmable Controller
27
Configuring a Blind Programmable Controller
29
Configuring an I / O Expansion
30
Configuring a Device through an User Interface (Vgraph, Vtouch, Vroom or Vcolor)
31
List of Configuration Parameters
32
User Interfaces
46
Preliminary Information
46
Vgraph
46
Introduction
46
Summarizing Table of the Main Features and Available Models
46
Size
47
Vtouch
48
Introduction
48
Summarizing Table of the Main Features and Available Models
48
Size
49
Vroom
50
Introduction
50
Summarizing Table of the Main Features and Available Models
50
Size
51
Vcolor
52
Introduction
52
Summarizing Table of the Main Features and Available Models
52
Size
53
Technical Data
54
