2. DESCRIPTION
2.1. Description programmable controllers

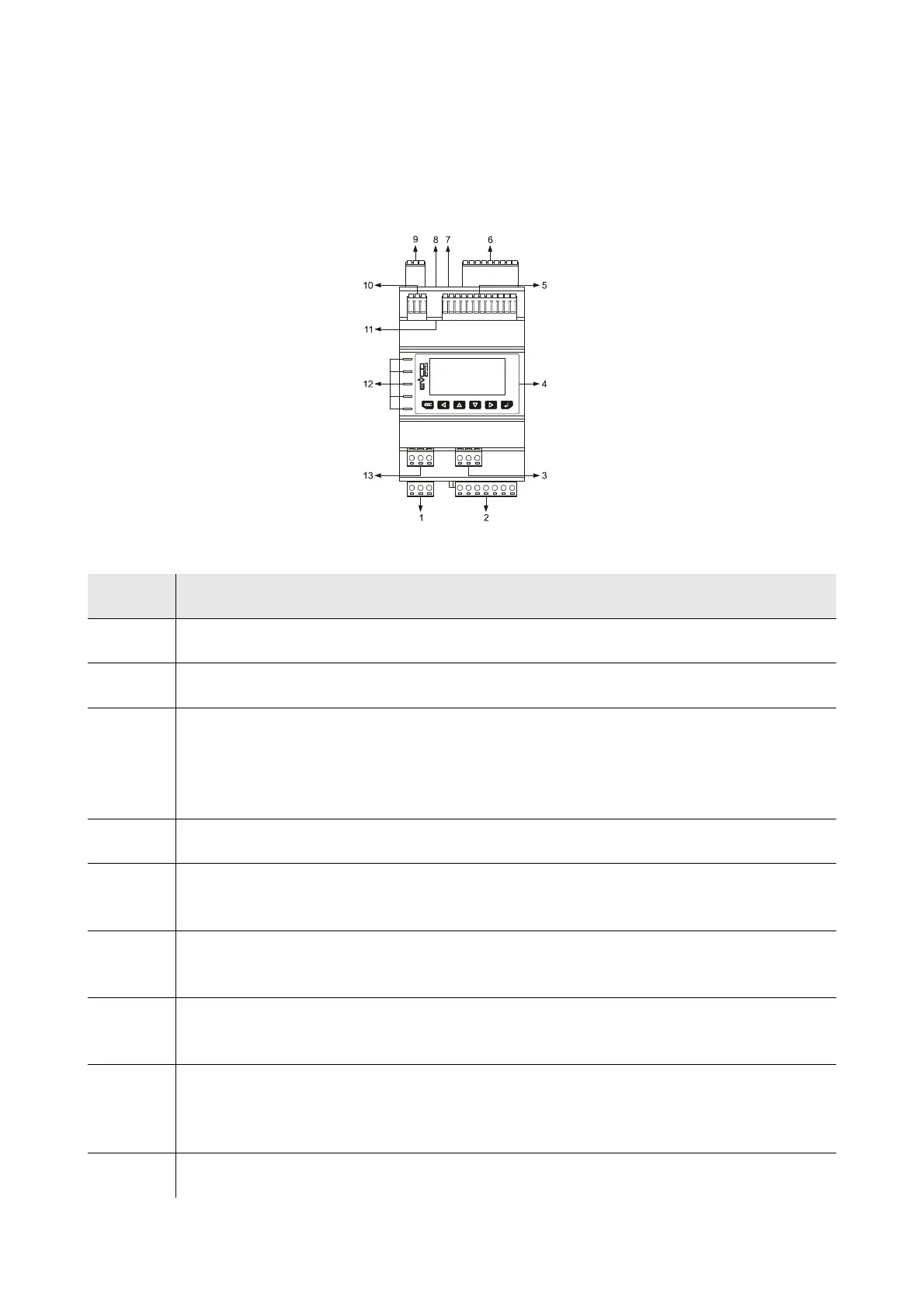

The following drawing shows the aspect of the programmable controllers.
The following table shows the meaning of the parts of the controller.
Part Meaning
1 digital outputs 6 and 7
2 digital outputs 1 and 5
3
according to the model:
- digital outputs 9 (available in models c-pro 3 micro+ and c-pro 3 kilo+ only)
- unipolar stepper electronic expansion valves driver (available in models c-pro 3 micro+ and c-pro 3 kilo+
only)
4 display and keyboard (not available in the blind versions)
5
analog inputs 7... 9, digital inputs 6... 9 and analog outputs 4... 6 (available in models c-pro 3 micro+ and c-pro 3
kilo+ only)
6 analog inputs 1... 6, digital inputs 1... 5 and analog outputs 1... 3
7 OTG USB port
8
micro-switch to:
- plug in the termination of the RS-485 port with Modbus slave communication protocol
- plug in the termination of the CAN port
9 power supply, RS-485 port with Modbus master communication protocol and CAN port
