EV-97 Eurostar SL Microlight Maintenance Manual GEN/EUR/04 Issue 4 46

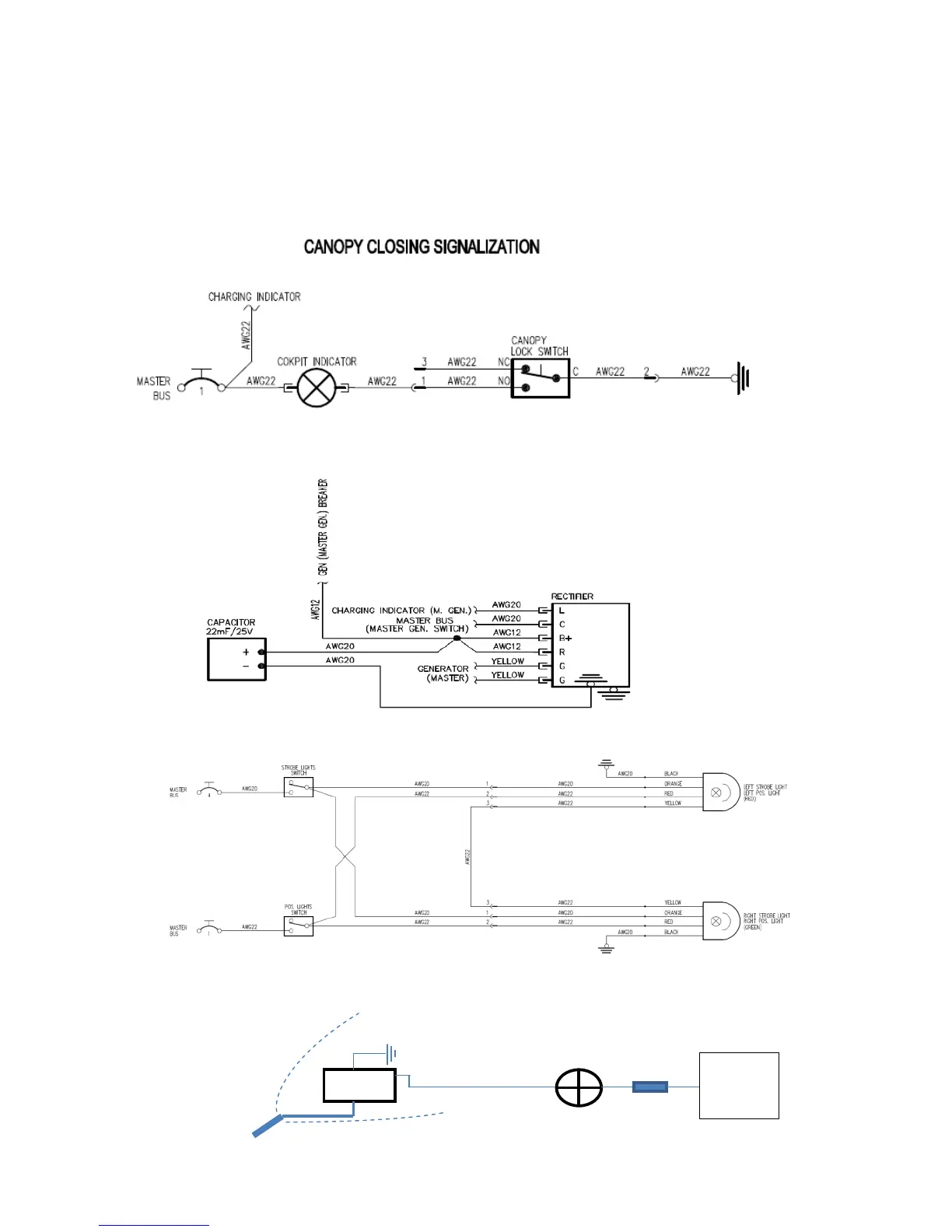

Appendix 5 – Electrical Circuit Diagrams
The following circuits are installed as standard in the Eurostar SL. Additional circuits, or
amendments to those shown, may be installed depending on options selected.
Canopy Closed Indicator
Regulator-Rectifier
Whelen Strobe and Position Lights
Stall Warner
