Seat Pad
Harness Straps
Harness Adjuster
Harness Adjuster Strap
Belt Positioners
Harness Strap
Slots
Crotch Strap
and Buckle
*Armrest
Chest Clip
*Armrest
*Not available on all models.
Headrests
Headrest in front of child must
be in the lowest position.
Your vehicle may appear significantly different than pictured.
Consult your vehicle Owner’s Manual to help identify your vehicle
components.
Air Bag
Do not place your child
restraint by any active frontal
air bags. Consult your vehicle
owner’s manual for
airbag locations.
Front Seat Lap
and Shoulder Belts
Back Seat
Belt Buckles
Center Lap
Belt
Tether Anchors
Back Seat
Retractor
Front Seat Retractor
Seat Crease
Lap/Shoulder Belt
LATCH
Anchors
Consult your vehicle
owner’s manual to determine
proper placement of child restraint
in your vehicle and familiarize
yourself with your vehicle’s
components.
Important

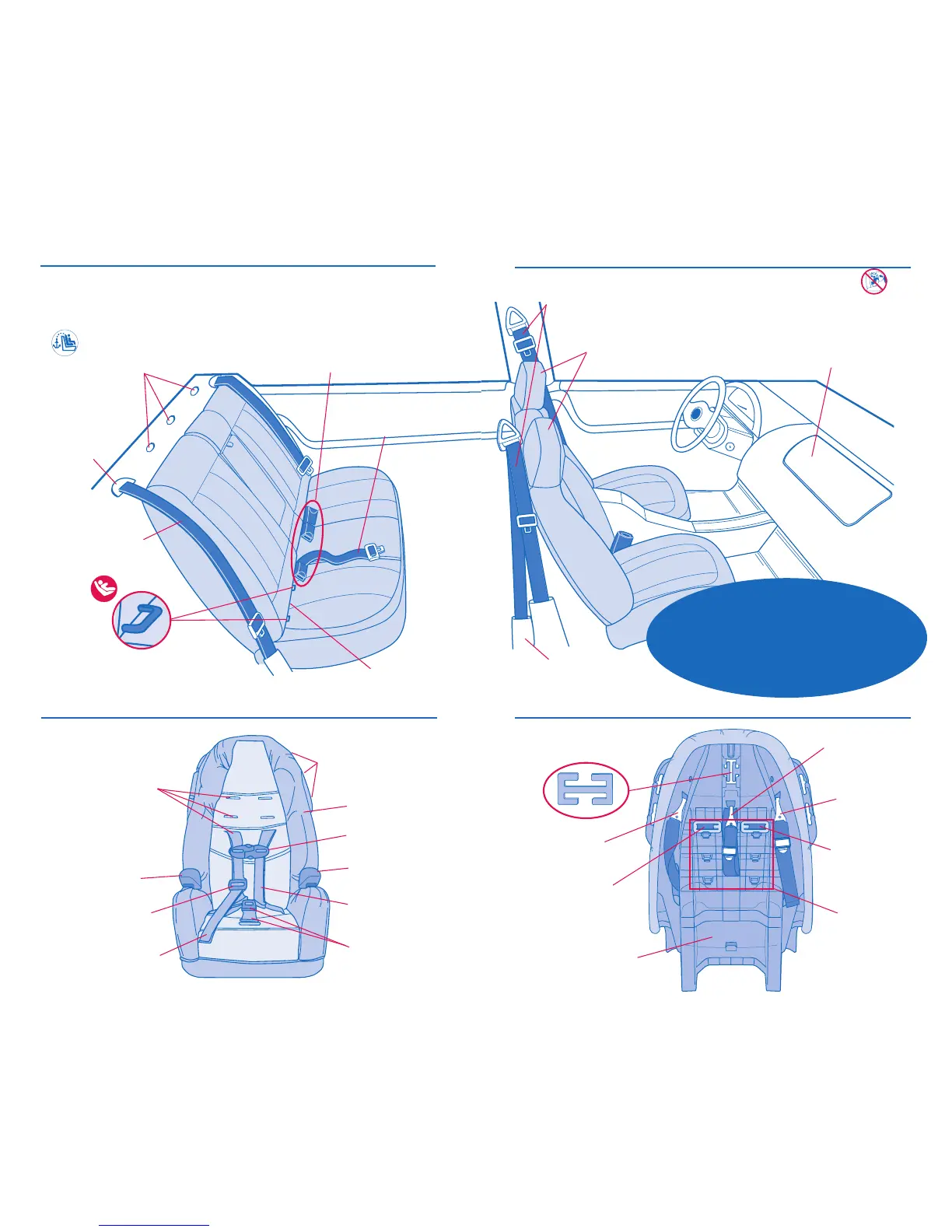

Know Your Vehicle
Front View
Know Your Child Restraint
9
8
Instruction Book
Storage Area
Locking Clip
Harness
Strap Slots
Harness
Anchor
Tether Strap
Harness
Anchor
Back View
LATCH
Hook
LATCH
Hook
