Pull the seat pad off of the
front of the child restraint.
Route the vehicle belt
through the rear-facing belt
path and continue through
the opposite belt path on
the child restraint. Fasten the
buckle.
IMPORTANT: The crotch
buckle must be in the inner
slot and the vehicle belt must
be located in front of the
crotch buckle strap.
Reconnect the seat pad to the
front of the child restraint.
The vehicle seat belt
must be as tight as
possible. Using your full
weight, push the child
restraint firmly into the
vehicle seat as you tighten
the seat belt, as shown.
Insert the shoulder belt
into the rear-facing
lock-off on the side of
the restraint opposite
the seat belt buckle.
Holding the seat shell,
pull shoulder belt firmly
in the directon of the
retractor. The shoulder belt
MUST be routed through
the lock-off. If vehicle
permits, the retractor must
be locked (pg. 12).
Check your work. Make certain the belt is tight and
locked. If you can move the child restraint more than 2.5
cm (1 in.) side to side or front to back at the rear-facing belt
path, the vehicle belt is not tight enough.
Recheck level line (pg. 32). If you have not tightly
secured the child restraint, try again, move it to another
location, or install with the lower anchor connector
assembly (pg. 28).
To remove seat, unbuckle vehicle seat belt.
CLICK!
Inner
slot
Rear-facing
belt path

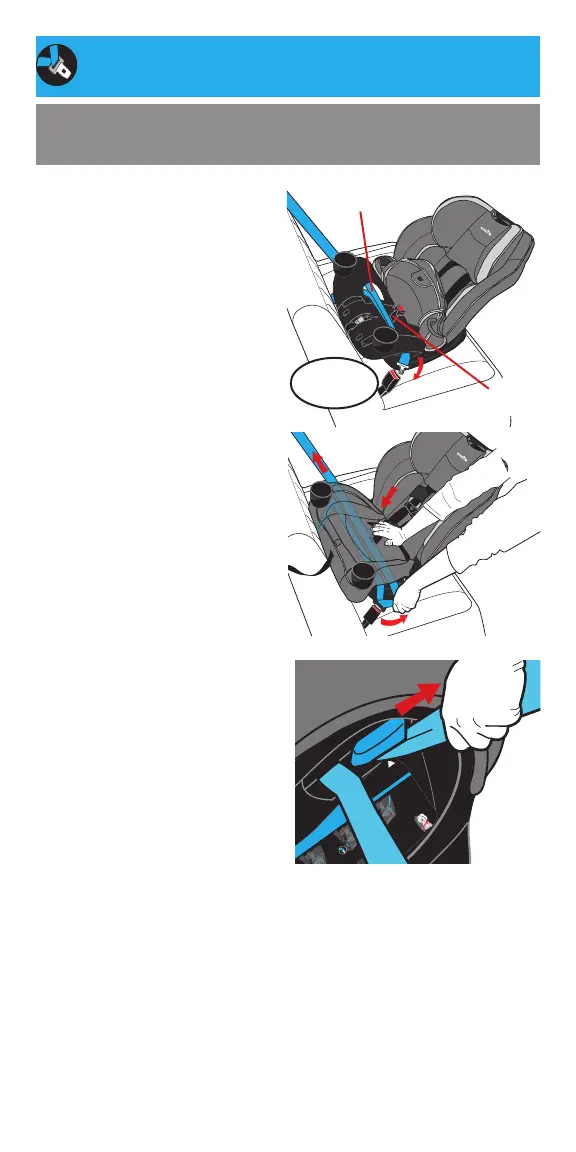

Rear-facing Installation with Vehicle
Seat Belts
Rear-facing Installation with
Lap/Shoulder Belt
Shoulder
straps must
be at or just
below child’s
shoulders
1,8 - 18,1 kg (4 - 40 lbs)
43 - 102 cm (17 - 40 in)
MUST be level with
ground with Rear Facing
installations
REAR FACING LINE
Top of head
MUST be 2.5 cm
(1 in.) or more
below top of
headrest or shell
Chest clip
25808432 8/19
Lap Shoulder Belt
LATCH / UAS
Lap Belt
Route shoulder belt
only through lock off.
See user manual for
additional information.
LOCK OFF
REAR FACING
BELT PATH
